RX63

Toyota CHASER · 1980 · 4,583 parts · 171 categories
RX63 ×

← Back to categories

4,583 items

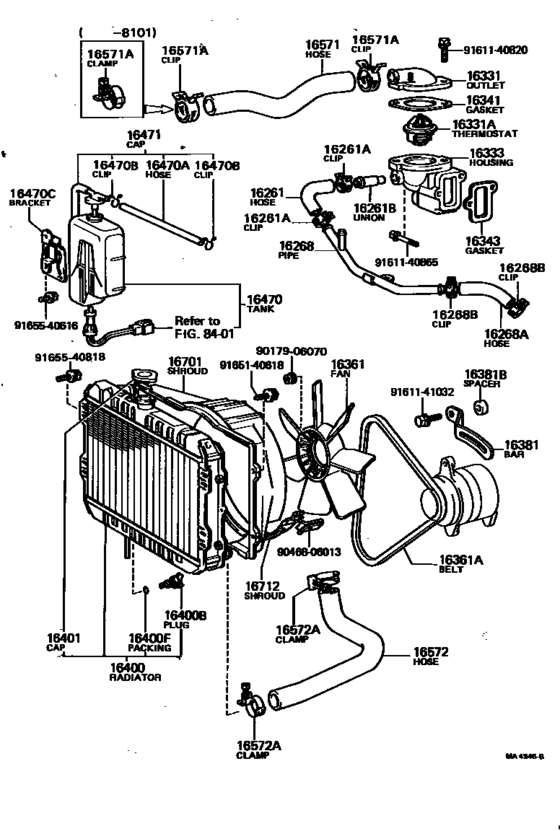

Radiator & Water Outlet ([09.1980 - 08.1982] (8009-8208)18RGEU) 53
#OEMPart name
16261 16261-88271 Hose, Water By-Pass
16261 90467-20134 Clip(For Ventilation Hose No.2)
16261 90406-14002 Union(For Positive Crankcase Ventilation)
16268 16268-88273 Pipe, Water By-Pass, No.1
16268 16261-88210 Hose(For Water By-Pass Pipe)
16331 16331-88270 Outlet, Water
16331 90916-03036 Thermostat
16331 90916-03078 Thermostat
16333 16333-88271 Housing, Water Outlet
16341 16341-88260 Gasket, Water Outlet
16341 16341-88281 Gasket, Water Outlet
16343 16343-88210 Gasket, Water Outlet Housing
16343 16343-88271 Gasket, Water Outlet Housing
16361 16361-34030 Fan
16361 99321-00850 Belt, V(For Fan & Alternator)
16381 16381-34030 Bar, Fan Belt Adjusting
16381 90560-10005 Spacer, Fan Belt Adjusting Bar
16400 16400-37070 Radiator Assy
16400 16400-37130 Radiator Assy
16400 90910-09054 Plug, Radiator Drain Cock
16400 96710-01007 Packing(For Radiator Drain Cock)
16400 96711-19007 Packing(For Radiator Drain Cock)
16401 16401-36011 Cap Sub-Assy, Radiator
16470 16480-70020 Tank Assy, Radiator Reserve
16470 90445-12063 Hose Or Pipe(For Radiator Reserve Tank) - BREATHER
16470 90445-12078 Hose(For Radiator Breather)
16470 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
16470 16402-18010 Bracket(For Radiator Reserve Tank)
16471 16405-18010 Cap Sub-Assy, Reserve Tank
16471 16405-52011 Cap Sub-Assy, Reserve Tank
16571 16571-34120 Hose, Radiator, Inlet
16571 90467-37001 Clip(For Water Inlet Hose)
16571 90467-37003 Clamp Or Clip, Hose(For Radiator Inlet)
16571 96111-10430 Clamp Or Clip, Hose(For Radiator Inlet)
16572 16572-34070 Hose, Radiator, Outlet
16572 90460-49062 Clamp Or Clip, Hose(For Radiator Inlet)
16572 96111-10490 Clamp Or Clip, Sub Radiator Hose
16572 96111-10460 Clamp Or Clip, Hose(For Radiator Inlet)
16701 16711-34100 Shroud Sub-Assy, Fan
16712 16712-34070 Shroud, Fan, No.2
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1
9046806013 90468-06013 Clip(For Fan Shroud)
9161140820 91611-40820 Bolt(For Intake Manifold To Exhaust Manifold)
9161140865 91611-40865 Bolt(For Rocker Support Set)
9161140865 91611-60865 Bolt(For Rocker Support Set)
9161141032 91611-41032 New Genuine Part
9161141032 91612-61032 New Genuine Part
9165140618 91651-40618 New Genuine Part
9165540616 91655-40616 Bolt
9165540616 91651-60614 Bolt
9165540818 91655-40818 New Genuine Part
9165540818 91651-60816 BOLT
