RX63

Toyota CHASER · 1980 · 4,583 parts · 171 categories
RX63 ×

← Back to categories

4,583 items

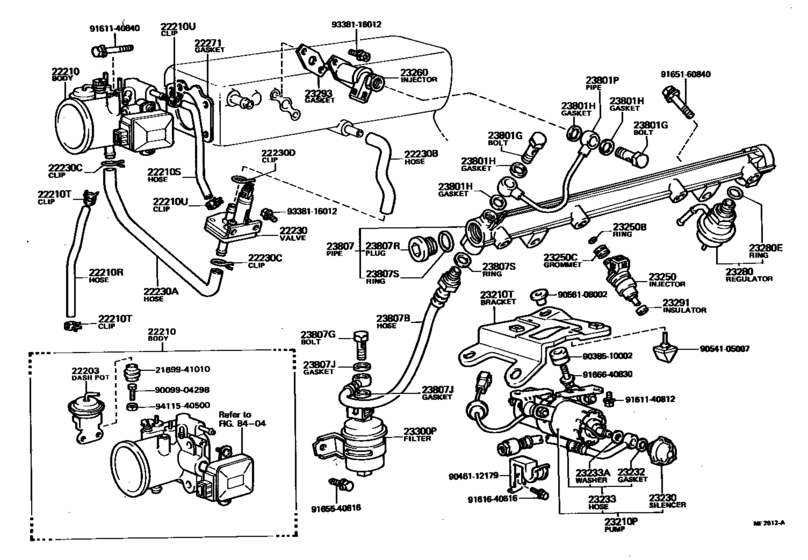

Fuel Injection System ([09.1980 - 08.1982] (8009-8208)18RGEU) 63
#OEMPart name
22203 22203-34010 Dash Pot Sub-Assy(For Throttle Body)
22210 22210-34070 Body Assy, Throttle
22210 22232-88271 Hose, Throttle Body, No.1
22210 22231-88270 Hose, Throttle Body, No.2
22210 90467-13001 Clamp Or Clip, Hose(For Water By-Pass Hose)
22210 96135-51300 Clamp, Hose
22230 22230-34031 Valve Assy, Auxiliary Air
22230 22233-88270 Hose, Auxiliary Air Valve, No.1
22230 22234-88270 Hose, Auxiliary Air Valve, No.2
22230 90467-20020 Clip Or Clamp(For Ventilation Hose)
22230 90467-21152 Clip Or Clamp(For Ventilation Hose)
22271 22271-88270 Gasket, Throttle Body
23210 23210-45030 Pump Assy, Fuel W/motor & Bracket
23210 23206-45030 Bracket, Fuel Pump
23230 23230-26080 Silencer Assy
23232 23232-26080 Gasket(For Fuel Pump Hose)
23232 23232-41081 Gasket(For Fuel Pump Hose)
23233 90999-99066 Hose, Fuel Pump
23233 90999-99097 Hose, Fuel Pump
23233 90099-01012 Washer(For Fuel Pump Hose)
23233 90099-01496 Washer(For Fuel Pump Hose)
23250 23250-34030 Injector Assy, Fuel
23250 90301-07001 Ring, O(For Fuel Injector)
23250 90480-13005 Grommet(For Fuel Injector)
23260 23260-34040 Injector Assy, Cold Start Fuel
23260 23260-39046 Injector Assy, Cold Start Fuel
23280 23280-26020 Regulator Assy, Fuel Pressure
23280 90301-15001 Ring, O(For Fuel Pressure Regulator)
23291 23291-41010 Insulator, Injector Vibration
23293 23293-34020 Gasket, Cold Start Injector
23293 23293-43020 Gasket, Cold Start Injector
23300 23300-34110 Filter, Fuel(For Efi)
23300 23300-39015 Filter, Fuel(For Efi)
23801 90401-10008 Bolt, Union
23801 90099-01459 Gasket
23801 23801-88270 Pipe Sub-Assy, Fuel, No.1
23807 23807-88271 Pipe Sub-Assy, Fuel Delivery
23807 90923-01215 Hose, Fuel Delivery Pipe
23807 90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)
23807 90430-12005 Gasket(For Water Hole)
23807 90072-34110 Plug, Fuel Delivary Pipe
23807 90341-24002 Plug, W/head Straight Screw, No.1
23807 90072-30117 Ring, O(For Fuel Delivary Pipe)
23807 90301-11003 Ring, O
2169941010 21699-41010 Boot(For Dash Pot)
9009904298 90099-04298 New Genuine Part
9038510002 90385-10002 Bush(For Brake Traction Actuator Bracket)
9046112179 90461-12179 New Genuine Part
9054105007 90541-05007 New Genuine Part
9056108002 90561-08002 Spacer(For Brake Traction Actuator Bracket)
9161140812 91611-40812 Bolt(for Drive Plate & Torque Converter Setting)
9161140812 91611-B0812 Bolt
9161140840 91611-40840 New Genuine Part
9161140840 91611-60840 BOLT
9161640616 91616-40616 Screw Or Bolt(for Valve Rocker Shaft Lock)
9161640616 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
9165160840 91651-60840 BOLT
9165540616 91655-40616 Bolt
9165540616 91651-60614 Bolt
9166640830 91666-40830 New Genuine Part
9166640830 91661-60830 Bolt
9338116012 93381-16012 Screw
9411540500 94115-40500 Nut(For Lpg Filter Stud Bolt Set)
