Search › Model › RX62

RX62

Toyota CRESSIDA-CRESSIDA-WAGON · 1981 · 3,692 parts · 157 categories

3,692 items

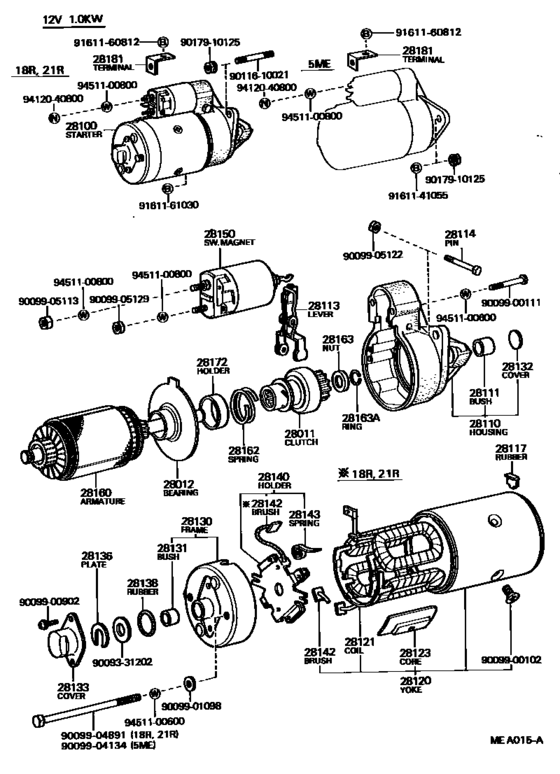

Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME) 56

#	OEM	Part name
28011	28011-41020	Clutch Sub-Assy, Starter
28012	28126-33021	Bearing Sub-Assy, Center
28012	28126-33020	Bearing Sub-Assy, Center
28100	28100-34070	Starter Assy
28100	28100-35110	Starter Assy
28110	28110-40061	Housing Assy, Starter Drive
28111	28111-51011	Bush(For Starter Housing)
28113	28113-41011	Lever, Starter Pinion Drive
28114	28114-41011	Pin, Starter Drive Lever Set
28117	28117-41020	Rubber(For Starter Yoke)
28120	28120-34070	Yoke Assy, Starter
28121	28121-42020	Coil, Starter Field
28121	28121-34070	Coil, Starter Field
28123	28123-41020	Core, Starter Pole
28130	28130-41020	Frame Assy, Starter Commutator End
28131	28131-20010	Bush, Commutator End Frame
28131	90099-10039	Bush, Commutator End Frame
28131	90099-10040	Bush, Commutator End Frame
28132	28166-41011	Cover, Starter Bearing(For Drive Housing)
28133	28132-40010	Cover, Bearing(For End Frame)
28136	28136-40010	Plate, Starter Lock
28138	28138-40010	Rubber(For Starter Bearing Cover)
28138	28138-26030	Rubber(For Starter Bearing Cover)
28140	28140-25020	Holder Assy, Starter Brush
28142	28142-25011	Brush, Starter
28142	28142-25020	Brush, Starter
28143	28143-40040	Spring, Starter Brush
28150	28150-34070	Switch Assy, Magnet Starter
28160	28160-41020	Armature Assy, Starter
28162	28162-41022	Spring, Starter Brake
28163	28163-40011	Nut Or Collar, Pinion Stop, Starter
28163	90099-07047	Ring, Snap(For Starter Pinion Stop Nut)
28172	28172-41021	Holder, Starter Spring
28181	28181-20011	Terminal, Starter
9009331202	90093-31202	Washer, No.2(For Governor Shaft Thrust)
9009900102	90099-00102	New Genuine Part
9009900111	90099-00111	New Genuine Part
9009900902	90099-00902	Screw, W/washer(For Bearing Cover Setting)
9009901098	90099-01098	New Genuine Part
9009904134	90099-04134	New Genuine Part
9009904891	90099-04891	New Genuine Part
9009905113	90099-05113	New Genuine Part
9009905122	90099-05122	New Genuine Part
9009905129	90099-05129	Nut (For Front Wiper Arm Setting)
9011610021	90116-10021	Bolt, Stud(For Manifold To Cylinder Head)
9017910125	90179-10125	Nut(For Counter Gear Shaft)
9017910125	90179-10132	Nut
9161141055	91611-41055	Bolt(For Clutch Release Cylinder Setting)
9161141055	91611-61055	Bolt(For Clutch Release Cylinder Setting)
9161160812	91611-60812	Bolt(For Drive Plate & Torque Converter Setting)
9161160812	91611-B0812	Bolt
9161161030	91611-61030	Bolt (For Transmission Control Cable Bracket)
9161161030	91612-61030	Bolt (For Transmission Control Cable Bracket)
9412040800	94120-40800	Nut(For Clutch Pedal Stopper)
9451100600	94511-00600	Washer, Lock, No.2
9451100800	94511-00800	WASHERSPRING

OEM	Part name	Category
28011-41020	Clutch Sub-Assy, Starter	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
28100-34070	Starter Assy	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
28100-35110	Starter Assy	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
28110-40061	Housing Assy, Starter Drive	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
28111-51011	Bush(For Starter Housing)	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
28113-41011	Lever, Starter Pinion Drive	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
28114-41011	Pin, Starter Drive Lever Set	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
28117-41020	Rubber(For Starter Yoke)	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
28120-34070	Yoke Assy, Starter	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
28121-34070	Coil, Starter Field	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
28121-42020	Coil, Starter Field	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
28123-41020	Core, Starter Pole	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
28126-33020	Bearing Sub-Assy, Center	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
28126-33021	Bearing Sub-Assy, Center	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
28130-41020	Frame Assy, Starter Commutator End	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
28131-20010	Bush, Commutator End Frame	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
28132-40010	Cover, Bearing(For End Frame)	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
28136-40010	Plate, Starter Lock	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
28138-26030	Rubber(For Starter Bearing Cover)	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
28138-40010	Rubber(For Starter Bearing Cover)	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
28140-25020	Holder Assy, Starter Brush	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
28142-25011	Brush, Starter	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
28142-25020	Brush, Starter	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
28143-40040	Spring, Starter Brush	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
28150-34070	Switch Assy, Magnet Starter	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
28160-41020	Armature Assy, Starter	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
28162-41022	Spring, Starter Brake	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
28163-40011	Nut Or Collar, Pinion Stop, Starter	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
28166-41011	Cover, Starter Bearing(For Drive Housing)	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
28172-41021	Holder, Starter Spring	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
28181-20011	Terminal, Starter	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
90093-31202	Washer, No.2(For Governor Shaft Thrust)	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
90099-00102	New Genuine Part	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
90099-00111	New Genuine Part	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
90099-00902	Screw, W/washer(For Bearing Cover Setting)	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
90099-01098	New Genuine Part	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
90099-04134	New Genuine Part	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
90099-04891	New Genuine Part	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
90099-05113	New Genuine Part	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
90099-05122	New Genuine Part	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
90099-05129	Nut (For Front Wiper Arm Setting)	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
90099-07047	Ring, Snap(For Starter Pinion Stop Nut)	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
90099-10039	Bush, Commutator End Frame	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
90099-10040	Bush, Commutator End Frame	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
90116-10021	Bolt, Stud(For Manifold To Cylinder Head)	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
90179-10125	Nut(For Counter Gear Shaft)	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
90179-10132	Nut	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
91611-41055	Bolt(For Clutch Release Cylinder Setting)	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
91611-60812	Bolt(For Drive Plate & Torque Converter Setting)	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
91611-61030	Bolt (For Transmission Control Cable Bracket)	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
91611-61055	Bolt(For Clutch Release Cylinder Setting)	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
91611-B0812	Bolt	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
91612-61030	Bolt (For Transmission Control Cable Bracket)	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
94120-40800	Nut(For Clutch Pedal Stopper)	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
94511-00600	Washer, Lock, No.2	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)
94511-00800	WASHERSPRING	Starter ([09.1980 - 08.1983] (8009-8308)21R,18R,5ME)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 157
Collected: 2026-08-02
