Search › Model › RX62

RX62

Toyota CRESSIDA-CRESSIDA-WAGON · 1981 · 3,692 parts · 157 categories

3,692 items

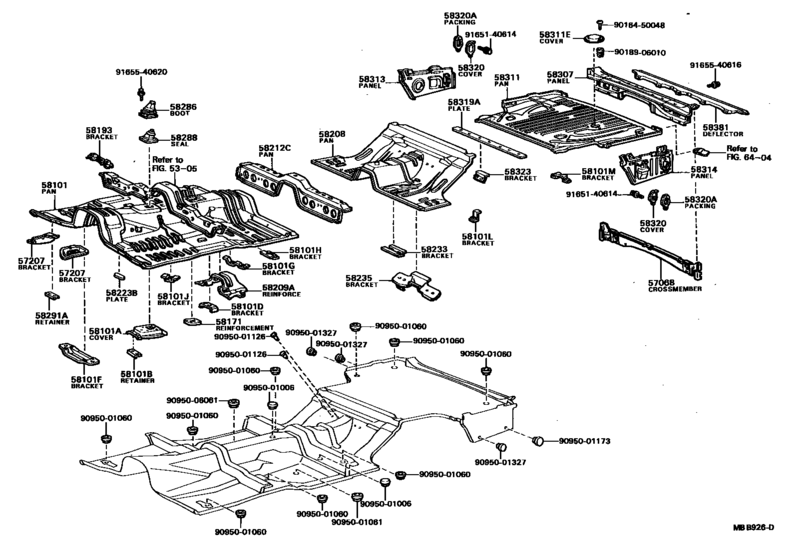

Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG) 54

#	OEM	Part name
57068	57068-91602	Member Sub-Assy, Rear Floor Rear Cross, Inner
57207	57207-22021	Bracket Sub-Assy, Engine Rear Mounting Member
58101	58111-22070	Pan Sub-Assy, Front Floor
58101	58111-22100	Pan Sub-Assy, Front Floor
58101	58261-22130	Cover, Transmission Auxiliary
58101	58261-22140	Cover, Transmission Auxiliary
58101	58207-22040	Bracket, Parking Brake Cable Guide
58101	58132-22021	Bracket, Mounting, Floor, No.2
58101	58133-22020	Bracket, Mounting, Floor, No.3
58101	58236-14010	Bracket, Mounting, Floor, No.1
58101	58345-91601	Bracket, Mounting, Floor, No.6
58101	58346-20070	Bracket, Mounting, Floor, No.7
58101	58261-22090	Cover, Transmission Auxiliary
58171	58171-22030	Reinforcement, Parking Brake Base
58193	58193-22010	Bracket, Instrument Panel Brace Mounting
58208	58211-91602	Pan, Center Floor
58209	58209-22020	Reinforcement Sub-Assy, Drive Shaft Center Support
58212	58202-91600	Pan, Center Floor, Front
58223	58223-20020	Plate, Accelerator Pedal
58233	58233-22011	Bracket, Exhaust Pipe Mounting
58235	58205-91601	Bracket, Differential Carrier Bumper Mounting
58286	58280-22060	Boot, Shift & Select Lever, No.1
58286	58280-22061	Boot, Shift & Select Lever, No.1
58288	58288-22021	Seal, Shift Lever Boot
58291	58291-22040	Retainer, Accelerator Pedal
58307	58307-22903	Panel Sub-Assy, Body Lower Back
58307	58307-91613	Panel Sub-Assy, Body Lower Back
58311	58311-91607	Pan, Rear Floor
58311	77029-91600	Cover, Rear Floor Service Hole
58313	58305-91603	Panel, Rear Floor Side, Rh
58314	58306-91603	Panel, Rear Floor Side, Lh
58319	58319-91603	Plate, Rear Floor Panel, Front
58320	58331-91602	Cover, Rear Floor Service Hole
58320	58332-91602	Cover, Rear Floor Service Hole
58320	58335-91602	Packing, Rear Floor Service Hole
58323	58321-91602	Bracket Sub-Assy, Inlet Tube Protector
58381	59211-91602	Deflector, Rear Bumper Stone
9016450048	90164-50048	SCREW
9018906010	90189-06010	Clip(For Front Door Inside Handle)
9095001006	90950-01006	Plug, Hole(For Front Fender)
9095001060	90950-01060	Plug, Hole, No.1(For Dash Panel)
9095001060	90950-01866	Plug, Hole(For Front Door Panel)
9095001061	90950-01061	Plug, Hole, No.3(For Dash Panel)
9095001061	90950-01872	Plug, Hole, No.3(For Dash Panel)
9095001126	90950-01126	Grommet, Safety Band Anchorage Nut
9095001173	90950-01173	New Genuine Part
9095001173	90950-01684	PLUG HOLE
9095001327	90950-01327	Plug, Hole(For Front Fender Apron)
9095006061	90950-06061	New Genuine Part
9165140614	91651-40614	Bolt
9165540616	91655-40616	Bolt
9165540616	91651-60614	Bolt
9165540620	91655-40620	Bolt(For Oil Receiver Pipe)
9165540620	91651-60618	Bolt(For Oil Receiver Pipe)

OEM	Part name	Category
57068-91602	Member Sub-Assy, Rear Floor Rear Cross, Inner	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
57207-22021	Bracket Sub-Assy, Engine Rear Mounting Member	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58111-22070	Pan Sub-Assy, Front Floor	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58111-22100	Pan Sub-Assy, Front Floor	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58132-22021	Bracket, Mounting, Floor, No.2	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58133-22020	Bracket, Mounting, Floor, No.3	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58171-22030	Reinforcement, Parking Brake Base	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58193-22010	Bracket, Instrument Panel Brace Mounting	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58202-91600	Pan, Center Floor, Front	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58205-91601	Bracket, Differential Carrier Bumper Mounting	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58207-22040	Bracket, Parking Brake Cable Guide	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58209-22020	Reinforcement Sub-Assy, Drive Shaft Center Support	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58211-91602	Pan, Center Floor	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58223-20020	Plate, Accelerator Pedal	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58233-22011	Bracket, Exhaust Pipe Mounting	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58236-14010	Bracket, Mounting, Floor, No.1	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58261-22090	Cover, Transmission Auxiliary	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58261-22130	Cover, Transmission Auxiliary	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58261-22140	Cover, Transmission Auxiliary	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58280-22060	Boot, Shift & Select Lever, No.1	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58280-22061	Boot, Shift & Select Lever, No.1	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58288-22021	Seal, Shift Lever Boot	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58291-22040	Retainer, Accelerator Pedal	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58305-91603	Panel, Rear Floor Side, Rh	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58306-91603	Panel, Rear Floor Side, Lh	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58307-22903	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58307-91613	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58311-91607	Pan, Rear Floor	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58319-91603	Plate, Rear Floor Panel, Front	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58321-91602	Bracket Sub-Assy, Inlet Tube Protector	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58331-91602	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58332-91602	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58335-91602	Packing, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58345-91601	Bracket, Mounting, Floor, No.6	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
58346-20070	Bracket, Mounting, Floor, No.7	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
59211-91602	Deflector, Rear Bumper Stone	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
77029-91600	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
90164-50048	SCREW	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
90189-06010	Clip(For Front Door Inside Handle)	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
90950-01006	Plug, Hole(For Front Fender)	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
90950-01060	Plug, Hole, No.1(For Dash Panel)	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
90950-01061	Plug, Hole, No.3(For Dash Panel)	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
90950-01126	Grommet, Safety Band Anchorage Nut	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
90950-01173	New Genuine Part	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
90950-01327	Plug, Hole(For Front Fender Apron)	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
90950-01684	PLUG HOLE	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
90950-01866	Plug, Hole(For Front Door Panel)	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
90950-01872	Plug, Hole, No.3(For Dash Panel)	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
90950-06061	New Genuine Part	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
91651-40614	Bolt	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
91651-60614	Bolt	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
91651-60618	Bolt(For Oil Receiver Pipe)	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
91655-40616	Bolt	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
91655-40620	Bolt(For Oil Receiver Pipe)	Floor Pan & Lower Back Panel ([09.1980 - ] (8009- )WG)
