RX35

Toyota CRESSIDA-CRESSIDA-WAGON · 1976 · 4,048 parts · 154 categories

← Back to categories

4,048 items

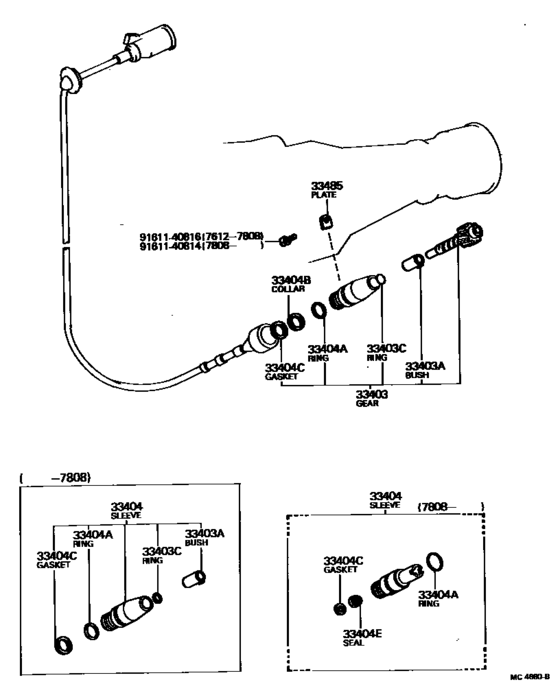

Speedometer Driven Gear (Mtm) ([12.1976 - 08.1980] (7612-8008)MTM) 16

#	OEM	Part name
33403	33403-69026	Gear Sub-Assy, Speedometer Driven (Mtm)
33403	90386-09078	Bush (For Manual Transmission Speedometer Shaft Sleeve)
33403	90301-09010	Ring, O (For Manual Transmission Speedometer Shaft) - O (FOR AUTOMATIC TRANSMISSION SPEEDOMETER SHAFT)
33403	90301-09017	Ring, O (For Manual Transmission Speedometer Shaft)
33404	33404-30040	Sleeve Sub-Assy, Speedometer Shaft (Mtm)
33404	33404-39016	Sleeve Sub-Assy, Speedometer Shaft (Mtm)
33404	90301-18018	Ring, O (For Atm Speedometer Driven Hole Cover)
33404	90201-07069	Collar, Speedometer Flexible Tube Shaft Gasket (Mtm)
33404	90303-06017	Gasket, Speedometer Flexible Tube Shaft (Mtm)
33404	90310-09001	Seal, Oil (For Mtm Speedometer Shaft Sleeve)
33485	33485-30010	Plate, Speedometer Sleeve Lock (Mtm)
33485	33485-30020	Plate, Speedometer Sleeve Lock (For Atm)
9161140814	91611-40814	Bolt(For Manual Transmission Oil Pan Setting)
9161140814	91611-60814	Bolt
9161140816	91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140816	91611-B0816	Bolt

OEM	Part name	Category
33403-69026	Gear Sub-Assy, Speedometer Driven (Mtm)	Speedometer Driven Gear (Mtm) ([12.1976 - 08.1980] (7612-8008)MTM)
33404-30040	Sleeve Sub-Assy, Speedometer Shaft (Mtm)	Speedometer Driven Gear (Mtm) ([12.1976 - 08.1980] (7612-8008)MTM)
33404-39016	Sleeve Sub-Assy, Speedometer Shaft (Mtm)	Speedometer Driven Gear (Mtm) ([12.1976 - 08.1980] (7612-8008)MTM)
33485-30010	Plate, Speedometer Sleeve Lock (Mtm)	Speedometer Driven Gear (Mtm) ([12.1976 - 08.1980] (7612-8008)MTM)
33485-30020	Plate, Speedometer Sleeve Lock (For Atm)	Speedometer Driven Gear (Mtm) ([12.1976 - 08.1980] (7612-8008)MTM)
90201-07069	Collar, Speedometer Flexible Tube Shaft Gasket (Mtm)	Speedometer Driven Gear (Mtm) ([12.1976 - 08.1980] (7612-8008)MTM)
90301-09010	Ring, O (For Manual Transmission Speedometer Shaft) - O (FOR AUTOMATIC TRANSMISSION SPEEDOMETER SHAFT)	Speedometer Driven Gear (Mtm) ([12.1976 - 08.1980] (7612-8008)MTM)
90301-09017	Ring, O (For Manual Transmission Speedometer Shaft)	Speedometer Driven Gear (Mtm) ([12.1976 - 08.1980] (7612-8008)MTM)
90301-18018	Ring, O (For Atm Speedometer Driven Hole Cover)	Speedometer Driven Gear (Mtm) ([12.1976 - 08.1980] (7612-8008)MTM)
90303-06017	Gasket, Speedometer Flexible Tube Shaft (Mtm)	Speedometer Driven Gear (Mtm) ([12.1976 - 08.1980] (7612-8008)MTM)
90310-09001	Seal, Oil (For Mtm Speedometer Shaft Sleeve)	Speedometer Driven Gear (Mtm) ([12.1976 - 08.1980] (7612-8008)MTM)
90386-09078	Bush (For Manual Transmission Speedometer Shaft Sleeve)	Speedometer Driven Gear (Mtm) ([12.1976 - 08.1980] (7612-8008)MTM)
91611-40814	Bolt(For Manual Transmission Oil Pan Setting)	Speedometer Driven Gear (Mtm) ([12.1976 - 08.1980] (7612-8008)MTM)
91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Speedometer Driven Gear (Mtm) ([12.1976 - 08.1980] (7612-8008)MTM)
91611-60814	Bolt	Speedometer Driven Gear (Mtm) ([12.1976 - 08.1980] (7612-8008)MTM)
91611-B0816	Bolt	Speedometer Driven Gear (Mtm) ([12.1976 - 08.1980] (7612-8008)MTM)
