Search › Model › RX35

RX35

Toyota CRESSIDA-CRESSIDA-WAGON · 1976 · 4,048 parts · 154 categories
RX35 ×

← Back to categories

4,048 items

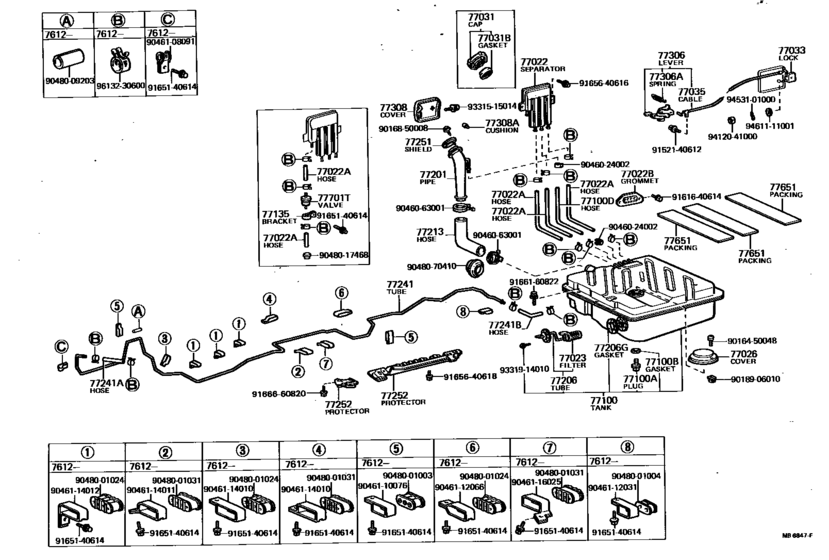

Fuel Tank & Tube ([12.1976 - 08.1980] (7612-8008)RX35) 115
#OEMPart name
77022 77271-13010 Separator Sub-Assy, Fuel Evaporative
77022 95331-06006 Hose, Fuel Pipe, No.1 - FUEL, NO.3(FOR FUEL EXPANSION TANK)
77022 95333-06010 Hose, Fuel
77022 95331-06010 Hose, Fuel, No.2 (For Main Tube, No.1) - FUEL, NO.1 (FOR MAIN TUBE, NO.2)
77022 95331-06050 Hose, Fuel(For Fuel Evaporative Separator)
77022 95332-06006 Hose, Fuel Tank Evaporation Vent
77022 95332-06010 Hose, Fuel Pipe, No.1
77022 95332-06050 Hose, Fuel(For Fuel Evaporative Separator)
77022 95333-06060 Hose, Fuel
77022 95332-06060 Hose, Fuel
77022 77290-91600 Grommet(For Fuel Evaporative Separator Fuel Hose)
77023 77023-12050 Filter Sub-Assy, Fuel Suction Tube
77026 77029-91600 Cover, Rear Floor Service Hole
77031 77310-12090 Cap Assy, Fuel Tank
77031 77310-12100 Cap Assy, Fuel Tank
77031 77310-14070 Cap Assy, Fuel Tank
77031 77310-30050 Cap Assy, Fuel Tank
77031 77316-12050 Gasket (For Fuel Tank Cap)
77031 77316-12060 Gasket (For Fuel Tank Cap)
77035 77035-91600 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-91617 Tank Assy, Fuel
77100 77001-91644 Tank Assy, Fuel
77100 77001-91618 Tank Assy, Fuel
77100 77001-91620 Tank Assy, Fuel
77100 90105-12018 Plug(For Fuel Tank)
77100 90430-12245 Gasket(For Fuel Tank)
77100 90445-22007 Hose, Fuel, No.1(For Fuel Tank)
77135 77135-91600 Bracket, Check Valve
77201 77201-91606 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-91608 Pipe Sub-Assy, Fuel Tank Inlet
77206 77017-91258 Tube Sub-Assy, Fuel And Evaporation Vent
77206 77017-91602 Tube Sub-Assy, Fuel And Evaporation Vent
77206 83361-14010 Gasket, Fuel Pump - FUEL SENDER GAGE
77206 83361-20030 Gasket, Fuel Tank Vent
77213 77213-91605 Hose, Fuel Tank Sub Inlet
77213 77213-91606 Hose, Fuel Tank Sub Inlet
77241 77251-91613 Tube, Fuel Main, No.1
77241 95331-06014 Hose, Fuel, No.2 (For Main Tube, No.1)
77241 95337-06020 Hose, Differential Pressure Control
77241 95332-06014 Hose, Fuel, No.2 (For Main Tube, No.1)
77241 95332-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77241 95331-06022 Hose, Fuel, No.2 (For Main Tube, No.2)
77241 95333-06030 Hose, Fuel
77241 95332-06022 Hose, Fuel
77241 95332-06024 Hose, Fuel(For Fuel Evaporative Separator)
77241 95332-06030 Hose(For Carburetor)
77251 77291-12010 Shield, Fuel Tank, Inlet, No.1
77252 77266-22030 Protector, Fuel Tube
77252 77267-22020 Protector, Fuel Tube, No.2
77306 77306-91600 Lever Sub-Assy, Fuel Lid Lock Open
77306 90506-09004 Spring, Tension(For Luggage Door Lock Open Lever)
77308 77350-91600 Cover Sub-Assy, Fuel Inlet Box
77308 77350-91601 Cover Sub-Assy, Fuel Inlet Box
77308 90541-03001 Cushion(For Fuel Inlet Box Cover)
77308 90541-08003 Cushion(For Inspection Opening)
77651 77651-21010 Packing, Fuel Tank Support, Upper - FUEL TANK BRACKET
77651 77651-91602 Cushion, Fuel Tank, No.1 - FUEL TANK BRACKET
77651 77651-91255 Cushion, Fuel Tank, No.1 - FUEL TANK BRACKET
77701 90917-10020 Valve, Check (For Main Fuel Tank)
9011906092 90119-06092 New Genuine Part
9011906092 90119-06699 BOLT WWASHER
9016450048 90164-50048 SCREW
9016850008 90168-50008 New Genuine Part
9018906010 90189-06010 Clip(For Front Door Inside Handle)
9046024002 90460-24002 New Genuine Part
9046024002 96112-20240 New Genuine Part
9046063001 90460-63001 New Genuine Part
9046106009 90461-06009 New Genuine Part
9046106488 90461-06488 New Genuine Part
9046108091 90461-08091 New Genuine Part
9046108198 90461-08198 New Genuine Part
9046110070 90461-10070 New Genuine Part
9046110076 90461-10076 New Genuine Part
9046112031 90461-12031 New Genuine Part
9046112066 90461-12066 New Genuine Part
9046112067 90461-12067 New Genuine Part
9046114010 90461-14010 New Genuine Part
9046114011 90461-14011 New Genuine Part
9046114012 90461-14012 New Genuine Part
9046116025 90461-16025 New Genuine Part
9046116026 90461-16026 New Genuine Part
9046315067 90463-15067 New Genuine Part
9048001003 90480-01003 New Genuine Part
9048001004 90480-01004 New Genuine Part
9048001023 90480-01023 New Genuine Part
9048001024 90480-01024 New Genuine Part
9048001031 90480-01031 New Genuine Part
9048001032 90480-01032 New Genuine Part
9048001039 90480-01039 New Genuine Part
9048009203 90480-09203 New Genuine Part
9048017468 90480-17468 New Genuine Part
9048070410 90480-70410 New Genuine Part
9061640614 90616-40614 New Genuine Part
9152140612 91521-40612 New Genuine Part
9152140612 91511-A0612 New Genuine Part
9161640614 91616-40614 Bolt(for Dust Cover To Steering Knuckle Arm Setting)
9161640614 91611-G0612 Bolt
9165140614 91651-40614 Bolt
9165640616 91656-40616 Bolt
9165640616 91651-60614 Bolt
9165640618 91656-40618 Bolt (For Rear Differential Breather Plug Oil Deflector)
9166160822 91661-60822 New Genuine Part
9166660820 91666-60820 New Genuine Part
9166660820 91661-60816 Bolt
9331515014 93315-15014 New Genuine Part
9331914010 93319-14010 SCREW
9338515014 93385-15014 Screw(For Steering Tilt Lever)
9412041000 94120-41000 Nut(For Clutch Pedal Stopper)
9412041000 90170-A0002 Nut
9453101000 94531-01000 WASHER
9461111001 94611-11001 Plate, Rear Seat Back Stopper
9613230600 96132-30600 Clip(For Actuator Hose)
9613230600 96132-51100 Clip (For Hose)
9613230800 96132-30800 Clip, No.3(For Idle-Up Hose)
9613230800 96132-51300 Clip(For Ventilation Hose No.2)
