Search › Model › RX30

RX30

Toyota CRESSIDA-CRESSIDA-WAGON · 1976 · 4,467 parts · 171 categories

4,467 items

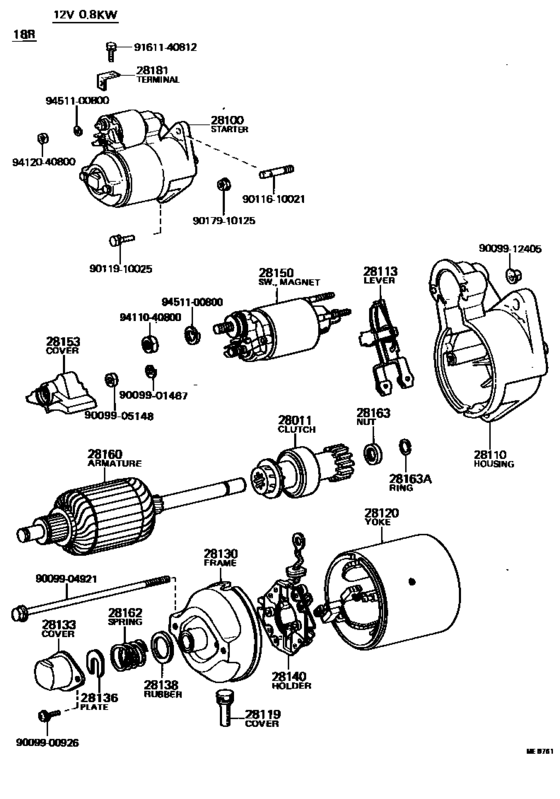

Starter ([12.1976 - 08.1980] (7612-8008)18R) 52

#	OEM	Part name
28011	28011-15010	Clutch Sub-Assy, Starter
28011	28011-41011	Clutch Sub-Assy, Starter
28100	28100-36070	Starter Assy
28100	28100-37011	Starter Assy
28100	28100-37010	Starter Assy
28110	28110-37010	Housing Assy, Starter Drive
28110	28110-40045	Housing Assy, Starter Drive
28113	28113-15011	Lever, Starter Pinion Drive
28113	28113-41011	Lever, Starter Pinion Drive
28119	28199-77090	Cover, Starter End Frame
28120	28120-15010	Yoke Assy, Starter
28120	28120-36040	Yoke Assy, Starter
28130	28130-21011	Frame Assy, Starter Commutator End
28130	28130-37010	Frame Assy, Starter Commutator End
28133	28132-15010	Cover, Starter Bearing(For Drive Housing)
28133	28132-15011	Cover, Bearing(For End Frame)
28133	28132-41011	Cover, Bearing(For End Frame)
28136	28136-15010	Plate, Starter Lock
28136	28136-41011	Plate, Starter Lock
28138	28138-15010	Rubber(For Starter Bearing Cover)
28138	28138-41011	Rubber(For Starter Bearing Cover)
28140	28140-15010	Holder Assy, Starter Brush
28140	28140-41012	Holder Assy, Starter Brush
28140	28140-41013	Holder Assy, Starter Brush
28150	28150-15011	Switch Assy, Magnet Starter
28150	28150-37011	Switch Assy, Magnet Starter
28150	28150-22011	Switch Assy, Magnet Starter
28153	28159-15010	Cover, Magnet Switch
28160	28160-15010	Armature Assy, Starter
28160	28160-40014	Armature Assy, Starter
28162	28162-15010	Spring, Starter Brake
28162	28162-41011	Spring, Starter Brake
28163	28163-40011	Nut Or Collar, Pinion Stop, Starter
28163	90099-07047	Ring, Snap(For Starter Pinion Stop Nut)
28181	28181-20010	Terminal, Starter
28181	28181-20011	Terminal, Starter
9009900926	90099-00926	New Genuine Part
9009901467	90099-01467	New Genuine Part
9009904921	90099-04921	New Genuine Part
9009905148	90099-05148	New Genuine Part
9009912405	90099-12405	New Genuine Part
9011610021	90116-10021	Bolt, Stud(For Manifold To Cylinder Head)
9011910025	90119-10025	Bolt (For Transmission Control Cable Bracket)
9011910025	91612-61030	Bolt (For Transmission Control Cable Bracket)
9017910125	90179-10125	Nut(For Counter Gear Shaft)
9017910125	90179-10132	Nut
9161140812	91611-40812	Bolt(for Drive Plate & Torque Converter Setting)
9161140812	91611-B0812	Bolt
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9412040800	94120-40800	Nut(For Clutch Pedal Stopper)
9451100800	94511-00800	WASHERSPRING

OEM	Part name	Category
28011-15010	Clutch Sub-Assy, Starter	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28011-41011	Clutch Sub-Assy, Starter	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28100-36070	Starter Assy	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28100-37010	Starter Assy	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28100-37011	Starter Assy	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28110-37010	Housing Assy, Starter Drive	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28110-40045	Housing Assy, Starter Drive	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28113-15011	Lever, Starter Pinion Drive	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28113-41011	Lever, Starter Pinion Drive	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28120-15010	Yoke Assy, Starter	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28120-36040	Yoke Assy, Starter	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28130-21011	Frame Assy, Starter Commutator End	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28130-37010	Frame Assy, Starter Commutator End	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28132-15010	Cover, Starter Bearing(For Drive Housing)	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28132-15011	Cover, Bearing(For End Frame)	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28132-41011	Cover, Bearing(For End Frame)	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28136-15010	Plate, Starter Lock	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28136-41011	Plate, Starter Lock	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28138-15010	Rubber(For Starter Bearing Cover)	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28138-41011	Rubber(For Starter Bearing Cover)	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28140-15010	Holder Assy, Starter Brush	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28140-41012	Holder Assy, Starter Brush	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28140-41013	Holder Assy, Starter Brush	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28150-15011	Switch Assy, Magnet Starter	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28150-22011	Switch Assy, Magnet Starter	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28150-37011	Switch Assy, Magnet Starter	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28159-15010	Cover, Magnet Switch	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28160-15010	Armature Assy, Starter	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28160-40014	Armature Assy, Starter	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28162-15010	Spring, Starter Brake	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28162-41011	Spring, Starter Brake	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28163-40011	Nut Or Collar, Pinion Stop, Starter	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28181-20010	Terminal, Starter	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28181-20011	Terminal, Starter	Starter ([12.1976 - 08.1980] (7612-8008)18R)
28199-77090	Cover, Starter End Frame	Starter ([12.1976 - 08.1980] (7612-8008)18R)
90099-00926	New Genuine Part	Starter ([12.1976 - 08.1980] (7612-8008)18R)
90099-01467	New Genuine Part	Starter ([12.1976 - 08.1980] (7612-8008)18R)
90099-04921	New Genuine Part	Starter ([12.1976 - 08.1980] (7612-8008)18R)
90099-05148	New Genuine Part	Starter ([12.1976 - 08.1980] (7612-8008)18R)
90099-07047	Ring, Snap(For Starter Pinion Stop Nut)	Starter ([12.1976 - 08.1980] (7612-8008)18R)
90099-12405	New Genuine Part	Starter ([12.1976 - 08.1980] (7612-8008)18R)
90116-10021	Bolt, Stud(For Manifold To Cylinder Head)	Starter ([12.1976 - 08.1980] (7612-8008)18R)
90119-10025	Bolt (For Transmission Control Cable Bracket)	Starter ([12.1976 - 08.1980] (7612-8008)18R)
90179-10125	Nut(For Counter Gear Shaft)	Starter ([12.1976 - 08.1980] (7612-8008)18R)
90179-10132	Nut	Starter ([12.1976 - 08.1980] (7612-8008)18R)
91611-40812	Bolt(for Drive Plate & Torque Converter Setting)	Starter ([12.1976 - 08.1980] (7612-8008)18R)
91611-B0812	Bolt	Starter ([12.1976 - 08.1980] (7612-8008)18R)
91612-61030	Bolt (For Transmission Control Cable Bracket)	Starter ([12.1976 - 08.1980] (7612-8008)18R)
94110-40800	Nut(For Steering Damper)	Starter ([12.1976 - 08.1980] (7612-8008)18R)
94120-40800	Nut(For Clutch Pedal Stopper)	Starter ([12.1976 - 08.1980] (7612-8008)18R)
94130-00802	Nut, No.1 (For Center Support Bearing)	Starter ([12.1976 - 08.1980] (7612-8008)18R)
94511-00800	WASHERSPRING	Starter ([12.1976 - 08.1980] (7612-8008)18R)
