RX30

Toyota CRESSIDA-CRESSIDA-WAGON · 1976 · 4,467 parts · 171 categories
RX30 ×

← Back to categories

4,467 items

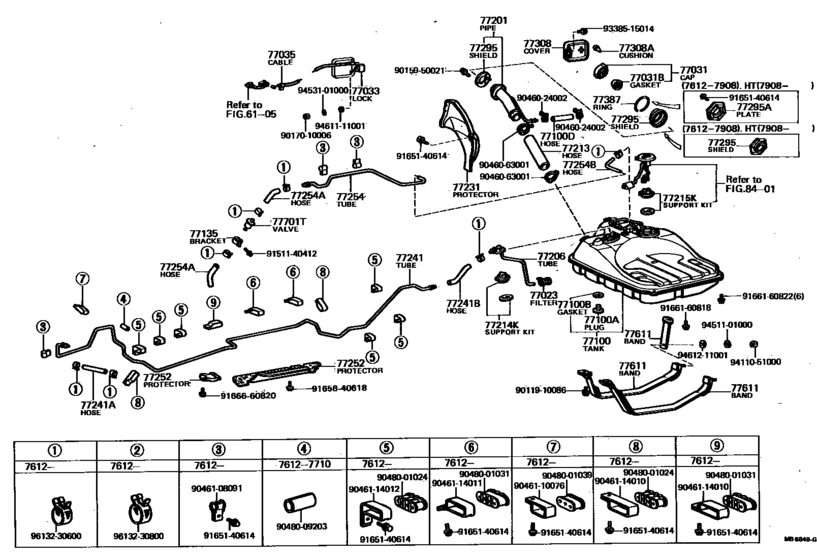

Fuel Tank & Tube ([12.1976 - 08.1980] (7612-8008)RX30 ; (7612-8008)TX30..4F) 99
#OEMPart name
77023 77023-12050 Filter Sub-Assy, Fuel Suction Tube
77031 77310-12090 Cap Assy, Fuel Tank
77031 77310-12100 Cap Assy, Fuel Tank
77031 77310-14070 Cap Assy, Fuel Tank
77031 77310-30050 Cap Assy, Fuel Tank
77031 77316-12050 Gasket (For Fuel Tank Cap)
77031 77316-12060 Gasket (For Fuel Tank Cap)
77100 77001-22120 Tank Assy, Fuel
77100 77100-22360 Tank Assy, Fuel
77100 77100-22370 Tank Assy, Fuel
77100 77100-22380 Tank Assy, Fuel
77100 77100-22390 Tank Assy, Fuel
77100 77100-22400 Tank Assy, Fuel
77100 77001-22141 Tank Assy, Fuel
77100 90341-24036 Plug(For Fuel Tank)
77100 90430-24047 Gasket(For Fuel Tank)
77100 90445-22003 Hose, Fuel, No.1(For Fuel Tank) - FUEL, NO.3(FOR FUEL TANK INLET PIPE)
77135 77135-22020 Bracket, Check Valve
77201 77201-22070 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-22072 Pipe Sub-Assy, Fuel Tank Inlet
77206 77017-22040 Tube Sub-Assy, Fuel Tank Suction
77206 77017-22041 Tube Sub-Assy, Fuel Tank Suction
77213 77213-22040 Hose, Fuel Tank Sub Inlet
77213 77408-22010 Hose, Fuel Tank Sub Inlet
77214 04772-12010 Support Kit, Fuel Tank Tube
77215 04772-12020 Support Kit, Fuel Tank Gage - FUEL TANK INLET
77231 77277-22010 Protector, Inlet Tube
77231 77277-22011 Protector, Inlet Tube
77241 77251-22130 Tube, Fuel Main, No.1
77241 95331-06014 Hose, Fuel, No.2 (For Main Tube, No.1)
77241 95337-06020 Hose, Differential Pressure Control
77241 95332-06014 Hose, Fuel, No.2 (For Main Tube, No.1)
77241 95332-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77241 95331-06024 Hose, Fuel, No.1 (For Emission Tube, No.1)
77241 95333-06030 Hose, Fuel
77241 95332-06024 Hose, Fuel(For Fuel Evaporative Separator)
77241 95332-06030 Hose(For Carburetor)
77252 77266-22030 Protector, Fuel Tube
77252 77267-22020 Protector, Fuel Tube, No.2
77254 77227-22030 Tube, Fuel Emission, No.1
77254 95331-06007 Hose, Fuel Pipe, No.1 - FUEL, NO.3(FOR FUEL EXPANSION TANK)
77254 95331-06009 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
77254 95332-06007 Hose, Fuel Pipe, No.1
77254 95333-06010 Hose, Fuel
77254 95332-06009 Hose, Fuel(For Fuel Evaporative Separator)
77254 95332-06010 Hose, Fuel Pipe, No.1
77254 95331-06016 Hose, Fuel, No.2(For Fuel Tank) - FUEL, NO.2 (FOR MAIN TUBE, NO.1)
77254 95332-06016 Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1
77254 95332-06017 Hose, Fuel(For Fuel Evaporative Separator)
77295 77291-22010 Shield, Fuel Tank, Inlet, No.1 - FUEL TANK, INLET, NO.2
77295 77291-22011 Shield, Fuel Filler Pipe
77295 77292-22010 Shield, Fuel Filler Pipe
77295 77292-22011 Shield, Fuel Filler Pipe
77295 77294-22010 Plate, Fuel Filler Pipe Shield Support
77308 77350-22010 Cover Sub-Assy, Fuel Inlet Box
77308 77350-22011 Cover Sub-Assy, Fuel Inlet Box
77308 90541-03001 Cushion(For Fuel Inlet Box Cover)
77308 90541-08003 Cushion(For Inspection Opening)
77387 77391-14010 Ring, Fuel Inlet Box
77611 77601-22020 Band, Fuel Tank
77611 77601-22050 Band, Fuel Tank
77611 77602-22030 Band, Fuel Tank
77611 77602-22060 Band, Fuel Tank
77611 77603-22020 Band, Fuel Tank
77701 90917-10020 Valve, Check (For Main Fuel Tank)
9011910086 90119-10086 New Genuine Part
9011910086 91665-61045 BOLT
9015950021 90159-50021 New Genuine Part
9017010006 90170-10006 New Genuine Part
9046024002 90460-24002 New Genuine Part
9046024002 96112-20240 New Genuine Part
9046063001 90460-63001 New Genuine Part
9046108091 90461-08091 New Genuine Part
9046110076 90461-10076 New Genuine Part
9046114010 90461-14010 New Genuine Part
9046114011 90461-14011 New Genuine Part
9046114012 90461-14012 New Genuine Part
9048001024 90480-01024 New Genuine Part
9048001031 90480-01031 New Genuine Part
9048001039 90480-01039 New Genuine Part
9048009203 90480-09203 New Genuine Part
9151140412 91511-40412 New Genuine Part
9165140614 91651-40614 Bolt
9165640618 91656-40618 Bolt (For Rear Differential Breather Plug Oil Deflector)
9165640618 91651-60614 Bolt
9166160818 91661-60818 New Genuine Part
9166160822 91661-60822 New Genuine Part
9166660820 91666-60820 New Genuine Part
9166660820 91661-60816 Bolt
9338515014 93385-15014 Screw(For Steering Tilt Lever)
9411051000 94110-51000 Nut(For Steering Center Arm)
9451101000 94511-01000 Washer(For Rear Drive Shaft)
9453101000 94531-01000 WASHER
9461111001 94611-11001 Plate, Rear Seat Back Stopper
9461211001 94612-11001 Washer, Plate (For Center Support Bearing Housing)
9613230600 96132-30600 Clip(For Actuator Hose)
9613230600 96132-51100 Clip (For Hose)
9613230800 96132-30800 Clip, No.3(For Idle-Up Hose)
9613230800 96132-51300 Clip(For Ventilation Hose No.2)
