Search › Model › RX30

RX30

Toyota CRESSIDA-CRESSIDA-WAGON · 1976 · 4,467 parts · 171 categories

4,467 items

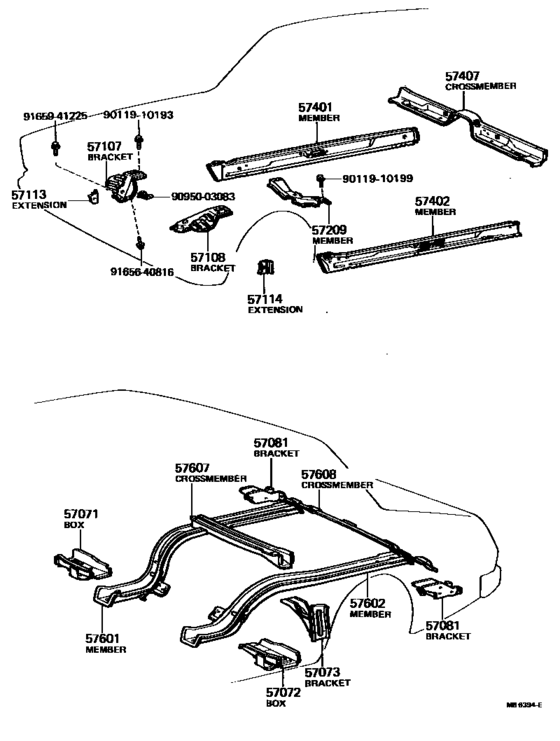

Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30) 40

#	OEM	Part name
57071	57071-22030	Box Sub-Assy, Torque, Rear Rh
57072	57072-22030	Box Sub-Assy, Torque, Rear Lh
57073	57073-22030	Bracket Sub-Assy, Lateral Rod
57073	57073-22031	Bracket Sub-Assy, Lateral Rod
57081	57081-22010	Bracket Sub-Assy, Rear Bumper Mounting
57081	57615-22040	Bracket Sub-Assy, Rear Bumper Mounting
57107	57107-22020	Bracket Sub-Assy, Strut Bar, Rh
57108	57108-22080	Bracket Sub-Assy, Strut Bar, Lh
57113	57113-22030	Extension, Front Side Member, Rh
57113	57113-22040	Extension, Front Side Member, Rh
57114	57114-22030	Extension, Front Side Member, Lh
57114	57114-22040	Extension, Front Side Member, Lh
57209	57255-22103	Member Sub-Assy, Engine Rear Support
57209	57255-22104	Member Sub-Assy, Engine Rear Support
57209	57255-22180	Member Sub-Assy, Engine Rear Support
57401	57406-22010	Member Sub-Assy, Main Floor Side, Rh
57401	57406-22020	Member Sub-Assy, Main Floor Side, Rh
57401	57406-22021	Member Sub-Assy, Main Floor Side, Rh
57402	57409-22010	Member Sub-Assy, Main Floor Side, Lh
57402	57409-22020	Member Sub-Assy, Main Floor Side, Lh
57402	57409-22021	Member Sub-Assy, Main Floor Side, Lh
57407	57407-22010	Cross Member Sub-Assy, Center Floor, No.1
57601	57601-22070	Member Sub-Assy, Rear Floor Side, Rh
57601	57601-95802	Member Sub-Assy, Rear Floor Side, Rh
57602	57602-22060	Member Sub-Assy, Rear Floor Side, Lh
57602	57602-95800	Member Sub-Assy, Rear Floor Side, Lh
57607	57605-22050	Crossmember Sub-Assy, Rear Floor, No.1
57607	57605-22051	Crossmember Sub-Assy, Rear Floor, No.1
57607	57605-22052	Crossmember Sub-Assy, Rear Floor, No.1
57607	57605-22053	Crossmember Sub-Assy, Rear Floor, No.1
57608	57606-22040	Crossmember Sub-Assy, Rear Floor, No.2
9011910193	90119-10193	Bolt, No.1 (for Center Support Bearing)
9011910193	91651-61025	Bolt with washer
9011910199	90119-10199	New Genuine Part
9011910199	91651-41020	BOLT W-WASHER
9095003083	90950-03083	New Genuine Part
9165640816	91656-40816	New Genuine Part
9165640816	91651-B0814	Bolt with washer
9165640816	90119-A0109	New Genuine Part
9165941225	91659-41225	New Genuine Part

OEM	Part name	Category
57071-22030	Box Sub-Assy, Torque, Rear Rh	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
57072-22030	Box Sub-Assy, Torque, Rear Lh	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
57073-22030	Bracket Sub-Assy, Lateral Rod	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
57073-22031	Bracket Sub-Assy, Lateral Rod	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
57081-22010	Bracket Sub-Assy, Rear Bumper Mounting	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
57107-22020	Bracket Sub-Assy, Strut Bar, Rh	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
57108-22080	Bracket Sub-Assy, Strut Bar, Lh	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
57113-22030	Extension, Front Side Member, Rh	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
57113-22040	Extension, Front Side Member, Rh	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
57114-22030	Extension, Front Side Member, Lh	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
57114-22040	Extension, Front Side Member, Lh	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
57255-22103	Member Sub-Assy, Engine Rear Support	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
57255-22104	Member Sub-Assy, Engine Rear Support	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
57255-22180	Member Sub-Assy, Engine Rear Support	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
57406-22010	Member Sub-Assy, Main Floor Side, Rh	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
57406-22020	Member Sub-Assy, Main Floor Side, Rh	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
57406-22021	Member Sub-Assy, Main Floor Side, Rh	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
57407-22010	Cross Member Sub-Assy, Center Floor, No.1	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
57409-22010	Member Sub-Assy, Main Floor Side, Lh	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
57409-22020	Member Sub-Assy, Main Floor Side, Lh	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
57409-22021	Member Sub-Assy, Main Floor Side, Lh	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
57601-22070	Member Sub-Assy, Rear Floor Side, Rh	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
57601-95802	Member Sub-Assy, Rear Floor Side, Rh	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
57602-22060	Member Sub-Assy, Rear Floor Side, Lh	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
57602-95800	Member Sub-Assy, Rear Floor Side, Lh	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
57605-22050	Crossmember Sub-Assy, Rear Floor, No.1	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
57605-22051	Crossmember Sub-Assy, Rear Floor, No.1	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
57605-22052	Crossmember Sub-Assy, Rear Floor, No.1	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
57605-22053	Crossmember Sub-Assy, Rear Floor, No.1	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
57606-22040	Crossmember Sub-Assy, Rear Floor, No.2	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
57615-22040	Bracket Sub-Assy, Rear Bumper Mounting	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
90119-10193	Bolt, No.1 (for Center Support Bearing)	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
90119-10199	New Genuine Part	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
90119-A0109	New Genuine Part	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
90950-03083	New Genuine Part	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
91651-41020	BOLT W-WASHER	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
91651-61025	Bolt with washer	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
91651-B0814	Bolt with washer	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
91656-40816	New Genuine Part	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
91659-41225	New Genuine Part	Floor Side Member ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)

Source: Public OEM parts-catalog data
Variants: 2 / 96
Category: 171
Collected: 2026-08-02
