Search › Model › RX30

RX30

Toyota CRESSIDA-CRESSIDA-WAGON · 1976 · 4,467 parts · 171 categories

4,467 items

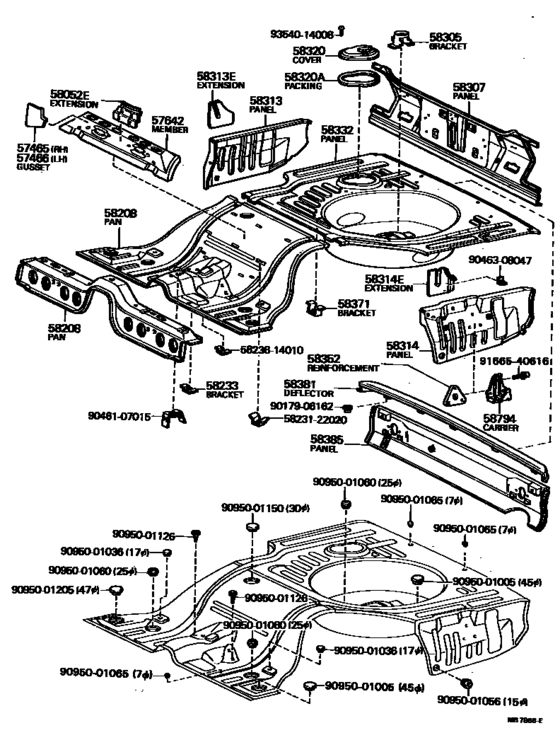

Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30) 51

#	OEM	Part name
57465	57465-22010	Gusset, Center Floor Crossmember, Rear, Rh
57466	57466-22010	Gusset, Center Floor Crossmember, Rear, Lh
57642	57462-22010	Member, Center Floor Cross, No.2
58052	64227-22020	Extension, Center Floor To Brace
58208	58211-22020	Pan, Center Floor
58208	58212-22040	Pan, Center Floor, Front
58233	58233-22010	Bracket, Exhaust Pipe Mounting
58233	58233-22011	Bracket, Exhaust Pipe Mounting
58305	58305-10011	Bracket Sub-Assy, Spare Wheel Clamp
58307	58307-22110	Panel Sub-Assy, Body Lower Back
58307	58307-22111	Panel Sub-Assy, Body Lower Back
58313	58313-22040	Panel, Rear Floor Side, Rh
58313	58313-22050	Panel, Rear Floor Side, Rh
58313	58315-22010	Extension, Rear Floor Side Panel, Rh
58314	58314-22040	Panel, Rear Floor Side, Lh
58314	58314-22050	Panel, Rear Floor Side, Lh
58314	58317-22010	Extension, Rear Floor Side Panel, Lh
58320	58325-22020	Cover, Rear Floor Service Hole
58320	58339-22010	Packing, Rear Floor Service Hole
58332	58311-22070	Panel, Rear Floor, Rear
58332	58311-22090	Pan, Rear Floor
58332	90480-20363	New Genuine Part
58332	90950-01038	Plug, Hole(For Instrument Lower Panel)
58332	58311-22071	Pan, Rear Floor - REAR FLOOR, REAR
58352	58352-22020	Reinforcement, Jack Clamp
58371	58369-22030	Bracket, Fuel Pump Support
58371	58369-22031	Bracket, Fuel Pump Support
58381	59201-22010	Deflector, Rear Bumper Stone
58385	58381-22020	Panel, Rear Valance
58794	58791-22010	Carrier, Jack
5823122020	58231-22020	Bracket, Mounting, Floor, No.5
5823614010	58236-14010	Bracket, Mounting, Floor, No.1
9017906162	90179-06162	New Genuine Part
9017906162	90179-06308	NUT
9046107015	90461-07015	Bracket, Center Floor Heat Insulator
9046308047	90463-08047	New Genuine Part
9095001005	90950-01005	PLUGHOLE
9095001005	90950-01867	PLUG HOLE
9095001036	90950-01036	Plug, Hole(For Luggage Compartment Door Panel)
9095001056	90950-01056	Plug, Hole(For Floor Panel)
9095001056	90950-01826	Plug, Hole(For Floor Panel)
9095001060	90950-01060	Plug, Hole, No.1(For Dash Panel)
9095001060	90950-01866	Plug, Hole(For Front Door Panel)
9095001065	90950-01065	Plug, Hole(For Front Fender Apron)
9095001126	90950-01126	Grommet, Safety Band Anchorage Nut
9095001150	90950-01150	Cover, Front Floor Hole
9095001150	90950-01882	Cover, Hole
9095001205	90950-01205	Plug, Hole(For Floor Panel)
9166540616	91665-40616	Screw(For Steering Column Tube)
9166540616	90080-11247	New Genuine Part
9354014008	93540-14008	New Genuine Part

OEM	Part name	Category
57462-22010	Member, Center Floor Cross, No.2	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
57465-22010	Gusset, Center Floor Crossmember, Rear, Rh	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
57466-22010	Gusset, Center Floor Crossmember, Rear, Lh	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
58211-22020	Pan, Center Floor	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
58212-22040	Pan, Center Floor, Front	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
58231-22020	Bracket, Mounting, Floor, No.5	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
58233-22010	Bracket, Exhaust Pipe Mounting	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
58233-22011	Bracket, Exhaust Pipe Mounting	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
58236-14010	Bracket, Mounting, Floor, No.1	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
58305-10011	Bracket Sub-Assy, Spare Wheel Clamp	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
58307-22110	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
58307-22111	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
58311-22070	Panel, Rear Floor, Rear	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
58311-22071	Pan, Rear Floor - REAR FLOOR, REAR	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
58311-22090	Pan, Rear Floor	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
58313-22040	Panel, Rear Floor Side, Rh	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
58313-22050	Panel, Rear Floor Side, Rh	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
58314-22040	Panel, Rear Floor Side, Lh	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
58314-22050	Panel, Rear Floor Side, Lh	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
58315-22010	Extension, Rear Floor Side Panel, Rh	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
58317-22010	Extension, Rear Floor Side Panel, Lh	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
58325-22020	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
58339-22010	Packing, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
58352-22020	Reinforcement, Jack Clamp	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
58369-22030	Bracket, Fuel Pump Support	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
58369-22031	Bracket, Fuel Pump Support	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
58381-22020	Panel, Rear Valance	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
58791-22010	Carrier, Jack	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
59201-22010	Deflector, Rear Bumper Stone	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
64227-22020	Extension, Center Floor To Brace	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
90080-11247	New Genuine Part	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
90179-06162	New Genuine Part	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
90179-06308	NUT	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
90461-07015	Bracket, Center Floor Heat Insulator	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
90463-08047	New Genuine Part	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
90480-20363	New Genuine Part	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
90950-01005	PLUGHOLE	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
90950-01036	Plug, Hole(For Luggage Compartment Door Panel)	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
90950-01038	Plug, Hole(For Instrument Lower Panel)	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
90950-01056	Plug, Hole(For Floor Panel)	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
90950-01060	Plug, Hole, No.1(For Dash Panel)	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
90950-01065	Plug, Hole(For Front Fender Apron)	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
90950-01126	Grommet, Safety Band Anchorage Nut	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
90950-01150	Cover, Front Floor Hole	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
90950-01205	Plug, Hole(For Floor Panel)	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
90950-01826	Plug, Hole(For Floor Panel)	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
90950-01866	Plug, Hole(For Front Door Panel)	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
90950-01867	PLUG HOLE	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
90950-01882	Cover, Hole	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
91665-40616	Screw(For Steering Column Tube)	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
93540-14008	New Genuine Part	Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX32,RX30,TX30)
