RX30

Toyota CRESSIDA-CRESSIDA-WAGON · 1976 · 4,467 parts · 171 categories

4,467 items

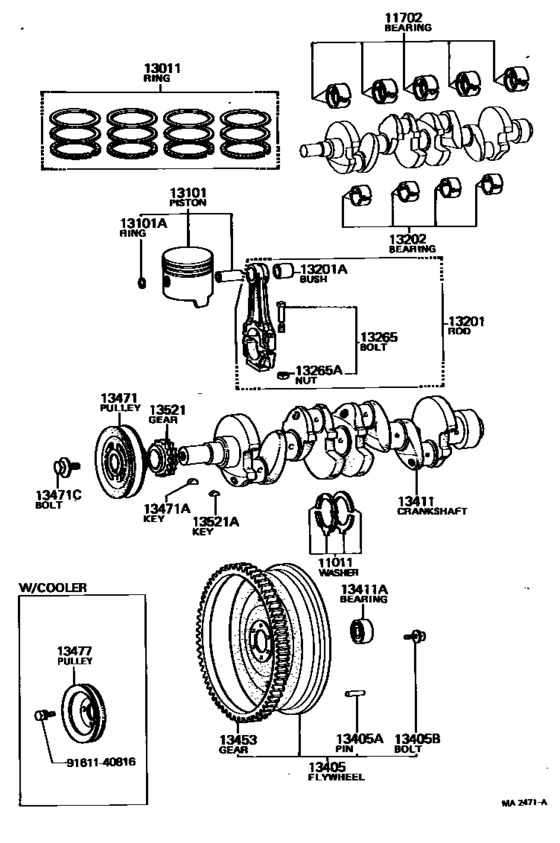

Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#) 51

#	OEM	Part name
11011	11011-38010	Washer Set, Crankshaft Thrust
11011	11011-35011	Washer Set, Crankshaft Thrust
11011	11012-38010	Washer Set, Crankshaft Thrust
11011	11012-35021	Washer Set, Crankshaft Thrust
11011	11013-38010	Washer Set, Crankshaft Thrust
11011	11013-35021	Washer Set, Crankshaft Thrust
11702	11702-33011	Bearing Set, Crankshaft
11702	11702-33012	Bearing Set, Crankshaft
11702	11704-33011	Bearing Set, Crankshaft
11702	11704-33012	Bearing Set, Crankshaft
11702	11705-33011	Bearing Set, Crankshaft
11702	11705-33012	Bearing Set, Crankshaft
13011	13011-34023	Ring Set, Piston
13011	13011-34030	Ring Set, Piston
13011	13011-38020	Ring Set, Piston
13011	13013-34023	Ring Set, Piston
13011	13013-34030	Ring Set, Piston
13011	13013-38010	Ring Set, Piston
13011	13015-34023	Ring Set, Piston
13011	13015-34030	Ring Set, Piston
13011	13015-38010	Ring Set, Piston
13101	13101-36030	Piston Sub-Assy, W/pin
13101	13103-36030	Piston Sub-Assy, W/pin
13101	13105-36030	Piston Sub-Assy, W/pin
13101	90521-25105	Ring, Hole Snap(For Piston Pin)
13201	13201-34012	Rod Sub-Assy, Connecting
13201	90999-73072	Bush(For Connecting Rod Small End)
13202	13202-33011	Bearing Set, Connecting Rod
13202	13041-35030-B0	Bearing Set, Connecting Rod
13202	13204-33011	Bearing Set, Connecting Rod
13202	13204-35040	Bearing Set, Connecting Rod
13202	13205-33011	Bearing Set, Connecting Rod
13202	13205-35040	Bearing Set, Connecting Rod
13265	13265-39025	Bolt, Connecting Rod
13265	90170-10198	Nut, Hexagon(For Connecting Rod Bolt)
13405	13405-39037	Flywheel Sub-Assy
13405	90250-08054	Pin, Straight
13405	90105-10042	Bolt, Flywheel Setting
13411	13411-34903	Crankshaft
13411	13411-34906	Crankshaft
13411	13411-34905	Crankshaft
13411	97143-06201	Bearing(For Input Shaft Front)
13411	90363-12002	Bearing (For Input Shaft)
13453	13453-20010	Gear, Flywheel Ring
13471	13471-34013	Pulley, Crankshaft
13471	90280-05010	Key(For Oil Pump Drive Spline)
13471	90105-14003	Bolt(For Crankshaft Pulley Set)
13471	90105-14048	Bolt(For Crankshaft Pulley Set)
13521	13521-33010	Gear Or Sprocket, Crankshaft Timing
9161140816	91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140816	91611-B0816	Bolt

OEM	Part name	Category
11011-35011	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
11011-38010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
11012-35021	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
11012-38010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
11013-35021	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
11013-38010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
11702-33011	Bearing Set, Crankshaft	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
11702-33012	Bearing Set, Crankshaft	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
11704-33011	Bearing Set, Crankshaft	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
11704-33012	Bearing Set, Crankshaft	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
11705-33011	Bearing Set, Crankshaft	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
11705-33012	Bearing Set, Crankshaft	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
13011-34023	Ring Set, Piston	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
13011-34030	Ring Set, Piston	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
13011-38020	Ring Set, Piston	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
13013-34023	Ring Set, Piston	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
13013-34030	Ring Set, Piston	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
13013-38010	Ring Set, Piston	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
13015-34023	Ring Set, Piston	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
13015-34030	Ring Set, Piston	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
13015-38010	Ring Set, Piston	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
13041-35030-B0	Bearing Set, Connecting Rod	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
13101-36030	Piston Sub-Assy, W/pin	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
13103-36030	Piston Sub-Assy, W/pin	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
13105-36030	Piston Sub-Assy, W/pin	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
13201-34012	Rod Sub-Assy, Connecting	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
13202-33011	Bearing Set, Connecting Rod	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
13204-33011	Bearing Set, Connecting Rod	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
13204-35040	Bearing Set, Connecting Rod	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
13205-33011	Bearing Set, Connecting Rod	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
13205-35040	Bearing Set, Connecting Rod	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
13265-39025	Bolt, Connecting Rod	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
13405-39037	Flywheel Sub-Assy	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
13411-34903	Crankshaft	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
13411-34905	Crankshaft	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
13411-34906	Crankshaft	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
13453-20010	Gear, Flywheel Ring	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
13471-34013	Pulley, Crankshaft	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
13521-33010	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
90105-10042	Bolt, Flywheel Setting	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
90105-14003	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
90105-14048	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
90170-10198	Nut, Hexagon(For Connecting Rod Bolt)	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
90250-08054	Pin, Straight	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
90280-05010	Key(For Oil Pump Drive Spline)	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
90363-12002	Bearing (For Input Shaft)	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
90521-25105	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
90999-73072	Bush(For Connecting Rod Small End)	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
91611-B0816	Bolt	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
97143-06201	Bearing(For Input Shaft Front)	Crankshaft & Piston ([12.1976 - 08.1980] (7612-8008)18R#)
