RW420D

Suzuki SX4 · 4,602 parts · 300 categories

4,602 items

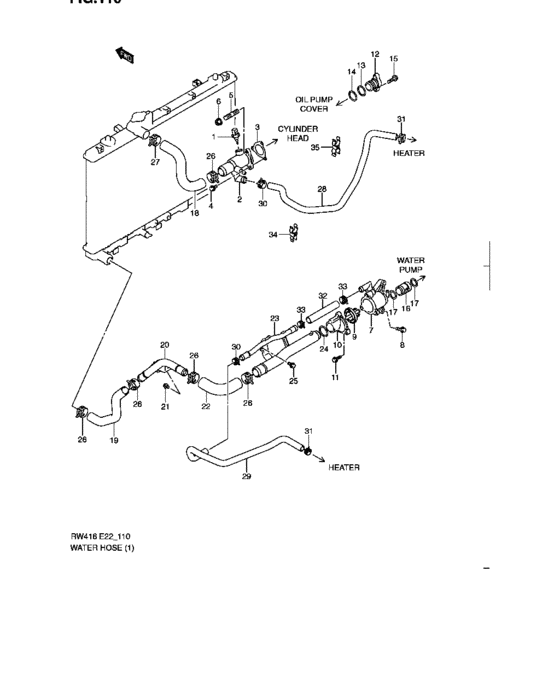

Water hose (TYPE 1,2:RW415,RW416) 32

#	OEM	Part name
1	13650-73H00-000	Sensor,water Temp
2	17570-86G10-000	Cap, water outlet
3	17699-69G00-000	GASKET,WATER OUTLET CAP
4	01550-0825A-000	Bolt
5	01421-0825A-000	BOLT,STUD
6	08316-1008A-000	NUT - Nut, idle gear shaft
7	17690-80JA0-000	CASE,THERMOSTAT
8	01550-0835A-000	Bolt
9	17670-65D00-000	THERMOSTAT,WATER 82 DEG
10	17561-86G00-000	CAP,WATER THERMOSTAT
10	17561-80JA0-000	CAP,WATER THERMOSTAT
11	01550-0625A-000	Bolt
11	01550-0620A-000	Bolt
12	17581-69G00-000	CAP,WATER OUTLET
13	17582-54D00-000	O-RING,NO.1 D:3.5 ID:30.7
14	17583-54D00-000	O-RING,NO.2 D:3.8 ID:27.7
15	01550-0845A-000	Bolt - Bolt, oil pump (s)
16	17831-69G00-000	PIPE,THERMO CASE WATER OUTLET
17	09280-28008-000	O RING(D:3.5,ID:27.7)
18	17852-79J00-000	Hose, radiator inlet
19	17854-79J00-000	Hose, radiator outlet
20	17860-79J00-000	Pipe,wtr inlet,no.2
21	01550-0612A-000	Bolt
22	17853-86G00-000	Hose, wtr inlet
23	17840-86G00-000	PIPE,WATER INLET NO.1
26	09401-35403-000	CLIP
28	17871-79J00-000	Hose, heater inlet
29	17872-79J00-000	Hose, heater outlet
30	09401-21405-000	CLIP
32	17873-86G00-000	Hose, wtr bypass
34	09408-00186-000	CLAMP
35	09408-00166-000	CLAMP

OEM	Part name	Category
01421-0825A-000	BOLT,STUD	Water hose (TYPE 1,2:RW415,RW416)
01550-0612A-000	Bolt	Water hose (TYPE 1,2:RW415,RW416)
01550-0620A-000	Bolt	Water hose (TYPE 1,2:RW415,RW416)
01550-0625A-000	Bolt	Water hose (TYPE 1,2:RW415,RW416)
01550-0825A-000	Bolt	Water hose (TYPE 1,2:RW415,RW416)
01550-0835A-000	Bolt	Water hose (TYPE 1,2:RW415,RW416)
01550-0845A-000	Bolt - Bolt, oil pump (s)	Water hose (TYPE 1,2:RW415,RW416)
08316-1008A-000	NUT - Nut, idle gear shaft	Water hose (TYPE 1,2:RW415,RW416)
09280-28008-000	O RING(D:3.5,ID:27.7)	Water hose (TYPE 1,2:RW415,RW416)
09401-21405-000	CLIP	Water hose (TYPE 1,2:RW415,RW416)
09401-35403-000	CLIP	Water hose (TYPE 1,2:RW415,RW416)
09408-00166-000	CLAMP	Water hose (TYPE 1,2:RW415,RW416)
09408-00186-000	CLAMP	Water hose (TYPE 1,2:RW415,RW416)
13650-73H00-000	Sensor,water Temp	Water hose (TYPE 1,2:RW415,RW416)
17561-80JA0-000	CAP,WATER THERMOSTAT	Water hose (TYPE 1,2:RW415,RW416)
17561-86G00-000	CAP,WATER THERMOSTAT	Water hose (TYPE 1,2:RW415,RW416)
17570-86G10-000	Cap, water outlet	Water hose (TYPE 1,2:RW415,RW416)
17581-69G00-000	CAP,WATER OUTLET	Water hose (TYPE 1,2:RW415,RW416)
17582-54D00-000	O-RING,NO.1 D:3.5 ID:30.7	Water hose (TYPE 1,2:RW415,RW416)
17583-54D00-000	O-RING,NO.2 D:3.8 ID:27.7	Water hose (TYPE 1,2:RW415,RW416)
17670-65D00-000	THERMOSTAT,WATER 82 DEG	Water hose (TYPE 1,2:RW415,RW416)
17690-80JA0-000	CASE,THERMOSTAT	Water hose (TYPE 1,2:RW415,RW416)
17699-69G00-000	GASKET,WATER OUTLET CAP	Water hose (TYPE 1,2:RW415,RW416)
17831-69G00-000	PIPE,THERMO CASE WATER OUTLET	Water hose (TYPE 1,2:RW415,RW416)
17840-86G00-000	PIPE,WATER INLET NO.1	Water hose (TYPE 1,2:RW415,RW416)
17852-79J00-000	Hose, radiator inlet	Water hose (TYPE 1,2:RW415,RW416)
17853-86G00-000	Hose, wtr inlet	Water hose (TYPE 1,2:RW415,RW416)
17854-79J00-000	Hose, radiator outlet	Water hose (TYPE 1,2:RW415,RW416)
17860-79J00-000	Pipe,wtr inlet,no.2	Water hose (TYPE 1,2:RW415,RW416)
17871-79J00-000	Hose, heater inlet	Water hose (TYPE 1,2:RW415,RW416)
17872-79J00-000	Hose, heater outlet	Water hose (TYPE 1,2:RW415,RW416)
17873-86G00-000	Hose, wtr bypass	Water hose (TYPE 1,2:RW415,RW416)
