Search › Model › RW420D
RW420D

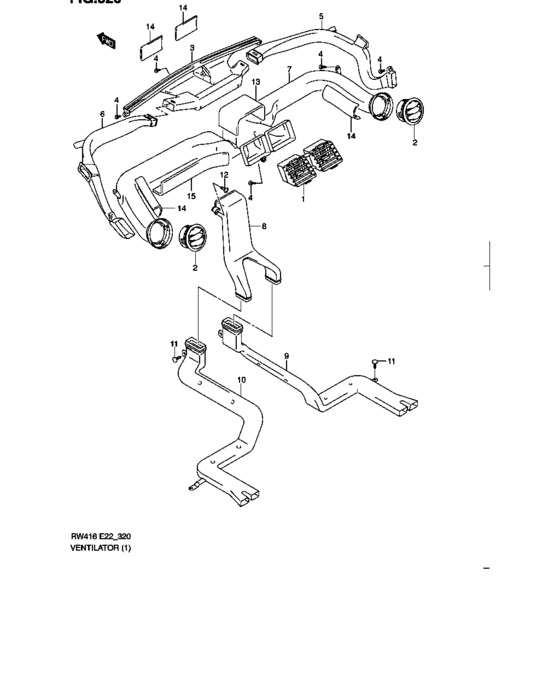

Ventilator (TYPE 1,2:LHD) 15
| # | OEM | Part name |
|---|---|---|
| 1 | 73610-79J00-S1S | Louver, center vent - Gray |
| 2 | 73630-62J10-S1S | Louver, side vent - Gray |
| 2 | 73630-62J10-BWL | Louver, side vent - Gray |
| 3 | 73661-79J11-000 | Nozzle, defroster |
| 4 | 03541-0516A-000 | SCREW |
| 5 | 73681-79J00-000 | Duct, demister rh |
| 6 | 73691-79J00-000 | Duct, demister lh |
| 7 | 74620-79J11-000 | Duct, vent |
| 8 | 74651-79J00-000 | Duct, rear center |
| 9 | 74652-62J00-000 | Duct, rear rh |
| 10 | 74653-62J00-000 | Duct, rear lh |
| 11 | 09409-06318-000 | CLIP |
| 13 | 73665-79J00-000 | Silencer, duct center |
| 14 | 73666-79J00-000 | Silencer, duct side |
| 15 | 75853-84E00-000 | Silencer, front door trim |
| OEM | Part name | Category |
|---|---|---|
| 03541-0516A-000 | SCREW | Ventilator (TYPE 1,2:LHD) |
| 09409-06318-000 | CLIP | Ventilator (TYPE 1,2:LHD) |
| 73610-79J00-S1S | Louver, center vent - Gray | Ventilator (TYPE 1,2:LHD) |
| 73630-62J10-BWL | Louver, side vent - Gray | Ventilator (TYPE 1,2:LHD) |
| 73630-62J10-S1S | Louver, side vent - Gray | Ventilator (TYPE 1,2:LHD) |
| 73661-79J11-000 | Nozzle, defroster | Ventilator (TYPE 1,2:LHD) |
| 73665-79J00-000 | Silencer, duct center | Ventilator (TYPE 1,2:LHD) |
| 73666-79J00-000 | Silencer, duct side | Ventilator (TYPE 1,2:LHD) |
| 73681-79J00-000 | Duct, demister rh | Ventilator (TYPE 1,2:LHD) |
| 73691-79J00-000 | Duct, demister lh | Ventilator (TYPE 1,2:LHD) |
| 74620-79J11-000 | Duct, vent | Ventilator (TYPE 1,2:LHD) |
| 74651-79J00-000 | Duct, rear center | Ventilator (TYPE 1,2:LHD) |
| 74652-62J00-000 | Duct, rear rh | Ventilator (TYPE 1,2:LHD) |
| 74653-62J00-000 | Duct, rear lh | Ventilator (TYPE 1,2:LHD) |
| 75853-84E00-000 | Silencer, front door trim | Ventilator (TYPE 1,2:LHD) |
