RW420D

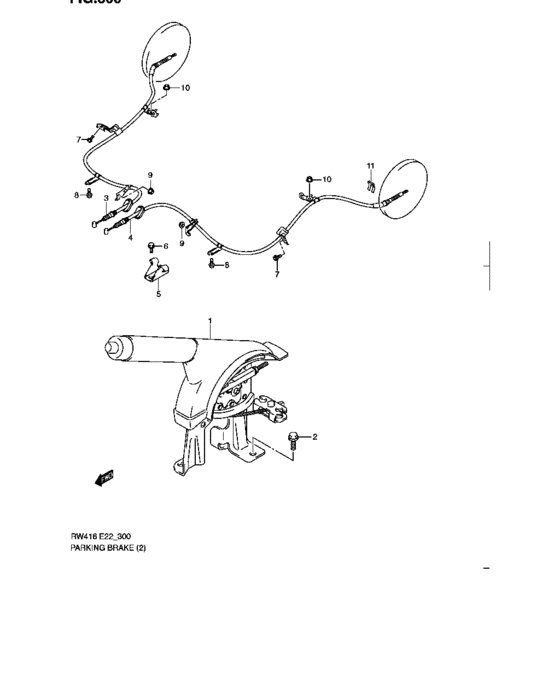

Parking brake (W/REAR DISC BRAKE) 11
| # | OEM | Part name |
|---|---|---|
| 1 | 54100-51K10-S1S | Lever assy, parking brake - Gray |
| 2 | 01551-0816C-000 | Bolt |
| 3 | 54401-55L10-000 | Cable, parking brake rh |
| 4 | 54402-55L10-000 | Cable, parking brake lh |
| 5 | 54495-86G00-000 | BRACKET,PARKING CABLE |
| 7 | 01551-0812A-000 | Bolt |
| 8 | 02162-0616A-000 | SCREW |
| 8 | 02162-0616B-000 | SCREW - Bolt, adjust |
| 9 | 08316-1006A-000 | NUT |
| 10 | 08316-1008A-000 | NUT - Nut, idle gear shaft |
| 11 | 09383-13003-000 | E-RING |
| OEM | Part name | Category |
|---|---|---|
| 01551-0812A-000 | Bolt | Parking brake (W/REAR DISC BRAKE) |
| 01551-0816C-000 | Bolt | Parking brake (W/REAR DISC BRAKE) |
| 02162-0616A-000 | SCREW | Parking brake (W/REAR DISC BRAKE) |
| 02162-0616B-000 | SCREW - Bolt, adjust | Parking brake (W/REAR DISC BRAKE) |
| 08316-1006A-000 | NUT | Parking brake (W/REAR DISC BRAKE) |
| 08316-1008A-000 | NUT - Nut, idle gear shaft | Parking brake (W/REAR DISC BRAKE) |
| 09383-13003-000 | E-RING | Parking brake (W/REAR DISC BRAKE) |
| 54100-51K10-S1S | Lever assy, parking brake - Gray | Parking brake (W/REAR DISC BRAKE) |
| 54401-55L10-000 | Cable, parking brake rh | Parking brake (W/REAR DISC BRAKE) |
| 54402-55L10-000 | Cable, parking brake lh | Parking brake (W/REAR DISC BRAKE) |
| 54495-86G00-000 | BRACKET,PARKING CABLE | Parking brake (W/REAR DISC BRAKE) |
