Search › Model › RW420D
RW420D

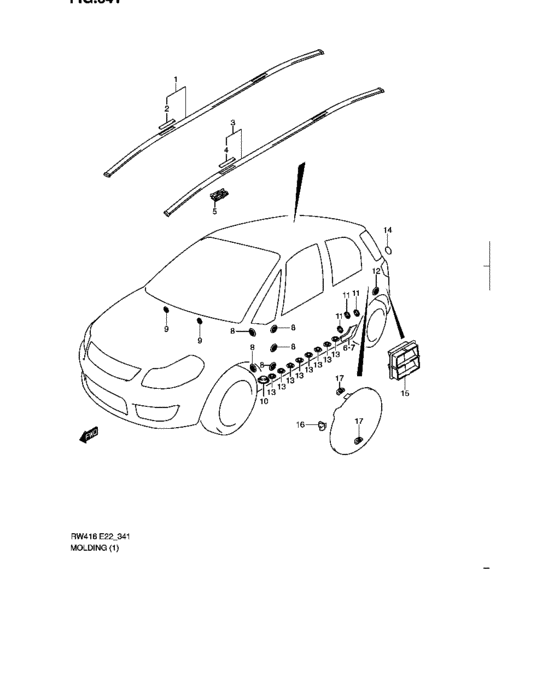

Molding (N/ROOF RAIL) 17
| # | OEM | Part name |
|---|---|---|
| 1 | 78130-79J10-000 | MOLDING,ROOF,R |
| 2 | 78132-79J00-000 | CAP,ROOF MOLDING |
| 3 | 78140-79J10-000 | MOLDING,ROOF,L |
| 5 | 78170-79J10-000 | CLIP,ROOF DRIP MOLDING |
| 6 | 77131-79J00-000 | Protector, side sill rr rh |
| 7 | 77132-79J00-000 | Protector, side sill rr lh |
| 8 | 09250-17001-000 | CAP(OD:25.5) |
| 9 | 09250-10016-000 | CAP(OD:16.2) |
| 10 | 72397-58J00-000 | CAP,DASH LOWER |
| 11 | 09250-15012-000 | CAP(OD:23.5) |
| 13 | 09250-15015-000 | CAP(OD:23.5) |
| 14 | 77191-76F00-000 | FILM |
| 15 | 77330-79J00-000 | Outlet, ventilator |
| 15 | 77330-80J00-000 | OUTLET,VENTILATOR |
| 16 | 77121-63J00-000 | SPRING,FUEL FILLER DOOR |
| 17 | 77116-60B00-000 | CUSHION FUEL FILTER |
| 17 | 77116-60B20-000 | CUSHION |
| OEM | Part name | Category |
|---|---|---|
| 09250-10016-000 | CAP(OD:16.2) | Molding (N/ROOF RAIL) |
| 09250-15012-000 | CAP(OD:23.5) | Molding (N/ROOF RAIL) |
| 09250-15015-000 | CAP(OD:23.5) | Molding (N/ROOF RAIL) |
| 09250-17001-000 | CAP(OD:25.5) | Molding (N/ROOF RAIL) |
| 72397-58J00-000 | CAP,DASH LOWER | Molding (N/ROOF RAIL) |
| 77116-60B00-000 | CUSHION FUEL FILTER | Molding (N/ROOF RAIL) |
| 77116-60B20-000 | CUSHION | Molding (N/ROOF RAIL) |
| 77121-63J00-000 | SPRING,FUEL FILLER DOOR | Molding (N/ROOF RAIL) |
| 77131-79J00-000 | Protector, side sill rr rh | Molding (N/ROOF RAIL) |
| 77132-79J00-000 | Protector, side sill rr lh | Molding (N/ROOF RAIL) |
| 77191-76F00-000 | FILM | Molding (N/ROOF RAIL) |
| 77330-79J00-000 | Outlet, ventilator | Molding (N/ROOF RAIL) |
| 77330-80J00-000 | OUTLET,VENTILATOR | Molding (N/ROOF RAIL) |
| 78130-79J10-000 | MOLDING,ROOF,R | Molding (N/ROOF RAIL) |
| 78132-79J00-000 | CAP,ROOF MOLDING | Molding (N/ROOF RAIL) |
| 78140-79J10-000 | MOLDING,ROOF,L | Molding (N/ROOF RAIL) |
| 78170-79J10-000 | CLIP,ROOF DRIP MOLDING | Molding (N/ROOF RAIL) |
