Search › Model › RW420D
RW420D

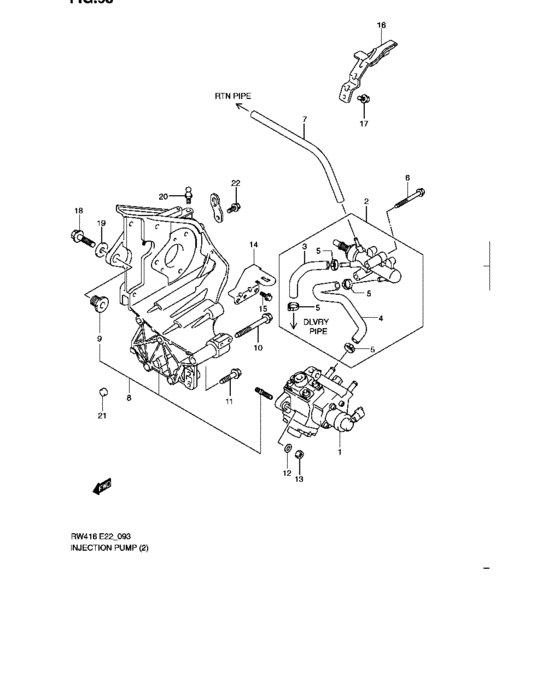

Injection pump (RW419D) 22
| # | OEM | Part name |
|---|---|---|
| 1 | 15200-79J51-000 | Pump assy, fuel injection |
| 2 | 15251-79J52-000 | Collector, fuel |
| 3 | 15253-79J50-000 | Hose, fuel |
| 4 | 15254-79J50-000 | Hose, fuel |
| 5 | 15255-79J50-000 | Clamp |
| 6 | 15252-79J51-000 | Bolt - 6x25 |
| 7 | 15256-79J52-000 | Tube |
| 8 | 12813-79J50-000 | Bracket assy, inj pump |
| 9 | 12826-79J51-000 | Bush |
| 10 | 12821-79J50-001 | Bolt - 8x68 |
| 11 | 12821-79J50-002 | Bolt |
| 12 | 15217-79J50-000 | Washer - 8x16 |
| 13 | 15218-79J51-000 | Nut |
| 14 | 12831-79J50-000 | Stiffener no.1 |
| 15 | 12825-79J50-000 | Bolt |
| 16 | 12829-79J51-000 | Stiffener no.2 |
| 17 | 12828-79J51-000 | Bolt - 6x12 |
| 18 | 12823-79J50-000 | Bolt - 10x40 |
| 19 | 12824-79J50-000 | Washer |
| 20 | 12827-79J51-000 | Pin |
| 21 | 11131-79J50-000 | Pin |
| 22 | 12822-79J50-000 | Bolt - 8x30 |
| OEM | Part name | Category |
|---|---|---|
| 11131-79J50-000 | Pin | Injection pump (RW419D) |
| 12813-79J50-000 | Bracket assy, inj pump | Injection pump (RW419D) |
| 12821-79J50-001 | Bolt - 8x68 | Injection pump (RW419D) |
| 12821-79J50-002 | Bolt | Injection pump (RW419D) |
| 12822-79J50-000 | Bolt - 8x30 | Injection pump (RW419D) |
| 12823-79J50-000 | Bolt - 10x40 | Injection pump (RW419D) |
| 12824-79J50-000 | Washer | Injection pump (RW419D) |
| 12825-79J50-000 | Bolt | Injection pump (RW419D) |
| 12826-79J51-000 | Bush | Injection pump (RW419D) |
| 12827-79J51-000 | Pin | Injection pump (RW419D) |
| 12828-79J51-000 | Bolt - 6x12 | Injection pump (RW419D) |
| 12829-79J51-000 | Stiffener no.2 | Injection pump (RW419D) |
| 12831-79J50-000 | Stiffener no.1 | Injection pump (RW419D) |
| 15200-79J51-000 | Pump assy, fuel injection | Injection pump (RW419D) |
| 15217-79J50-000 | Washer - 8x16 | Injection pump (RW419D) |
| 15218-79J51-000 | Nut | Injection pump (RW419D) |
| 15251-79J52-000 | Collector, fuel | Injection pump (RW419D) |
| 15252-79J51-000 | Bolt - 6x25 | Injection pump (RW419D) |
| 15253-79J50-000 | Hose, fuel | Injection pump (RW419D) |
| 15254-79J50-000 | Hose, fuel | Injection pump (RW419D) |
| 15255-79J50-000 | Clamp | Injection pump (RW419D) |
| 15256-79J52-000 | Tube | Injection pump (RW419D) |
