RW420D

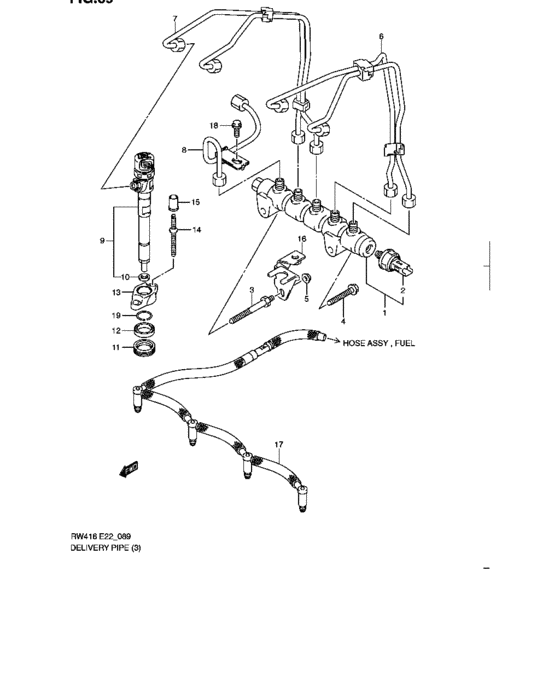

Delivery pipe (RW416D) 20
| # | OEM | Part name |
|---|---|---|
| 1 | 15731-69K00-000 | Pipe, delivery |
| 2 | 15760-69K00-000 | Sensor, fuel pressure |
| 3 | 15318-73J00-000 | Bolt, delivery pipe |
| 4 | 12821-73J00-000 | Bolt - 8x55 |
| 5 | 13969-69K00-000 | Nut - M6 |
| 6 | 15833-69K00-000 | Pipe set, fuel - #1 & #2 |
| 7 | 15834-69K00-000 | Pipe set, fuel - #3 & #4 |
| 8 | 15835-69K00-000 | Pipe, fuel return |
| 9 | 15310-69K00-000 | Injector assy |
| 10 | 15320-69K00-001 | Gasket - T:2 |
| 10 | 15320-69K00-002 | Gasket - T:2.4 |
| 11 | 15321-69K00-000 | Gasket, injector |
| 12 | 15315-69K00-000 | Protector |
| 13 | 15314-69K00-000 | Fork |
| 14 | 15313-73J00-000 | Bolt |
| 15 | 15316-69K00-000 | NUT |
| 16 | 15836-69K00-000 | Bracket, rtn pipe |
| 17 | 15837-69K01-000 | Hose, fuel |
| 18 | 11853-67G00-000 | BOLT,6X20 |
| 19 | 15319-69K00-000 | Ring, injector |
| OEM | Part name | Category |
|---|---|---|
| 11853-67G00-000 | BOLT,6X20 | Delivery pipe (RW416D) |
| 12821-73J00-000 | Bolt - 8x55 | Delivery pipe (RW416D) |
| 13969-69K00-000 | Nut - M6 | Delivery pipe (RW416D) |
| 15310-69K00-000 | Injector assy | Delivery pipe (RW416D) |
| 15313-73J00-000 | Bolt | Delivery pipe (RW416D) |
| 15314-69K00-000 | Fork | Delivery pipe (RW416D) |
| 15315-69K00-000 | Protector | Delivery pipe (RW416D) |
| 15316-69K00-000 | NUT | Delivery pipe (RW416D) |
| 15318-73J00-000 | Bolt, delivery pipe | Delivery pipe (RW416D) |
| 15319-69K00-000 | Ring, injector | Delivery pipe (RW416D) |
| 15320-69K00-001 | Gasket - T:2 | Delivery pipe (RW416D) |
| 15320-69K00-002 | Gasket - T:2.4 | Delivery pipe (RW416D) |
| 15321-69K00-000 | Gasket, injector | Delivery pipe (RW416D) |
| 15731-69K00-000 | Pipe, delivery | Delivery pipe (RW416D) |
| 15760-69K00-000 | Sensor, fuel pressure | Delivery pipe (RW416D) |
| 15833-69K00-000 | Pipe set, fuel - #1 & #2 | Delivery pipe (RW416D) |
| 15834-69K00-000 | Pipe set, fuel - #3 & #4 | Delivery pipe (RW416D) |
| 15835-69K00-000 | Pipe, fuel return | Delivery pipe (RW416D) |
| 15836-69K00-000 | Bracket, rtn pipe | Delivery pipe (RW416D) |
| 15837-69K01-000 | Hose, fuel | Delivery pipe (RW416D) |
