RW420D

Suzuki SX4 · 4,602 parts · 300 categories
RW420D ×

← Back to categories

4,602 items

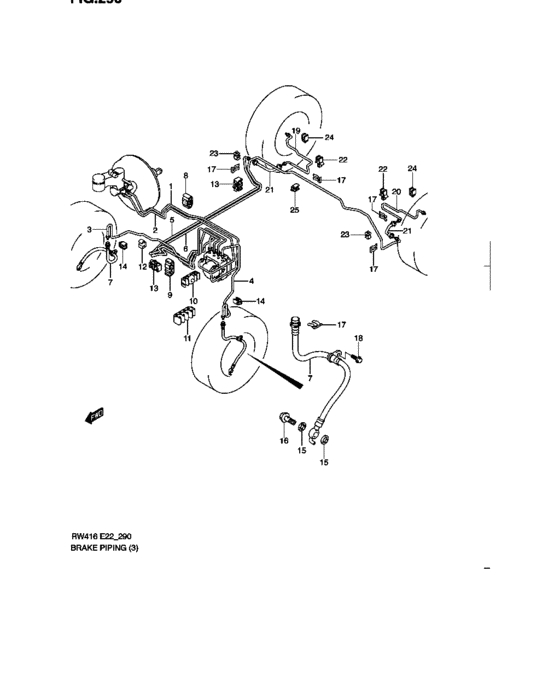

Brake piping (RHD:W/REAR DRUM BRAKE) 29
#OEMPart name
1 51410-79J10-000 Pipe, ma pri to unit
1 51410-79J30-000 Pipe, ma pri to unit
2 51420-79J10-000 Pipe, ma sec to unit
2 51420-79J30-000 Pipe, ma sec to unit
3 51430-79J10-000 Pipe, unit to fr bk hose rh
3 51430-55L10-000 Pipe, unit to fr bk hose rh
4 51440-79J10-000 Pipe, unit to fr bk hose lh
5 51450-79J10-000 Pipe, unit to rr bk hose rh
5 51450-55L10-000 Pipe, unit to rr bk hose rh
6 51460-79J10-000 Pipe, unit to rr bk hose lh
6 51460-55L10-000 Pipe, unit to rr bk hose lh
7 51550-79J00-000 Hose, fr brake flexible
8 51751-60B00-000 CLAMP,BRAKE PIPE
8 51751-65J30-000 CLAMP,BK PIPE FR SIDE
9 51751-65J40-000 CLAMP,BK PIPE FR SIDE
10 51751-82CB0-000 CLAMP,BRAKE PIPE
11 51753-74G60-000 CLAMP,BK PIPE UNIT
12 51752-70B00-000 CLAMP,BK PIPE
13 51761-76G00-000 CLAMP,BK PIPE DASH LWR
14 51761-79J00-000 CLAMP
15 09161-10009-000 WASHER(10X15X1.5) - Lock washer
16 09360-10046-000 Union bolt
17 09383-13003-000 E-RING
18 01551-0816C-000 Bolt
19 51510-79J00-000 Pipe, rr bk hose to whl cyl rh
20 51520-79J00-000 Pipe, rr bk hose to whl cyl lh
21 51570-79J00-000 Hose, rr brake flexible rh
22 51761-79J10-000 CLAMP,BK PIPE AXLE NO.1
23 51761-62J60-000 CLAMP,BK PIPE RR X MBR 1
