Search › Model › RW420D
RW420D

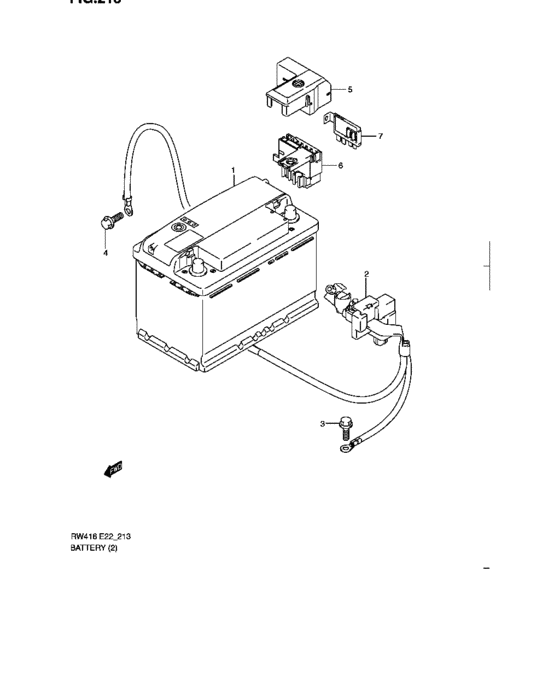

Battery (DIESEL) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 33610-79J00-000 | Battery - Exide,12v,70ah/20hr |
| 2 | 33850-79J20-000 | Cable, battery ground |
| 2 | 33880-55L20-000 | Cable, battery ground |
| 3 | 09115-06005-000 | BOLT(6X16) |
| 4 | 01550-0812A-000 | Bolt |
| 5 | 36694-79JA0-000 | Cover, battery terminal |
| 6 | 36739-79JA0-000 | Fuse, battery |
| 7 | 36739-79JB0-000 | Fuse, battery |
| OEM | Part name | Category |
|---|---|---|
| 01550-0812A-000 | Bolt | Battery (DIESEL) |
| 09115-06005-000 | BOLT(6X16) | Battery (DIESEL) |
| 33610-79J00-000 | Battery - Exide,12v,70ah/20hr | Battery (DIESEL) |
| 33850-79J20-000 | Cable, battery ground | Battery (DIESEL) |
| 33880-55L20-000 | Cable, battery ground | Battery (DIESEL) |
| 36694-79JA0-000 | Cover, battery terminal | Battery (DIESEL) |
| 36739-79JA0-000 | Fuse, battery | Battery (DIESEL) |
| 36739-79JB0-000 | Fuse, battery | Battery (DIESEL) |
