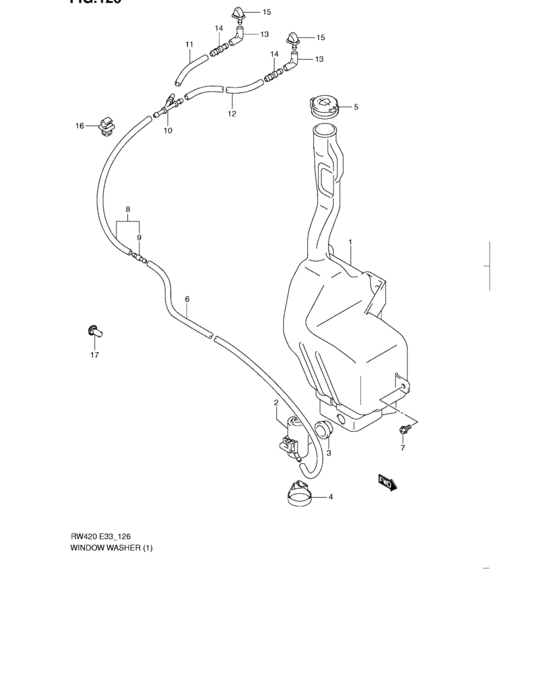

Window washer (4DR)
16
| # | OEM | Part name |
|---|
| 1 |
38450-80J00-000 |
TANK ASSY,WASHER |
| 2 |
38410-80J00-000 |
PUMP ASSY,WASHER FR |
| 3 |
38453-65J00-000 |
GROMMET |
| 4 |
38453-80J00-000 |
HOLDER,WASHER PUMP |
| 5 |
38451-80J20-000 |
CAP,WASHER TANK |
| 6 |
38459-80JB0-000 |
HOSE ASSY,FR |
| 7 |
02162-0612A-000 |
SCREW - Bolt, bracket |
| 8 |
38491-80J01-000 |
HOSE ASSY,WASHER |
| 9 |
38496-56B00-000 |
CONNECTOR |
| 10 |
38496-60G00-000 |
JOINT,3WAY |
| 11 |
38491-61A10-000 |
HOSE,WASHER L:2100 |
| 13 |
38496-67H00-000 |
JOINT,ELBOW |
| 14 |
38496-61A00-000 |
VALVE,CHECK |
| 15 |
38480-80J00-000 |
NOZZLE,WASHER |
| 16 |
09403-07330-000 |
CLAMP |
| 17 |
38840-80J10-000 |
CAP,RR WASHER HOSE HOLE |
| OEM |
Part name |
Category |
| 02162-0612A-000 |
SCREW - Bolt, bracket |
Window washer (4DR) |
| 09403-07330-000 |
CLAMP |
Window washer (4DR) |
| 38410-80J00-000 |
PUMP ASSY,WASHER FR |
Window washer (4DR) |
| 38450-80J00-000 |
TANK ASSY,WASHER |
Window washer (4DR) |
| 38451-80J20-000 |
CAP,WASHER TANK |
Window washer (4DR) |
| 38453-65J00-000 |
GROMMET |
Window washer (4DR) |
| 38453-80J00-000 |
HOLDER,WASHER PUMP |
Window washer (4DR) |
| 38459-80JB0-000 |
HOSE ASSY,FR |
Window washer (4DR) |
| 38480-80J00-000 |
NOZZLE,WASHER |
Window washer (4DR) |
| 38491-61A10-000 |
HOSE,WASHER L:2100 |
Window washer (4DR) |
| 38491-80J01-000 |
HOSE ASSY,WASHER |
Window washer (4DR) |
| 38496-56B00-000 |
CONNECTOR |
Window washer (4DR) |
| 38496-60G00-000 |
JOINT,3WAY |
Window washer (4DR) |
| 38496-61A00-000 |
VALVE,CHECK |
Window washer (4DR) |
| 38496-67H00-000 |
JOINT,ELBOW |
Window washer (4DR) |
| 38840-80J10-000 |
CAP,RR WASHER HOSE HOLE |
Window washer (4DR) |
