Search › Model › RW420
RW420

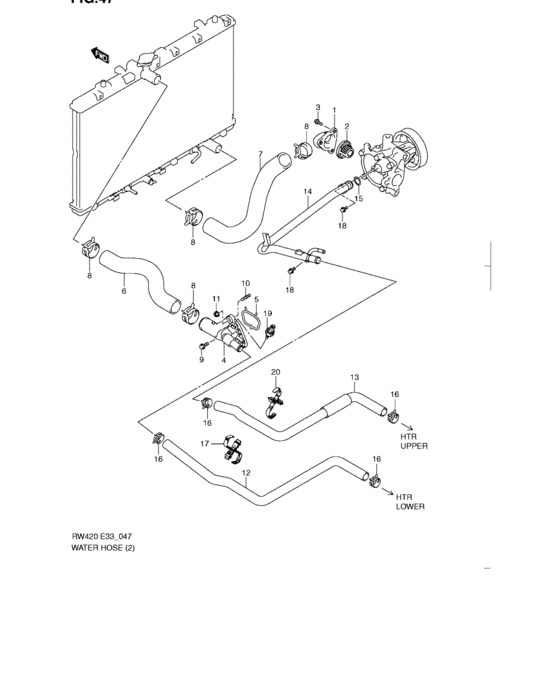

Water hose (2010) 21
| # | OEM | Part name |
|---|---|---|
| 1 | 17560-77EA0-000 | Cap,wtr thermostat |
| 1 | 17560-57L00-000 | CAP,WTR THERMOSTAT |
| 2 | 17670-63J00-000 | THERMOSTAT,WATER 82 DEG |
| 3 | 01550-0620A-000 | Bolt |
| 4 | 17570-57L00-000 | CAP,WTR OUTLET |
| 5 | 17579-78K00-000 | O-RING,WATER OUTLET CAP |
| 6 | 17852-54L00-000 | HOSE,RADIATOR INLET |
| 7 | 17854-54L00-000 | HOSE,RADIATOR OUTLET |
| 8 | 09401-35403-000 | CLIP |
| 9 | 01550-0825A-000 | Bolt |
| 10 | 01421-0825A-000 | BOLT,STUD |
| 11 | 08316-1008A-000 | NUT - Nut, idle gear shaft |
| 12 | 17871-54L00-000 | HOSE,HEATER INLET |
| 13 | 17872-54L00-000 | HOSE,HEATER OUTLET |
| 14 | 17880-78K00-000 | PIPE,HEATER OUTLET |
| 15 | 17849-83G00-000 | O-RING,HEATER OUTLET PIPE |
| 16 | 09401-21405-000 | CLIP |
| 17 | 09408-00243-000 | CLAMP |
| 18 | 01550-0612A-000 | Bolt |
| 19 | 13650-73H00-000 | Sensor,water Temp |
| 20 | 17875-54L00-000 | CLAMP,HEATER HOSE |
| OEM | Part name | Category |
|---|---|---|
| 01421-0825A-000 | BOLT,STUD | Water hose (2010) |
| 01550-0612A-000 | Bolt | Water hose (2010) |
| 01550-0620A-000 | Bolt | Water hose (2010) |
| 01550-0825A-000 | Bolt | Water hose (2010) |
| 08316-1008A-000 | NUT - Nut, idle gear shaft | Water hose (2010) |
| 09401-21405-000 | CLIP | Water hose (2010) |
| 09401-35403-000 | CLIP | Water hose (2010) |
| 09408-00243-000 | CLAMP | Water hose (2010) |
| 13650-73H00-000 | Sensor,water Temp | Water hose (2010) |
| 17560-57L00-000 | CAP,WTR THERMOSTAT | Water hose (2010) |
| 17560-77EA0-000 | Cap,wtr thermostat | Water hose (2010) |
| 17570-57L00-000 | CAP,WTR OUTLET | Water hose (2010) |
| 17579-78K00-000 | O-RING,WATER OUTLET CAP | Water hose (2010) |
| 17670-63J00-000 | THERMOSTAT,WATER 82 DEG | Water hose (2010) |
| 17849-83G00-000 | O-RING,HEATER OUTLET PIPE | Water hose (2010) |
| 17852-54L00-000 | HOSE,RADIATOR INLET | Water hose (2010) |
| 17854-54L00-000 | HOSE,RADIATOR OUTLET | Water hose (2010) |
| 17871-54L00-000 | HOSE,HEATER INLET | Water hose (2010) |
| 17872-54L00-000 | HOSE,HEATER OUTLET | Water hose (2010) |
| 17875-54L00-000 | CLAMP,HEATER HOSE | Water hose (2010) |
| 17880-78K00-000 | PIPE,HEATER OUTLET | Water hose (2010) |
