Search › Model › RW420
RW420

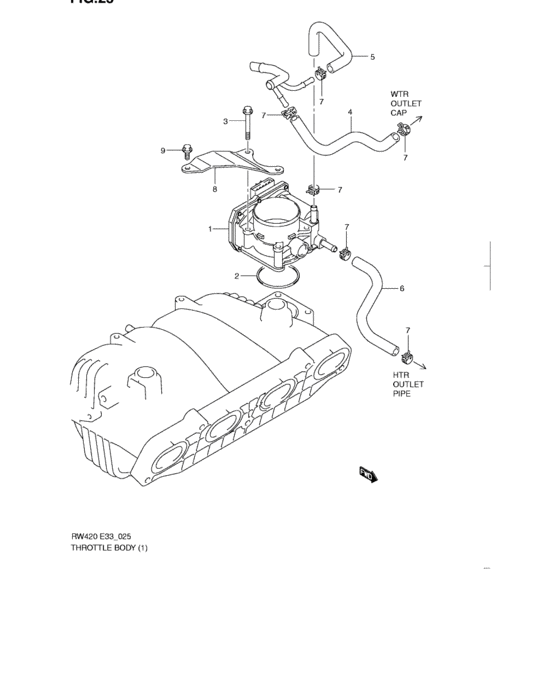

Throttle body (2007-2009) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 13400-80J00-000 | BODY ASSY,THROTTLE |
| 2 | 13421-80J00-000 | GASKET,THROTTLE BODY |
| 3 | 01550-0650A-000 | Bolt - Bolt (6x50) |
| 4 | 13491-80J00-000 | HOSE,WTR THROT BODY INLET |
| 5 | 13492-80J00-000 | HOSE,WTR THROT BODY OUTLET |
| 6 | 13493-80J00-000 | Hose,wtr throt body outlet |
| 6 | 13493-80J01-000 | HOSE,WTR THROT BODY OUTLET |
| 7 | 09401-12410-000 | CLIP - Clip, filter outlet |
| 8 | 13666-80J00-000 | STIFFENER,THROTTLE BODY |
| 9 | 01550-0612A-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01550-0612A-000 | Bolt | Throttle body (2007-2009) |
| 01550-0650A-000 | Bolt - Bolt (6x50) | Throttle body (2007-2009) |
| 09401-12410-000 | CLIP - Clip, filter outlet | Throttle body (2007-2009) |
| 13400-80J00-000 | BODY ASSY,THROTTLE | Throttle body (2007-2009) |
| 13421-80J00-000 | GASKET,THROTTLE BODY | Throttle body (2007-2009) |
| 13491-80J00-000 | HOSE,WTR THROT BODY INLET | Throttle body (2007-2009) |
| 13492-80J00-000 | HOSE,WTR THROT BODY OUTLET | Throttle body (2007-2009) |
| 13493-80J00-000 | Hose,wtr throt body outlet | Throttle body (2007-2009) |
| 13493-80J01-000 | HOSE,WTR THROT BODY OUTLET | Throttle body (2007-2009) |
| 13666-80J00-000 | STIFFENER,THROTTLE BODY | Throttle body (2007-2009) |
