Search › Model › RW420
RW420

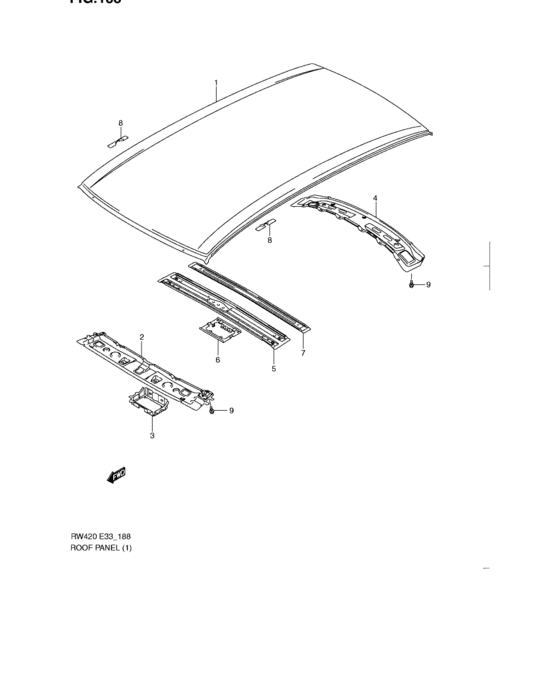

Roof panel (4DR) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 65111-75K00-000 | PANEL,ROOF |
| 2 | 65121-79J00-000 | Rail,roof front inner |
| 2 | 65121-54L00-000 | RAIL,ROOF FR INNER |
| 3 | 65122-79J00-000 | BRACKET,ROOM LAMP FR |
| 4 | 65131-75K00-000 | MEMBER,ROOF BACK INR |
| 5 | 65151-79J00-000 | MEMBER,ROOF PANEL CTR NO.1 |
| 6 | 65152-79J00-000 | BRACKET,ROOM LAMP CTR |
| 7 | 65161-79J00-000 | MEMBER,ROOF PANEL CTR NO.2 |
| 8 | 65171-63J00-000 | BRACKET,ROOF CARR |
| 9 | 01550-0612A-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01550-0612A-000 | Bolt | Roof panel (4DR) |
| 65111-75K00-000 | PANEL,ROOF | Roof panel (4DR) |
| 65121-54L00-000 | RAIL,ROOF FR INNER | Roof panel (4DR) |
| 65121-79J00-000 | Rail,roof front inner | Roof panel (4DR) |
| 65122-79J00-000 | BRACKET,ROOM LAMP FR | Roof panel (4DR) |
| 65131-75K00-000 | MEMBER,ROOF BACK INR | Roof panel (4DR) |
| 65151-79J00-000 | MEMBER,ROOF PANEL CTR NO.1 | Roof panel (4DR) |
| 65152-79J00-000 | BRACKET,ROOM LAMP CTR | Roof panel (4DR) |
| 65161-79J00-000 | MEMBER,ROOF PANEL CTR NO.2 | Roof panel (4DR) |
| 65171-63J00-000 | BRACKET,ROOF CARR | Roof panel (4DR) |
