Search › Model › RW420

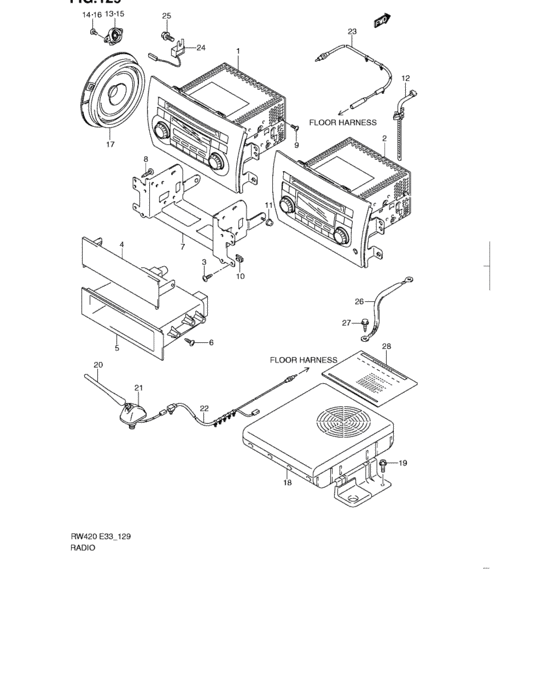

RW420
Radio (RADIO) 32
| # | OEM | Part name |
|---|---|---|
| 1 | 39101-80JD0-CZT | TUNER ASSY |
| 1 | 39101-80JG1-CZT | TUNER ASSY |
| 2 | 39101-54L00-CZT | TUNER ASSY |
| 3 | 03541-0516A-000 | SCREW |
| 4 | 39161-80J00-000 | COVER,RADIO HOLE |
| 5 | 39182-80J00-000 | Pocket,tuner |
| 5 | 39182-80J10-000 | POCKET,TUNER |
| 6 | 03241-0512A-000 | SCREW |
| 7 | 39321-80J00-000 | BRACKET,TUNER |
| 7 | 39321-79J00-000 | BRACKET,TUNER |
| 8 | 03541-0512A-000 | SCREW |
| 9 | 02142-0506A-000 | SCREW |
| 10 | 09148-05045-000 | NUT |
| 11 | 34955-54G10-000 | BUSH,RADIO BRKT |
| 12 | 09407-12404-000 | CLAMP(L:140) |
| 13 | 39102-79J00-000 | SPEAKER ASSY,TWEETER FR |
| 14 | 03541-0410A-000 | SCREW |
| 15 | 39102-79J10-000 | SPEAKER ASSY,TWEETER RR |
| 17 | 39102-63J50-000 | SPEAKER ASSY |
| 18 | 39104-79J00-000 | SPEAKER ASSY,SUB |
| 18 | 39104-80J00-000 | SPEAKER ASSY,SUB |
| 19 | 02162-0616B-000 | SCREW - Bolt, adjust |
| 20 | 39251-81JA0-000 | ROD,ANTENNA |
| 21 | 39253-81JA1-000 | Base,antenna |
| 21 | 39253-81JA2-000 | BASE,ANTENNA |
| 22 | 39271-80JA0-000 | FEEDER,GLASS ANT,L |
| 22 | 39271-80J00-000 | FEEDER,ANT ROOF |
| 23 | 39270-80J00-000 | FEEDER,ANT I/P |
| 24 | 39295-55G00-000 | FILTER ASSY,NOISE |
| 25 | 09115-06005-000 | BOLT(6X16) |
| 26 | 39312-78F10-000 | WIRE,NOISE SUPPR |
| 28 | 39106-66J20-000 | Owner's manual,sub speaker |
| OEM | Part name | Category |
|---|---|---|
| 02142-0506A-000 | SCREW | Radio (RADIO) |
| 02162-0616B-000 | SCREW - Bolt, adjust | Radio (RADIO) |
| 03241-0512A-000 | SCREW | Radio (RADIO) |
| 03541-0410A-000 | SCREW | Radio (RADIO) |
| 03541-0512A-000 | SCREW | Radio (RADIO) |
| 03541-0516A-000 | SCREW | Radio (RADIO) |
| 09115-06005-000 | BOLT(6X16) | Radio (RADIO) |
| 09148-05045-000 | NUT | Radio (RADIO) |
| 09407-12404-000 | CLAMP(L:140) | Radio (RADIO) |
| 34955-54G10-000 | BUSH,RADIO BRKT | Radio (RADIO) |
| 39101-54L00-CZT | TUNER ASSY | Radio (RADIO) |
| 39101-80JD0-CZT | TUNER ASSY | Radio (RADIO) |
| 39101-80JG1-CZT | TUNER ASSY | Radio (RADIO) |
| 39102-63J50-000 | SPEAKER ASSY | Radio (RADIO) |
| 39102-79J00-000 | SPEAKER ASSY,TWEETER FR | Radio (RADIO) |
| 39102-79J10-000 | SPEAKER ASSY,TWEETER RR | Radio (RADIO) |
| 39104-79J00-000 | SPEAKER ASSY,SUB | Radio (RADIO) |
| 39104-80J00-000 | SPEAKER ASSY,SUB | Radio (RADIO) |
| 39106-66J20-000 | Owner's manual,sub speaker | Radio (RADIO) |
| 39161-80J00-000 | COVER,RADIO HOLE | Radio (RADIO) |
| 39182-80J00-000 | Pocket,tuner | Radio (RADIO) |
| 39182-80J10-000 | POCKET,TUNER | Radio (RADIO) |
| 39251-81JA0-000 | ROD,ANTENNA | Radio (RADIO) |
| 39253-81JA1-000 | Base,antenna | Radio (RADIO) |
| 39253-81JA2-000 | BASE,ANTENNA | Radio (RADIO) |
| 39270-80J00-000 | FEEDER,ANT I/P | Radio (RADIO) |
| 39271-80J00-000 | FEEDER,ANT ROOF | Radio (RADIO) |
| 39271-80JA0-000 | FEEDER,GLASS ANT,L | Radio (RADIO) |
| 39295-55G00-000 | FILTER ASSY,NOISE | Radio (RADIO) |
| 39312-78F10-000 | WIRE,NOISE SUPPR | Radio (RADIO) |
| 39321-79J00-000 | BRACKET,TUNER | Radio (RADIO) |
| 39321-80J00-000 | BRACKET,TUNER | Radio (RADIO) |
