RW420

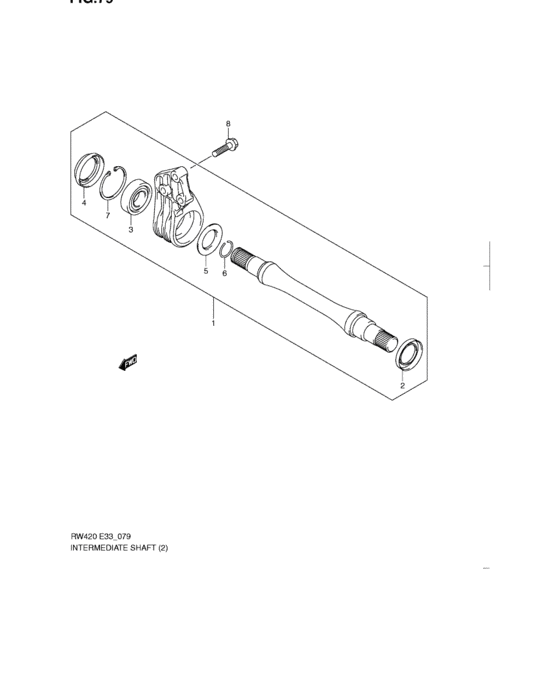

Intermediate shaft (FWD:6MT) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 27800-54L00-000 | Shaft assy,drive intermediate |
| 1 | 27800-54L01-000 | SHAFT ASSY,DRIVE INTERMEDIATE |
| 2 | 27812-54L00-000 | DEFLECTOR,INTERMEDIATE SHAFT |
| 3 | 27831-54L00-000 | BEARING,DRIVE INTERMEDIATE |
| 4 | 27841-54L00-000 | SEAL,DRIVE INTERMEDIATE |
| 5 | 27851-54LS0-000 | SHIELD,INTERMEDIATE SHAFT BRG |
| 6 | 27861-54L00-000 | Ring,drive shaft snap |
| 6 | 27861-54L01-000 | RING,DRIVE SHAFT SNAP |
| 7 | 08331-4162A-000 | CIRCLIP |
| 8 | 01550-1040A-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01550-1040A-000 | Bolt | Intermediate shaft (FWD:6MT) |
| 08331-4162A-000 | CIRCLIP | Intermediate shaft (FWD:6MT) |
| 27800-54L00-000 | Shaft assy,drive intermediate | Intermediate shaft (FWD:6MT) |
| 27800-54L01-000 | SHAFT ASSY,DRIVE INTERMEDIATE | Intermediate shaft (FWD:6MT) |
| 27812-54L00-000 | DEFLECTOR,INTERMEDIATE SHAFT | Intermediate shaft (FWD:6MT) |
| 27831-54L00-000 | BEARING,DRIVE INTERMEDIATE | Intermediate shaft (FWD:6MT) |
| 27841-54L00-000 | SEAL,DRIVE INTERMEDIATE | Intermediate shaft (FWD:6MT) |
| 27851-54LS0-000 | SHIELD,INTERMEDIATE SHAFT BRG | Intermediate shaft (FWD:6MT) |
| 27861-54L00-000 | Ring,drive shaft snap | Intermediate shaft (FWD:6MT) |
| 27861-54L01-000 | RING,DRIVE SHAFT SNAP | Intermediate shaft (FWD:6MT) |
