Search › Model › RW420
RW420

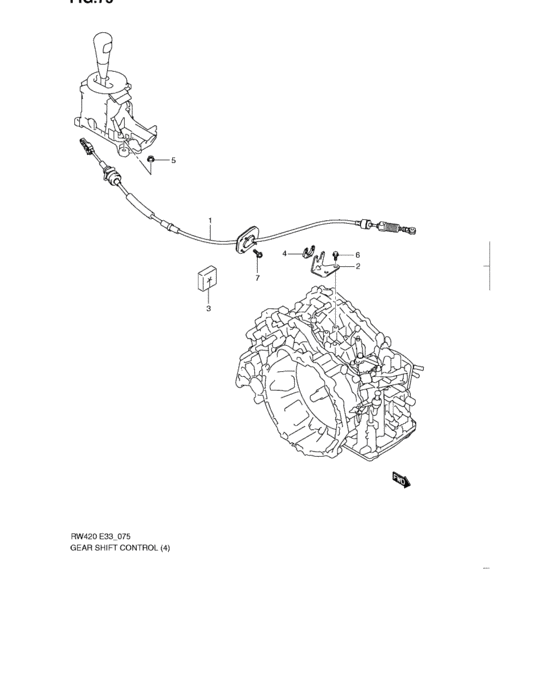

Gear shift control (CVT) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 28210-54LR0-000 | CABLE ASSY,SELECT |
| 2 | 28221-54LR0-000 | BRACKET,SELECT CABLE |
| 3 | 28311-80J00-000 | SEAL,SHIFT CONTROL CABLE |
| 4 | 29365-79A40-000 | CLIP |
| 5 | 08316-1008A-000 | NUT - Nut, idle gear shaft |
| 6 | 01550-0816A-000 | Bolt - Bolt, rear |
| 7 | 02162-0620C-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 01550-0816A-000 | Bolt - Bolt, rear | Gear shift control (CVT) |
| 02162-0620C-000 | SCREW | Gear shift control (CVT) |
| 08316-1008A-000 | NUT - Nut, idle gear shaft | Gear shift control (CVT) |
| 28210-54LR0-000 | CABLE ASSY,SELECT | Gear shift control (CVT) |
| 28221-54LR0-000 | BRACKET,SELECT CABLE | Gear shift control (CVT) |
| 28311-80J00-000 | SEAL,SHIFT CONTROL CABLE | Gear shift control (CVT) |
| 29365-79A40-000 | CLIP | Gear shift control (CVT) |
