Search › Model › RW420
RW420

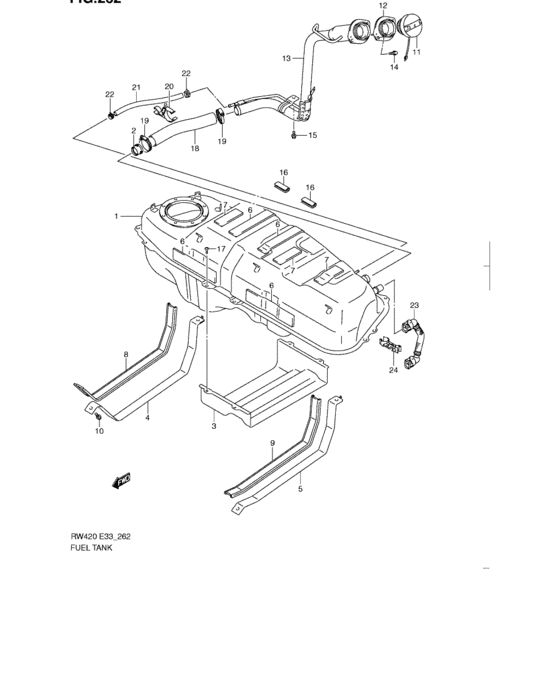

Fuel tank (FUEL TANK) 36
| # | OEM | Part name |
|---|---|---|
| 1 | 89101-80J11-000 | Tank assy,fuel |
| 1 | 89101-80J40-000 | TANK ASSY,FUEL |
| 1 | 89101-80J30-000 | Tank assy,fuel |
| 1 | 89101-80J61-000 | Tank assy,fuel |
| 1 | 89101-80J90-000 | TANK ASSY,FUEL |
| 1 | 89101-80J80-000 | Tank assy,fuel |
| 2 | 89270-75F00-000 | VALVE,FUEL TANK INLET |
| 3 | 89311-75K01-000 | Protector,fuel tank |
| 3 | 89311-75K02-000 | PROTECTOR,FUEL TANK |
| 3 | 89311-80J50-000 | Protector,fuel tank |
| 3 | 89311-80J51-000 | PROTECTOR,FUEL TANK |
| 4 | 89360-80J00-000 | BELT,TANK FIXER,R |
| 5 | 89370-80J00-000 | BELT,TANK FIXER,L |
| 5 | 89370-80J50-000 | BELT,TANK FIXER,L |
| 6 | 89381-63J00-000 | PAD,FUEL TANK |
| 8 | 89385-65D00-000 | PAD,FUEL TANK BELT |
| 9 | 89385-63J00-000 | PAD,FUEL TANK BELT |
| 10 | 09118-10073-000 | BOLT(10X30) |
| 11 | 89260-65GA2-000 | CAP ASSY,FUEL FILLER |
| 11 | 89260-77K20-000 | Cap assy,fuel filler |
| 11 | 89260-77K21-000 | CAP ASSY,FUEL FILLER |
| 12 | 89285-58J00-000 | PACKING,FUEL FILLER |
| 13 | 89201-80J30-000 | NECK ASSY,FUEL FILLER |
| 13 | 89201-80J21-000 | NECK ASSY,FUEL FILLER |
| 14 | 09116-05014-000 | BOLT(5X20) |
| 15 | 09116-06205-000 | BOLT(6X16) |
| 16 | 89445-60G00-000 | PROTECTOR,TANK FLANGE |
| 17 | 02142-0510A-000 | SCREW - Bolt, oil pump rotor plate |
| 17 | 02142-0510B-000 | SCREW - Bolt |
| 18 | 89241-80J10-000 | HOSE,FUEL TANK FILLER |
| 19 | 09402-50512-000 | CLAMP |
| 20 | 89242-80J10-000 | CLAMP,FILLER&BREATHER HOSE |
| 21 | 89467-80J00-000 | HOSE,AIR RECIRCULATION |
| 22 | 09401-12405-000 | CLIP |
| 23 | 89465-80J00-000 | HOSE,VAPOR CONTROL |
| 24 | 89433-80J10-000 | CLAMP,EVAP HOSE |
| OEM | Part name | Category |
|---|---|---|
| 02142-0510A-000 | SCREW - Bolt, oil pump rotor plate | Fuel tank (FUEL TANK) |
| 02142-0510B-000 | SCREW - Bolt | Fuel tank (FUEL TANK) |
| 09116-05014-000 | BOLT(5X20) | Fuel tank (FUEL TANK) |
| 09116-06205-000 | BOLT(6X16) | Fuel tank (FUEL TANK) |
| 09118-10073-000 | BOLT(10X30) | Fuel tank (FUEL TANK) |
| 09401-12405-000 | CLIP | Fuel tank (FUEL TANK) |
| 09402-50512-000 | CLAMP | Fuel tank (FUEL TANK) |
| 89101-80J11-000 | Tank assy,fuel | Fuel tank (FUEL TANK) |
| 89101-80J30-000 | Tank assy,fuel | Fuel tank (FUEL TANK) |
| 89101-80J40-000 | TANK ASSY,FUEL | Fuel tank (FUEL TANK) |
| 89101-80J61-000 | Tank assy,fuel | Fuel tank (FUEL TANK) |
| 89101-80J80-000 | Tank assy,fuel | Fuel tank (FUEL TANK) |
| 89101-80J90-000 | TANK ASSY,FUEL | Fuel tank (FUEL TANK) |
| 89201-80J21-000 | NECK ASSY,FUEL FILLER | Fuel tank (FUEL TANK) |
| 89201-80J30-000 | NECK ASSY,FUEL FILLER | Fuel tank (FUEL TANK) |
| 89241-80J10-000 | HOSE,FUEL TANK FILLER | Fuel tank (FUEL TANK) |
| 89242-80J10-000 | CLAMP,FILLER&BREATHER HOSE | Fuel tank (FUEL TANK) |
| 89260-65GA2-000 | CAP ASSY,FUEL FILLER | Fuel tank (FUEL TANK) |
| 89260-77K20-000 | Cap assy,fuel filler | Fuel tank (FUEL TANK) |
| 89260-77K21-000 | CAP ASSY,FUEL FILLER | Fuel tank (FUEL TANK) |
| 89270-75F00-000 | VALVE,FUEL TANK INLET | Fuel tank (FUEL TANK) |
| 89285-58J00-000 | PACKING,FUEL FILLER | Fuel tank (FUEL TANK) |
| 89311-75K01-000 | Protector,fuel tank | Fuel tank (FUEL TANK) |
| 89311-75K02-000 | PROTECTOR,FUEL TANK | Fuel tank (FUEL TANK) |
| 89311-80J50-000 | Protector,fuel tank | Fuel tank (FUEL TANK) |
| 89311-80J51-000 | PROTECTOR,FUEL TANK | Fuel tank (FUEL TANK) |
| 89360-80J00-000 | BELT,TANK FIXER,R | Fuel tank (FUEL TANK) |
| 89370-80J00-000 | BELT,TANK FIXER,L | Fuel tank (FUEL TANK) |
| 89370-80J50-000 | BELT,TANK FIXER,L | Fuel tank (FUEL TANK) |
| 89381-63J00-000 | PAD,FUEL TANK | Fuel tank (FUEL TANK) |
| 89385-63J00-000 | PAD,FUEL TANK BELT | Fuel tank (FUEL TANK) |
| 89385-65D00-000 | PAD,FUEL TANK BELT | Fuel tank (FUEL TANK) |
| 89433-80J10-000 | CLAMP,EVAP HOSE | Fuel tank (FUEL TANK) |
| 89445-60G00-000 | PROTECTOR,TANK FLANGE | Fuel tank (FUEL TANK) |
| 89465-80J00-000 | HOSE,VAPOR CONTROL | Fuel tank (FUEL TANK) |
| 89467-80J00-000 | HOSE,AIR RECIRCULATION | Fuel tank (FUEL TANK) |
