Search › Model › RW420

RW420

Suzuki SX4 · 4,448 parts · 252 categories

4,448 items

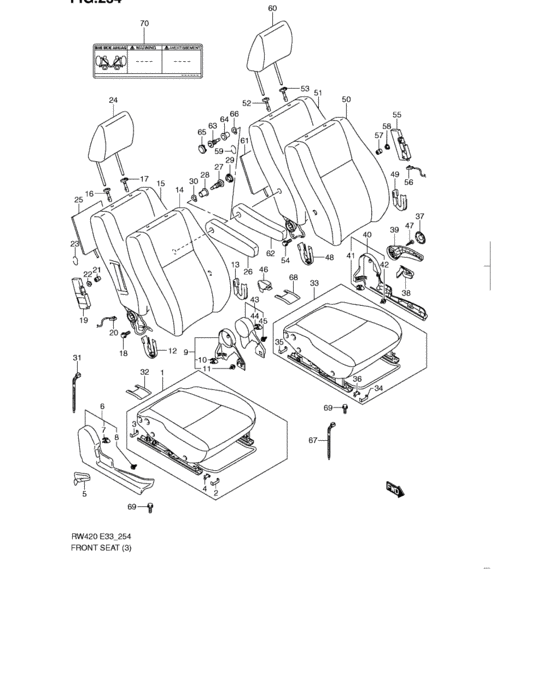

Front seat (10 MODEL) 97

#	OEM	Part name
1	85101-80JS1-GFZ	Cushion assy,fr,r
1	85101-80JS6-JUA	CUSHION ASSY,FR,R
1	85101-80JS7-JUA	Cushion Assy,fr,r
1	85101-80JS1-GGD	Cushion assy,fr,r
1	85101-80JS6-JUF	CUSHION ASSY,FR,R
1	85101-80JS7-JUF	Cushion Assy,fr,r
1	85101-80JG1-GFZ	Cushion assy,fr,r
1	85101-80JG5-JUA	CUSHION ASSY,FR,R
1	85101-80JG6-JUA	Cushion Assy,fr,r
2	86652-63J00-000	Cover,lower rail end
2	86652-63J01-000	CAP,FR ADJUSTER LWR
3	86653-63J00-000	Cover,lower rail end
3	86653-63J01-000	CAP,FR ADJUSTER LWR
4	86654-63J00-000	COVER,UPR RAIL END
5	85211-65J00-P4Z	Knob,rclng,r
5	85211-65JA0-P4Z	KNOB,RCLNG,R
5	85211-65J00-V6N	Knob,rclng,r
5	85211-65JA0-V6N	KNOB,RCLNG,R
6	85220-63J20-P4Z	COVER,RCLNG OUTSIDE,R
6	85220-63J20-V6N	COVER,RCLNG OUTSIDE,R
7	09409-10308-000	CLIP
8	09409-10313-000	CLIP
9	85240-65J00-P4Z	COVER,FR RCLNG INSIDE,R
9	85240-65J00-V6N	COVER,FR RCLNG INSIDE,R
12	85222-63J00-P4Z	COVER,FF BACK FRAME,R
12	85222-63J00-V6N	COVER,FR BACK FRAME,R
13	85242-63J00-P4Z	COVER,FR BACK FRAME,L(GRAY)
13	85242-63J00-V6N	COVER,FR BACK FRAME,L
14	85380-54LU0-GFZ	Trim comp,fr back,r
14	85380-54LU0-JUA	TRIM,FR BACK,R
14	85380-54LU0-GGD	Trim comp,fr back,r
14	85380-54LU0-JUF	TRIM,FR BACK,R
15	85305-54LR0-000	BACK S/ASSY,FR,R
16	85341-63J10-P4Z	GUIDE,HEADRESTRAINT
16	85341-63J11-P4Z	GUIDE,HEADRESTRAINT
16	85341-63J12-P4Z	Guide,headrestraint
16	85341-63J10-V6N	GUIDE,HEADRESTRAINT
16	85341-63J12-V6N	Guide,headrestraint
17	85840-63J10-P4Z	GUIDE,HEADRESTRAINT
17	85840-63J11-P4Z	GUIDE COMP,HEADRESTRAINT
17	85840-63J12-P4Z	Guide Comp,headrestraint
17	85840-63J10-V6N	GUIDE,HEADRESTRAINT
18	01550-1020A-000	Bolt - Bolt, bal sprocket
19	85350-80J00-000	MODULE ASSY,SIDE A/B,R
20	85355-57L00-000	HARNESS ASSY,SIDE AIRBAG
21	09159-06076-000	NUT
22	08319-3108A-000	NUT
23	09387-19001-000	RING
24	86401-79K00-GFY	Headrestraint assy
24	86401-79K00-JUC	HEADRESTRAINT ASSY
24	86401-79K01-JUC	HEADRESTRAINT ASSY
24	86401-79K00-GGG	Headrestraint assy
24	86401-79K00-JUH	HEADRESTRAINT ASSY,RR
25	85370-65JQ0-000	HEATER,FR BACK
26	85501-80J01-GFY	Armrest assy,fr
26	85501-80J02-JUC	ARMREST ASSY,FR
26	85501-80J01-GGG	Armrest assy,fr
26	85501-80J02-GGG	ARMREST ASSY,FR
27	85541-80J00-000	BOLT,ARMREST
28	85542-80J00-000	BUSH,ARMREST
29	85543-80J00-P4Z	CAP,FR ARMREST
29	85543-80J00-V6N	CAP,FR ARMREST
30	09164-20008-000	WASHER
31	09407-14403-000	CLAMP(L:125) - Clamp, spark plug cap
32	86658-58J90-S9K	TRIM,FR CUSHION RR
32	86658-58J90-S3R	Trim comp,fr cush rr
32	86658-58JA0-S3R	TRIM,FR CUSHION RR
33	85102-80JN0-GFZ	Cushion assy,fr,l
33	85102-80JN0-JUA	CUSHION ASSY,FR,L
33	85102-80JN0-GGD	Cushion assy,fr,l
33	85102-80JN0-JUF	CUSHION ASSY,FR,L
33	85102-80JP0-GFZ	Cushion assy,fr,l
33	85102-80JP1-JUA	CUSHION ASSY,FR,L
37	85214-63J20-P4Z	CAP,LIFTER LEVER
37	85214-63J20-V6N	CAP,LIFTER LEVER
38	85711-65J00-P4Z	Knob,rclng,l
38	85711-65JA0-P4Z	KNOB,RCLNG,L
38	85711-65J00-V6N	Knob,rclng,l
38	85711-65JA0-V6N	KNOB,RCLNG,L
39	85713-65J00-P4Z	LEVER,SEAT LIFTER,L
39	85713-65J00-V6N	LEVER,SEAT LIFTER,L
40	85720-63J20-P4Z	COVER,RCLNG OUTSIDE,L
40	85720-63J20-V6N	COVER,RCLNG OUTSIDE,L
43	85740-65J00-P4Z	COVER,FR RCLNG INSIDE,L
43	85740-65J00-V6N	COVER,FR RCLNG INSIDE,L
46	85743-63J70-000	COVER,RR RISER INSIDE,L
47	09132-05043-000	SCREW(5X10)
50	85880-54LR0-GFZ	Trim comp,fr back,l
50	85880-54LR0-JUA	TRIM,FR BACK,L
50	85880-54LR0-GGD	Trim comp,fr back,l
50	85880-54LR0-JUF	TRIM,FR BACK,L
51	85306-54LR0-000	BACK S/ASSY,FR,L
55	85850-80J00-000	MODULE ASSY,SIDE A/B,L
61	85370-63J00-000	Heater,fr back
61	85370-63J01-000	HEATER,FR BACK
69	09119-08097-000	BOLT(8X25)
70	85354-59JB1-000	LABEL,SIDE AIRBAG

OEM	Part name	Category
01550-1020A-000	Bolt - Bolt, bal sprocket	Front seat (10 MODEL)
08319-3108A-000	NUT	Front seat (10 MODEL)
09119-08097-000	BOLT(8X25)	Front seat (10 MODEL)
09132-05043-000	SCREW(5X10)	Front seat (10 MODEL)
09159-06076-000	NUT	Front seat (10 MODEL)
09164-20008-000	WASHER	Front seat (10 MODEL)
09387-19001-000	RING	Front seat (10 MODEL)
09407-14403-000	CLAMP(L:125) - Clamp, spark plug cap	Front seat (10 MODEL)
09409-10308-000	CLIP	Front seat (10 MODEL)
09409-10313-000	CLIP	Front seat (10 MODEL)
85101-80JG1-GFZ	Cushion assy,fr,r	Front seat (10 MODEL)
85101-80JG5-JUA	CUSHION ASSY,FR,R	Front seat (10 MODEL)
85101-80JG6-JUA	Cushion Assy,fr,r	Front seat (10 MODEL)
85101-80JS1-GFZ	Cushion assy,fr,r	Front seat (10 MODEL)
85101-80JS1-GGD	Cushion assy,fr,r	Front seat (10 MODEL)
85101-80JS6-JUA	CUSHION ASSY,FR,R	Front seat (10 MODEL)
85101-80JS6-JUF	CUSHION ASSY,FR,R	Front seat (10 MODEL)
85101-80JS7-JUA	Cushion Assy,fr,r	Front seat (10 MODEL)
85101-80JS7-JUF	Cushion Assy,fr,r	Front seat (10 MODEL)
85102-80JN0-GFZ	Cushion assy,fr,l	Front seat (10 MODEL)
85102-80JN0-GGD	Cushion assy,fr,l	Front seat (10 MODEL)
85102-80JN0-JUA	CUSHION ASSY,FR,L	Front seat (10 MODEL)
85102-80JN0-JUF	CUSHION ASSY,FR,L	Front seat (10 MODEL)
85102-80JP0-GFZ	Cushion assy,fr,l	Front seat (10 MODEL)
85102-80JP1-JUA	CUSHION ASSY,FR,L	Front seat (10 MODEL)
85211-65J00-P4Z	Knob,rclng,r	Front seat (10 MODEL)
85211-65J00-V6N	Knob,rclng,r	Front seat (10 MODEL)
85211-65JA0-P4Z	KNOB,RCLNG,R	Front seat (10 MODEL)
85211-65JA0-V6N	KNOB,RCLNG,R	Front seat (10 MODEL)
85214-63J20-P4Z	CAP,LIFTER LEVER	Front seat (10 MODEL)
85214-63J20-V6N	CAP,LIFTER LEVER	Front seat (10 MODEL)
85220-63J20-P4Z	COVER,RCLNG OUTSIDE,R	Front seat (10 MODEL)
85220-63J20-V6N	COVER,RCLNG OUTSIDE,R	Front seat (10 MODEL)
85222-63J00-P4Z	COVER,FF BACK FRAME,R	Front seat (10 MODEL)
85222-63J00-V6N	COVER,FR BACK FRAME,R	Front seat (10 MODEL)
85240-65J00-P4Z	COVER,FR RCLNG INSIDE,R	Front seat (10 MODEL)
85240-65J00-V6N	COVER,FR RCLNG INSIDE,R	Front seat (10 MODEL)
85242-63J00-P4Z	COVER,FR BACK FRAME,L(GRAY)	Front seat (10 MODEL)
85242-63J00-V6N	COVER,FR BACK FRAME,L	Front seat (10 MODEL)
85305-54LR0-000	BACK S/ASSY,FR,R	Front seat (10 MODEL)
85306-54LR0-000	BACK S/ASSY,FR,L	Front seat (10 MODEL)
85341-63J10-P4Z	GUIDE,HEADRESTRAINT	Front seat (10 MODEL)
85341-63J10-V6N	GUIDE,HEADRESTRAINT	Front seat (10 MODEL)
85341-63J11-P4Z	GUIDE,HEADRESTRAINT	Front seat (10 MODEL)
85341-63J12-P4Z	Guide,headrestraint	Front seat (10 MODEL)
85341-63J12-V6N	Guide,headrestraint	Front seat (10 MODEL)
85350-80J00-000	MODULE ASSY,SIDE A/B,R	Front seat (10 MODEL)
85354-59JB1-000	LABEL,SIDE AIRBAG	Front seat (10 MODEL)
85355-57L00-000	HARNESS ASSY,SIDE AIRBAG	Front seat (10 MODEL)
85370-63J00-000	Heater,fr back	Front seat (10 MODEL)
85370-63J01-000	HEATER,FR BACK	Front seat (10 MODEL)
85370-65JQ0-000	HEATER,FR BACK	Front seat (10 MODEL)
85380-54LU0-GFZ	Trim comp,fr back,r	Front seat (10 MODEL)
85380-54LU0-GGD	Trim comp,fr back,r	Front seat (10 MODEL)
85380-54LU0-JUA	TRIM,FR BACK,R	Front seat (10 MODEL)
85380-54LU0-JUF	TRIM,FR BACK,R	Front seat (10 MODEL)
85501-80J01-GFY	Armrest assy,fr	Front seat (10 MODEL)
85501-80J01-GGG	Armrest assy,fr	Front seat (10 MODEL)
85501-80J02-GGG	ARMREST ASSY,FR	Front seat (10 MODEL)
85501-80J02-JUC	ARMREST ASSY,FR	Front seat (10 MODEL)
85541-80J00-000	BOLT,ARMREST	Front seat (10 MODEL)
85542-80J00-000	BUSH,ARMREST	Front seat (10 MODEL)
85543-80J00-P4Z	CAP,FR ARMREST	Front seat (10 MODEL)
85543-80J00-V6N	CAP,FR ARMREST	Front seat (10 MODEL)
85711-65J00-P4Z	Knob,rclng,l	Front seat (10 MODEL)
85711-65J00-V6N	Knob,rclng,l	Front seat (10 MODEL)
85711-65JA0-P4Z	KNOB,RCLNG,L	Front seat (10 MODEL)
85711-65JA0-V6N	KNOB,RCLNG,L	Front seat (10 MODEL)
85713-65J00-P4Z	LEVER,SEAT LIFTER,L	Front seat (10 MODEL)
85713-65J00-V6N	LEVER,SEAT LIFTER,L	Front seat (10 MODEL)
85720-63J20-P4Z	COVER,RCLNG OUTSIDE,L	Front seat (10 MODEL)
85720-63J20-V6N	COVER,RCLNG OUTSIDE,L	Front seat (10 MODEL)
85740-65J00-P4Z	COVER,FR RCLNG INSIDE,L	Front seat (10 MODEL)
85740-65J00-V6N	COVER,FR RCLNG INSIDE,L	Front seat (10 MODEL)
85743-63J70-000	COVER,RR RISER INSIDE,L	Front seat (10 MODEL)
85840-63J10-P4Z	GUIDE,HEADRESTRAINT	Front seat (10 MODEL)
85840-63J10-V6N	GUIDE,HEADRESTRAINT	Front seat (10 MODEL)
85840-63J11-P4Z	GUIDE COMP,HEADRESTRAINT	Front seat (10 MODEL)
85840-63J12-P4Z	Guide Comp,headrestraint	Front seat (10 MODEL)
85850-80J00-000	MODULE ASSY,SIDE A/B,L	Front seat (10 MODEL)
85880-54LR0-GFZ	Trim comp,fr back,l	Front seat (10 MODEL)
85880-54LR0-GGD	Trim comp,fr back,l	Front seat (10 MODEL)
85880-54LR0-JUA	TRIM,FR BACK,L	Front seat (10 MODEL)
85880-54LR0-JUF	TRIM,FR BACK,L	Front seat (10 MODEL)
86401-79K00-GFY	Headrestraint assy	Front seat (10 MODEL)
86401-79K00-GGG	Headrestraint assy	Front seat (10 MODEL)
86401-79K00-JUC	HEADRESTRAINT ASSY	Front seat (10 MODEL)
86401-79K00-JUH	HEADRESTRAINT ASSY,RR	Front seat (10 MODEL)
86401-79K01-JUC	HEADRESTRAINT ASSY	Front seat (10 MODEL)
86652-63J00-000	Cover,lower rail end	Front seat (10 MODEL)
86652-63J01-000	CAP,FR ADJUSTER LWR	Front seat (10 MODEL)
86653-63J00-000	Cover,lower rail end	Front seat (10 MODEL)
86653-63J01-000	CAP,FR ADJUSTER LWR	Front seat (10 MODEL)
86654-63J00-000	COVER,UPR RAIL END	Front seat (10 MODEL)
86658-58J90-S3R	Trim comp,fr cush rr	Front seat (10 MODEL)
86658-58J90-S9K	TRIM,FR CUSHION RR	Front seat (10 MODEL)
86658-58JA0-S3R	TRIM,FR CUSHION RR	Front seat (10 MODEL)

Source: Public OEM parts-catalog data
Variants: 2 / 108
Category: 252
Collected: 2026-08-01
