RW420

Suzuki SX4 · 4,448 parts · 252 categories
RW420 ×

← Back to categories

4,448 items

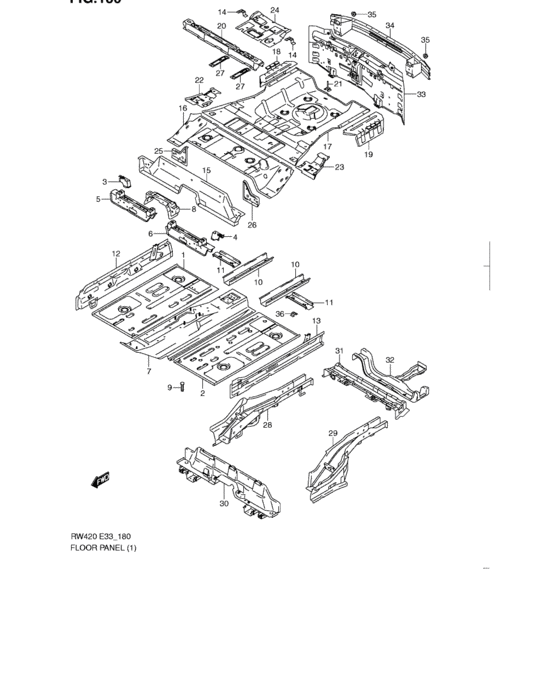

Floor panel (08,09 MODEL:4DR) 36
#OEMPart name
1 61111-63J10-000 PAN,MAIN FLOOR,R
2 61161-63J10-000 PAN,MAIN FLOOR,L
3 61120-80J01-000 BRACKET,FR SEAT RR OUT,R
4 61170-80J01-000 BRACKET,FR SEAT RR OUT,L
5 61130-54L10-000 CROSSMEMBER,FLR PAN UPR,R
6 61180-54L10-000 CROSSMEMBER,FLR PAN UPR,L
7 61210-54L00-000 TUNNEL,MAIN FLOOR
8 61230-79J01-000 BRACKET,FR SEAT RR INSIDE
9 09119-05018-000 BOLT(8X35)
10 61241-63J00-000 MEMBER,FL SIDE RR
11 61242-54L00-000 CROSSMEMBER,FLR PAN LWR
12 61310-80J00-000 PANEL,SIDE SILL INNER,R
13 61320-80J00-000 PANEL,SIDE SILL INNER,L
14 58147-52D00-000 BRACKET,RR SEAT CUSHION
15 61511-80J00-000 PANEL,REAR FLOOR FR
16 61512-75K00-000 PANEL,REAR FLOOR CTR
17 61513-75K00-000 PANEL,REAR FLOOR RR
18 61520-75K00-000 EXTENSION,RR FLOOR SIDE,R
19 61530-75K00-000 EXTENSION,RR FLOOR SIDE,L
20 61516-56KA0-000 MEMBER,RR SEAT SUPPORT
21 61518-80J00-000 BRACKET,SPARE TIRE
22 61521-75K00-000 REINF,RR SEAT BELT SIDE,R
23 61522-75K00-000 REINF,RR SEAT BELT SIDE,L
24 61523-56KA0-000 REINFORCEMENT,RR SEAT BELT CTR
25 61531-79J00-000 REINFORCEMENT,RR FL FR PANEL,R
26 61532-79J00-000 REINFORCEMENT,RR FL FR PANEL,L
27 61541-56KA0-000 REINFORCEMENT,RR FL CTR
28 62100-75K10-000 MEMBER,RR FL SIDE,R
29 62300-75K10-000 MEMBER,RR FL SIDE,L
30 62600-54L00-000 CROSSMEMBER,RR FLR FR
31 62700-75K00-000 CROSSMEMBER,RR FLR CTR
32 62900-75K00-000 CROSSMEMBER,RR FLR RR
33 65500-75K00-000 PANEL,BACK
34 65560-80J00-000 MEMBER,RR BUMPER
35 08316-1008A-000 NUT - Nut, idle gear shaft
36 58232-60B00-000 BRACKET,PARKING CABLE
