Search › Model › RW420
RW420

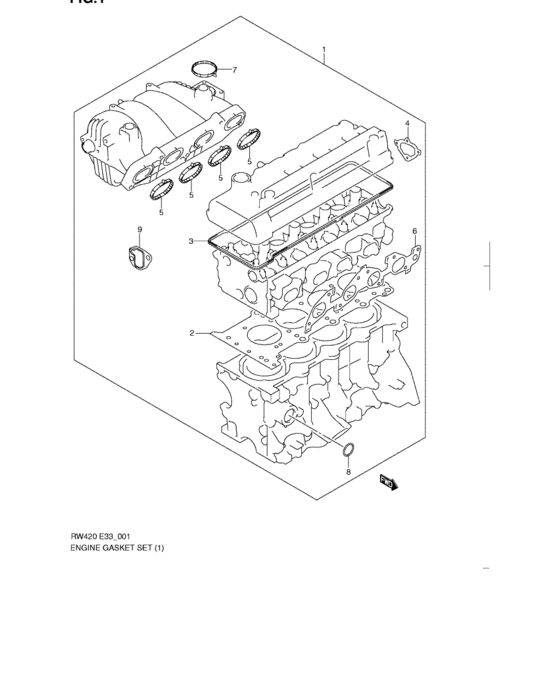

Engine gasket set (2007-2009) 9
| # | OEM | Part name |
|---|---|---|
| 1 | 11401-80870-000 | GASKET SET,ENGINE |
| 2 | 11141-77E02-000 | GASKET, CYLINDER HEAD |
| 3 | 11189-65J00-000 | GASKET,CYL HEAD COVER |
| 4 | 17579-77EA0-000 | GASKET,WTR OUTLET CAP |
| 5 | 13119-80J00-000 | GASKET,INTK MANF |
| 6 | 14140-65D02-000 | GASKET,EXH MANF |
| 7 | 13421-80J00-000 | GASKET,THROTTLE BODY |
| 8 | 17611-65J00-000 | O-RING,WATER PUMP |
| 9 | 12835-77E00-000 | GASKET,TENSIONER ADJ,NO.2 |
| OEM | Part name | Category |
|---|---|---|
| 11141-77E02-000 | GASKET, CYLINDER HEAD | Engine gasket set (2007-2009) |
| 11189-65J00-000 | GASKET,CYL HEAD COVER | Engine gasket set (2007-2009) |
| 11401-80870-000 | GASKET SET,ENGINE | Engine gasket set (2007-2009) |
| 12835-77E00-000 | GASKET,TENSIONER ADJ,NO.2 | Engine gasket set (2007-2009) |
| 13119-80J00-000 | GASKET,INTK MANF | Engine gasket set (2007-2009) |
| 13421-80J00-000 | GASKET,THROTTLE BODY | Engine gasket set (2007-2009) |
| 14140-65D02-000 | GASKET,EXH MANF | Engine gasket set (2007-2009) |
| 17579-77EA0-000 | GASKET,WTR OUTLET CAP | Engine gasket set (2007-2009) |
| 17611-65J00-000 | O-RING,WATER PUMP | Engine gasket set (2007-2009) |
