Search › Model › RW420
RW420

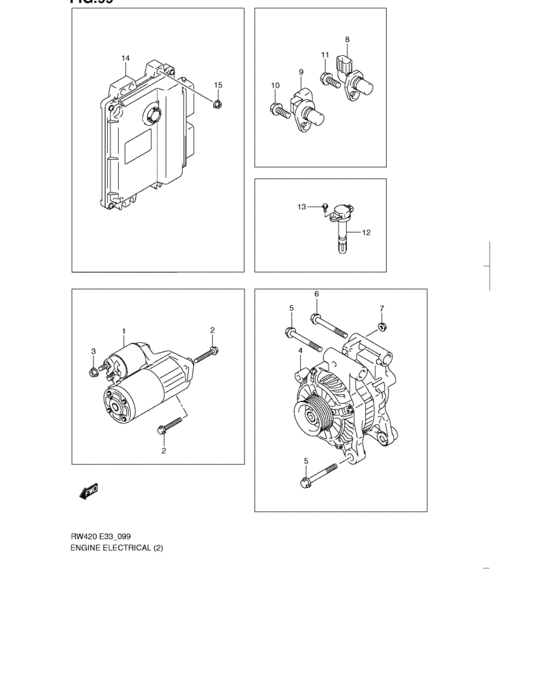

Engine electrical (2010) 19
| # | OEM | Part name |
|---|---|---|
| 1 | 31100-78K00-000 | MOTOR ASSY,STARTING |
| 1 | 31100-78K01-000 | Motor Assy,starting |
| 2 | 01550-1060A-000 | Bolt |
| 3 | 08316-1008A-000 | NUT - Nut, idle gear shaft |
| 4 | 31400-78K20-000 | Generator assy |
| 4 | 31400-78K23-000 | GENERATOR ASSY |
| 5 | 09103-10402-000 | BOLT(10X95) |
| 6 | 09103-10436-000 | BOLT(10X105) |
| 8 | 33220-51K00-000 | SENSOR ASSY,POSITION |
| 8 | 33220-50M00-000 | SENSOR ASSY,POSITION |
| 9 | 33220-63J00-000 | SENSOR ASSY,POSITION |
| 9 | 33220-64L20-000 | SENSOR ASSY, CRANK POSITION |
| 10 | 09103-06283-000 | BOLT(6X16) |
| 11 | 01550-0616A-000 | Bolt |
| 12 | 33400-51K20-000 | Coil assy,ignition |
| 12 | 33400-51K40-000 | COIL ASSY,IGNITION |
| 13 | 09135-06024-000 | BOLT(6X23) |
| 14 | 33910-54LB0-000 | BASE ASSY,EPI CONT |
| 15 | 08316-1006A-000 | NUT |
| OEM | Part name | Category |
|---|---|---|
| 01550-0616A-000 | Bolt | Engine electrical (2010) |
| 01550-1060A-000 | Bolt | Engine electrical (2010) |
| 08316-1006A-000 | NUT | Engine electrical (2010) |
| 08316-1008A-000 | NUT - Nut, idle gear shaft | Engine electrical (2010) |
| 09103-06283-000 | BOLT(6X16) | Engine electrical (2010) |
| 09103-10402-000 | BOLT(10X95) | Engine electrical (2010) |
| 09103-10436-000 | BOLT(10X105) | Engine electrical (2010) |
| 09135-06024-000 | BOLT(6X23) | Engine electrical (2010) |
| 31100-78K00-000 | MOTOR ASSY,STARTING | Engine electrical (2010) |
| 31100-78K01-000 | Motor Assy,starting | Engine electrical (2010) |
| 31400-78K20-000 | Generator assy | Engine electrical (2010) |
| 31400-78K23-000 | GENERATOR ASSY | Engine electrical (2010) |
| 33220-50M00-000 | SENSOR ASSY,POSITION | Engine electrical (2010) |
| 33220-51K00-000 | SENSOR ASSY,POSITION | Engine electrical (2010) |
| 33220-63J00-000 | SENSOR ASSY,POSITION | Engine electrical (2010) |
| 33220-64L20-000 | SENSOR ASSY, CRANK POSITION | Engine electrical (2010) |
| 33400-51K20-000 | Coil assy,ignition | Engine electrical (2010) |
| 33400-51K40-000 | COIL ASSY,IGNITION | Engine electrical (2010) |
| 33910-54LB0-000 | BASE ASSY,EPI CONT | Engine electrical (2010) |
