RW420

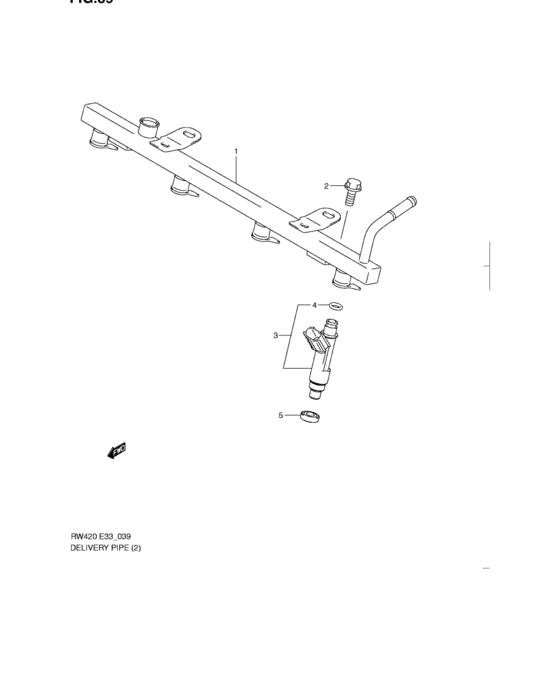

Delivery pipe (2010) 5
| # | OEM | Part name |
|---|---|---|
| 1 | 15730-54L00-000 | PIPE,DELIVERY |
| 2 | 01550-0820A-000 | Bolt - Bolt, funnel bracket |
| 3 | 15710-54L00-000 | INJECTOR ASSY,FUEL |
| 4 | 15710-09300-000 | O-RING |
| 5 | 09320-08062-000 | CUSHION |
| OEM | Part name | Category |
|---|---|---|
| 01550-0820A-000 | Bolt - Bolt, funnel bracket | Delivery pipe (2010) |
| 09320-08062-000 | CUSHION | Delivery pipe (2010) |
| 15710-09300-000 | O-RING | Delivery pipe (2010) |
| 15710-54L00-000 | INJECTOR ASSY,FUEL | Delivery pipe (2010) |
| 15730-54L00-000 | PIPE,DELIVERY | Delivery pipe (2010) |
