RW420

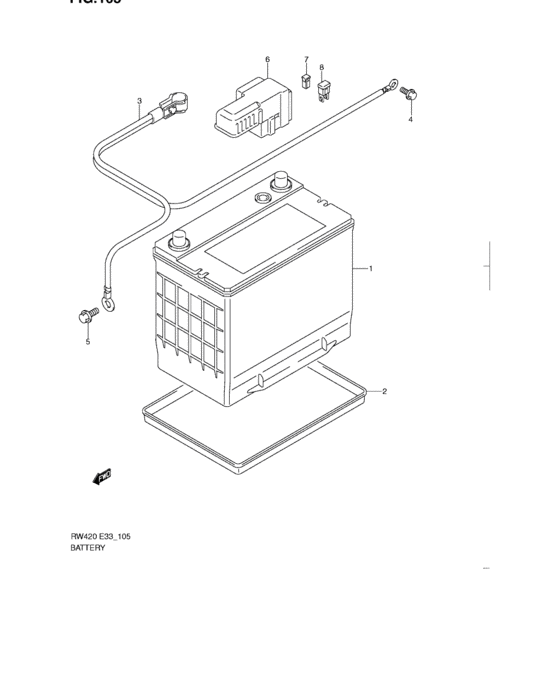

Battery (BATTERY) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 33610-80J00-000 | Battery assy - Delkor,12v,55ah |
| 2 | 33660-65D20-000 | TRAY,BATTERY |
| 3 | 33850-80J40-000 | CABLE,BTRY GND |
| 3 | 33850-54L40-000 | CABLE,BTRY GND |
| 4 | 09115-06005-000 | BOLT(6X16) |
| 5 | 01550-0812A-000 | Bolt |
| 5 | 01550-1016A-000 | Bolt - Plug, oil gallery |
| 6 | 36694-80J00-000 | COVER,BATTERY TERMINAL |
| 7 | 09481-50401-000 | FUSE(50A) |
| 8 | 09481-80301-000 | FUSE(80A) |
| OEM | Part name | Category |
|---|---|---|
| 01550-0812A-000 | Bolt | Battery (BATTERY) |
| 01550-1016A-000 | Bolt - Plug, oil gallery | Battery (BATTERY) |
| 09115-06005-000 | BOLT(6X16) | Battery (BATTERY) |
| 09481-50401-000 | FUSE(50A) | Battery (BATTERY) |
| 09481-80301-000 | FUSE(80A) | Battery (BATTERY) |
| 33610-80J00-000 | Battery assy - Delkor,12v,55ah | Battery (BATTERY) |
| 33660-65D20-000 | TRAY,BATTERY | Battery (BATTERY) |
| 33850-54L40-000 | CABLE,BTRY GND | Battery (BATTERY) |
| 33850-80J40-000 | CABLE,BTRY GND | Battery (BATTERY) |
| 36694-80J00-000 | COVER,BATTERY TERMINAL | Battery (BATTERY) |
