Search › Model › RW420
RW420

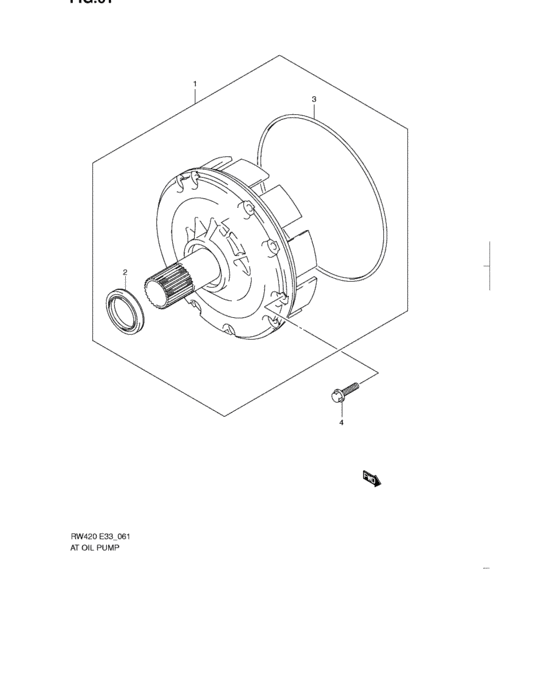

At oil pump (AT) 4
| # | OEM | Part name |
|---|---|---|
| 1 | 22800-59JT1-000 | PUMP SET,OIL |
| 2 | 22881-60G11-000 | SEAL,OIL PUMP OIL |
| 3 | 22851-53J10-000 | O-RING,OIL PUMP COVER |
| 4 | 22893-59J10-000 | BOLT,OIL PUMP ASSY |
| OEM | Part name | Category |
|---|---|---|
| 22800-59JT1-000 | PUMP SET,OIL | At oil pump (AT) |
| 22851-53J10-000 | O-RING,OIL PUMP COVER | At oil pump (AT) |
| 22881-60G11-000 | SEAL,OIL PUMP OIL | At oil pump (AT) |
| 22893-59J10-000 | BOLT,OIL PUMP ASSY | At oil pump (AT) |
