Search › Model › RW419D
RW419D

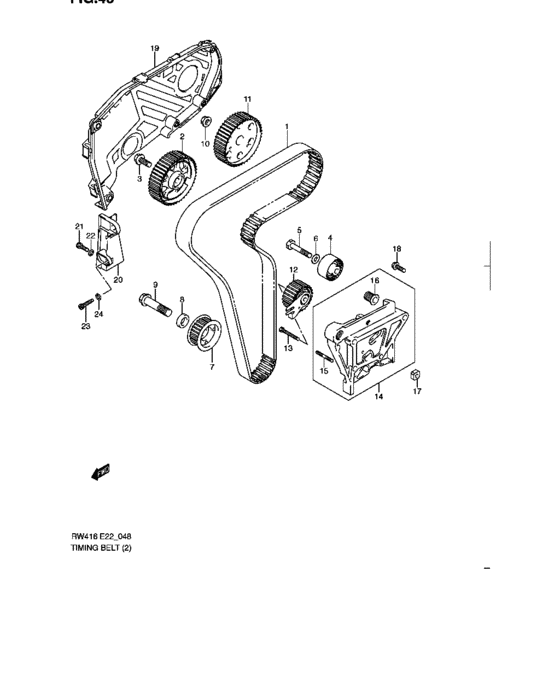

Timing belt (RW419D) 25
| # | OEM | Part name |
|---|---|---|
| 1 | 12761-79J50-000 | Belt, timing |
| 2 | 12741-79J50-000 | Pulley, camshaft timing |
| 3 | 12743-79J50-000 | Bolt |
| 4 | 12781-79J50-000 | Idler, timing belt |
| 5 | 12784-79J50-000 | Bolt - 10x67 |
| 6 | 12785-79J50-000 | Washer |
| 7 | 12631-79J50-000 | Pulley, crankshaft timing |
| 8 | 12633-79J50-000 | Spacer |
| 9 | 12636-79J50-000 | Bolt - M16 |
| 10 | 12812-79J50-000 | Nut - M14 |
| 11 | 12811-79J50-000 | Pulley, injection pump |
| 12 | 12810-79J52-000 | Tensioner assy, timing belt |
| 13 | 12782-79J50-000 | Bolt |
| 14 | 12814-79J50-000 | Bracket assy, tensioner |
| 15 | 12816-79J50-000 | Stud bolt |
| 16 | 12817-79J50-000 | Bush |
| 17 | 12783-79J50-000 | Nut |
| 18 | 12815-79J50-000 | Bolt - 8x25 |
| 19 | 11382-79J50-000 | Cover, timing belt |
| 20 | 11387-79J50-000 | Protector |
| 21 | 11385-79J50-000 | Bolt - 6x30 |
| 22 | 11386-79J50-000 | Washer |
| 23 | 11384-79J60-000 | Bolt - 8x20 |
| 24 | 11383-79J50-000 | Washer |
| 25 | 11388-79J50-000 | Clamp |
| OEM | Part name | Category |
|---|---|---|
| 11382-79J50-000 | Cover, timing belt | Timing belt (RW419D) |
| 11383-79J50-000 | Washer | Timing belt (RW419D) |
| 11384-79J60-000 | Bolt - 8x20 | Timing belt (RW419D) |
| 11385-79J50-000 | Bolt - 6x30 | Timing belt (RW419D) |
| 11386-79J50-000 | Washer | Timing belt (RW419D) |
| 11387-79J50-000 | Protector | Timing belt (RW419D) |
| 11388-79J50-000 | Clamp | Timing belt (RW419D) |
| 12631-79J50-000 | Pulley, crankshaft timing | Timing belt (RW419D) |
| 12633-79J50-000 | Spacer | Timing belt (RW419D) |
| 12636-79J50-000 | Bolt - M16 | Timing belt (RW419D) |
| 12741-79J50-000 | Pulley, camshaft timing | Timing belt (RW419D) |
| 12743-79J50-000 | Bolt | Timing belt (RW419D) |
| 12761-79J50-000 | Belt, timing | Timing belt (RW419D) |
| 12781-79J50-000 | Idler, timing belt | Timing belt (RW419D) |
| 12782-79J50-000 | Bolt | Timing belt (RW419D) |
| 12783-79J50-000 | Nut | Timing belt (RW419D) |
| 12784-79J50-000 | Bolt - 10x67 | Timing belt (RW419D) |
| 12785-79J50-000 | Washer | Timing belt (RW419D) |
| 12810-79J52-000 | Tensioner assy, timing belt | Timing belt (RW419D) |
| 12811-79J50-000 | Pulley, injection pump | Timing belt (RW419D) |
| 12812-79J50-000 | Nut - M14 | Timing belt (RW419D) |
| 12814-79J50-000 | Bracket assy, tensioner | Timing belt (RW419D) |
| 12815-79J50-000 | Bolt - 8x25 | Timing belt (RW419D) |
| 12816-79J50-000 | Stud bolt | Timing belt (RW419D) |
| 12817-79J50-000 | Bush | Timing belt (RW419D) |
