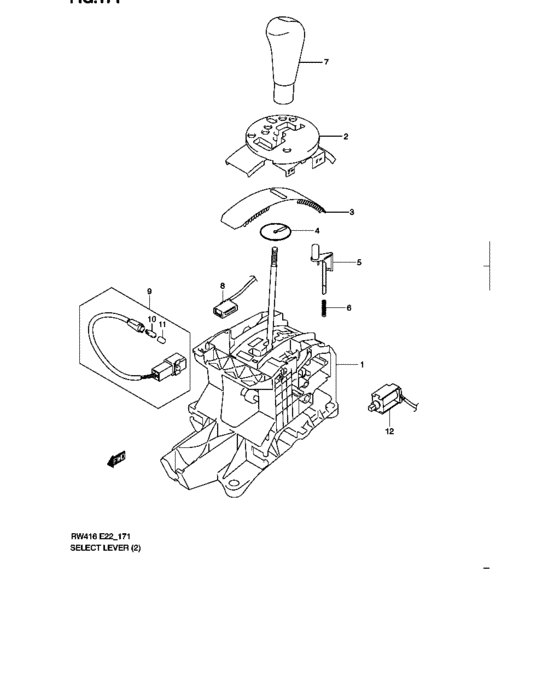

Select lever (AT:RHD)
13
| # | OEM | Part name |
|---|
| 1 |
28110-62J10-000 |
LEVER ASSY,SELECT |
| 2 |
28151-62J10-000 |
INDICATOR,SELECT LEVER |
| 3 |
28154-62J10-000 |
SLIDER,UPPER |
| 4 |
28155-62J10-000 |
SLIDER,LOWER |
| 5 |
28156-62J10-000 |
BUTTON,SHIFT LOCK |
| 6 |
28158-62J10-000 |
SPRING |
| 7 |
28160-62J11-BWK |
KNOB ASSY,SELECT LEVER |
| 7 |
28160-62J12-BWK |
KNOB ASSY,SELECT LEVER |
| 8 |
28167-62J10-000 |
SWITCH ASSY,O/D |
| 9 |
28180-62J30-000 |
LAMP ASSY,ILLUM |
| 10 |
28181-62J10-000 |
BULB |
| 11 |
28182-62J30-000 |
FILTER |
| 12 |
28610-62J10-000 |
SOLENOID ASSY,SHIFT LOCK |
| OEM |
Part name |
Category |
| 28110-62J10-000 |
LEVER ASSY,SELECT |
Select lever (AT:RHD) |
| 28151-62J10-000 |
INDICATOR,SELECT LEVER |
Select lever (AT:RHD) |
| 28154-62J10-000 |
SLIDER,UPPER |
Select lever (AT:RHD) |
| 28155-62J10-000 |
SLIDER,LOWER |
Select lever (AT:RHD) |
| 28156-62J10-000 |
BUTTON,SHIFT LOCK |
Select lever (AT:RHD) |
| 28158-62J10-000 |
SPRING |
Select lever (AT:RHD) |
| 28160-62J11-BWK |
KNOB ASSY,SELECT LEVER |
Select lever (AT:RHD) |
| 28160-62J12-BWK |
KNOB ASSY,SELECT LEVER |
Select lever (AT:RHD) |
| 28167-62J10-000 |
SWITCH ASSY,O/D |
Select lever (AT:RHD) |
| 28180-62J30-000 |
LAMP ASSY,ILLUM |
Select lever (AT:RHD) |
| 28181-62J10-000 |
BULB |
Select lever (AT:RHD) |
| 28182-62J30-000 |
FILTER |
Select lever (AT:RHD) |
| 28610-62J10-000 |
SOLENOID ASSY,SHIFT LOCK |
Select lever (AT:RHD) |
