Search › Model › RW419D
RW419D

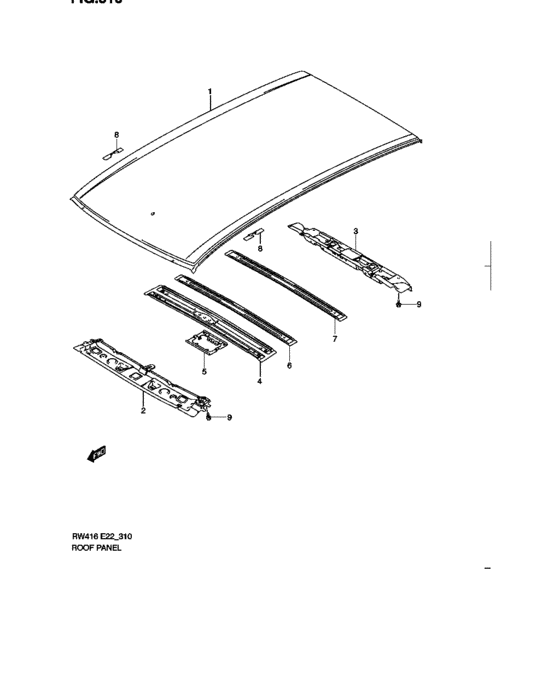

Roof panel (ROOF PANEL) 9
| # | OEM | Part name |
|---|---|---|
| 1 | 65111-79J00-000 | Panel, roof |
| 2 | 65120-79J01-000 | Rail, roof front inner |
| 3 | 65130-79J00-000 | Member, roof back inner |
| 4 | 65151-79J00-000 | MEMBER,ROOF PANEL CTR NO.1 |
| 5 | 65152-79J00-000 | BRACKET,ROOM LAMP CTR |
| 6 | 65161-79J00-000 | MEMBER,ROOF PANEL CTR NO.2 |
| 7 | 65162-79J00-000 | MEMBER,ROOF PANEL CTR NO.3 |
| 8 | 65171-63J00-000 | BRACKET,ROOF CARR |
| 9 | 01550-0612A-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01550-0612A-000 | Bolt | Roof panel (ROOF PANEL) |
| 65111-79J00-000 | Panel, roof | Roof panel (ROOF PANEL) |
| 65120-79J01-000 | Rail, roof front inner | Roof panel (ROOF PANEL) |
| 65130-79J00-000 | Member, roof back inner | Roof panel (ROOF PANEL) |
| 65151-79J00-000 | MEMBER,ROOF PANEL CTR NO.1 | Roof panel (ROOF PANEL) |
| 65152-79J00-000 | BRACKET,ROOM LAMP CTR | Roof panel (ROOF PANEL) |
| 65161-79J00-000 | MEMBER,ROOF PANEL CTR NO.2 | Roof panel (ROOF PANEL) |
| 65162-79J00-000 | MEMBER,ROOF PANEL CTR NO.3 | Roof panel (ROOF PANEL) |
| 65171-63J00-000 | BRACKET,ROOF CARR | Roof panel (ROOF PANEL) |
