RW419D

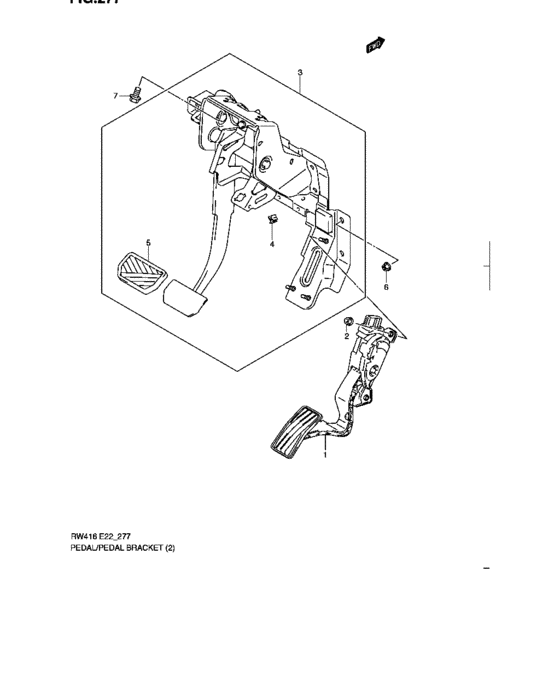

Pedal/pedal bracket (LHD:AT) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 49400-79J90-000 | Pedal assy,accelerator |
| 1 | 49400-79J91-000 | PEDAL ASSY,ACCELERATOR |
| 2 | 08316-1006A-000 | NUT |
| 3 | 49600-79J60-000 | Pedal, brake |
| 4 | 75411-76G00-000 | Clamp, Cable |
| 5 | 49751-58J10-000 | PAD,PEDAL |
| 6 | 09159-08127-000 | NUT |
| 7 | 01551-0816C-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01551-0816C-000 | Bolt | Pedal/pedal bracket (LHD:AT) |
| 08316-1006A-000 | NUT | Pedal/pedal bracket (LHD:AT) |
| 09159-08127-000 | NUT | Pedal/pedal bracket (LHD:AT) |
| 49400-79J90-000 | Pedal assy,accelerator | Pedal/pedal bracket (LHD:AT) |
| 49400-79J91-000 | PEDAL ASSY,ACCELERATOR | Pedal/pedal bracket (LHD:AT) |
| 49600-79J60-000 | Pedal, brake | Pedal/pedal bracket (LHD:AT) |
| 49751-58J10-000 | PAD,PEDAL | Pedal/pedal bracket (LHD:AT) |
| 75411-76G00-000 | Clamp, Cable | Pedal/pedal bracket (LHD:AT) |
