| 01550-0835A-000 |
Bolt |

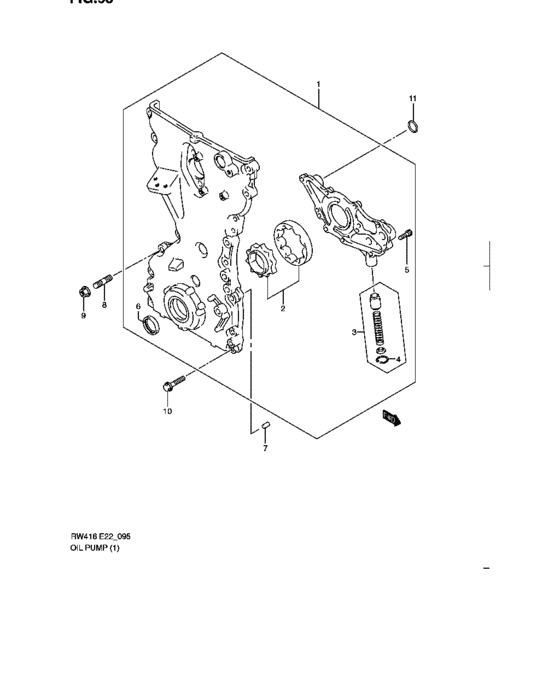

Oil pump (TYPE 1,2:RW415) |
| 07130-0625A-000 |
Bolt |
Oil pump (TYPE 1,2:RW415) |
| 08316-1008A-000 |
NUT - Nut, idle gear shaft |
Oil pump (TYPE 1,2:RW415) |
| 08331-4115A-000 |
CIRCLIP |
Oil pump (TYPE 1,2:RW415) |
| 09108-08276-000 |
BOLT,STUD |
Oil pump (TYPE 1,2:RW415) |
| 09206-06005-000 |
PIN(4X6X11) |
Oil pump (TYPE 1,2:RW415) |
| 09280-17002-000 |
O RING(D:2.4,ID:16.8) - O ring (d:2.4,id:16.8) |
Oil pump (TYPE 1,2:RW415) |
| 09283-41001-000 |
Seal,oil,41x53x6 |
Oil pump (TYPE 1,2:RW415) |
| 09283-41003-000 |
SEAL,OIL(41X53X6) |
Oil pump (TYPE 1,2:RW415) |
| 16100-69G07-000 |
Pump assy,oil |
Oil pump (TYPE 1,2:RW415) |
| 16100-69G09-000 |
PUMP ASSY,OIL (W/O ROTOR SET AND RELIEF VALVE) |
Oil pump (TYPE 1,2:RW415) |
| 16130-60A00-000 |
ROTOR SET,OIL PUMP |
Oil pump (TYPE 1,2:RW415) |
| 16150-60A20-000 |
VALVE SET,OIL PUMP RELIEF |
Oil pump (TYPE 1,2:RW415) |
