Search › Model › RW419D
RW419D

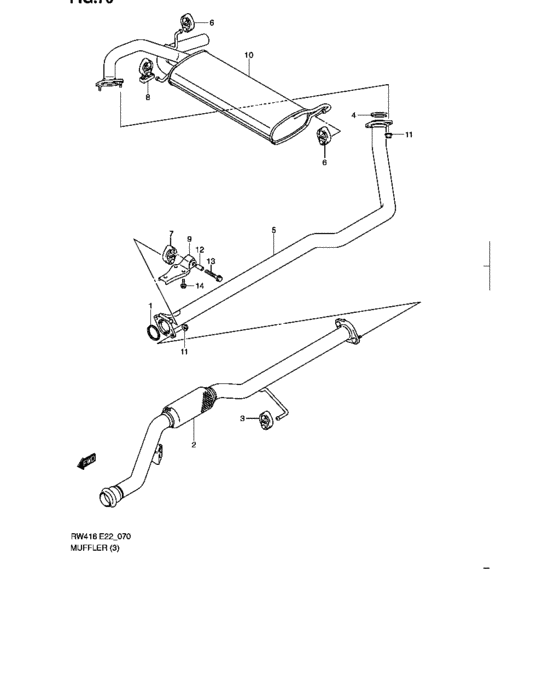

Muffler (RW416D) 14
| # | OEM | Part name |
|---|---|---|
| 1 | 14184-65J00-000 | GASKET,EXH PIPE |
| 2 | 14190-69K50-000 | Pipe, exhaust |
| 3 | 14281-80JA0-000 | MOUNTING,MUF |
| 4 | 14184-67D00-000 | GASKET,MUFFLER |
| 5 | 14230-79J50-000 | Pipe, exh center |
| 8 | 14281-80J00-000 | MOUNTING,MUF |
| 9 | 14283-79J50-000 | Bracket, exh pipe mtg no.1 |
| 10 | 14300-79J50-000 | Muffler |
| 11 | 09159-10049-000 | Nut |
| 11 | 09159-10102-000 | NUT |
| 12 | 09180-08057-000 | Spacer |
| 12 | 09180-08227-000 | SPACER(8.2X12.5X23.5) |
| 13 | 01550-0840A-000 | Bolt |
| 14 | 02162-0612A-000 | SCREW - Bolt, bracket |
| OEM | Part name | Category |
|---|---|---|
| 01550-0840A-000 | Bolt | Muffler (RW416D) |
| 02162-0612A-000 | SCREW - Bolt, bracket | Muffler (RW416D) |
| 09159-10049-000 | Nut | Muffler (RW416D) |
| 09159-10102-000 | NUT | Muffler (RW416D) |
| 09180-08057-000 | Spacer | Muffler (RW416D) |
| 09180-08227-000 | SPACER(8.2X12.5X23.5) | Muffler (RW416D) |
| 14184-65J00-000 | GASKET,EXH PIPE | Muffler (RW416D) |
| 14184-67D00-000 | GASKET,MUFFLER | Muffler (RW416D) |
| 14190-69K50-000 | Pipe, exhaust | Muffler (RW416D) |
| 14230-79J50-000 | Pipe, exh center | Muffler (RW416D) |
| 14281-80J00-000 | MOUNTING,MUF | Muffler (RW416D) |
| 14281-80JA0-000 | MOUNTING,MUF | Muffler (RW416D) |
| 14283-79J50-000 | Bracket, exh pipe mtg no.1 | Muffler (RW416D) |
| 14300-79J50-000 | Muffler | Muffler (RW416D) |
