RW419D

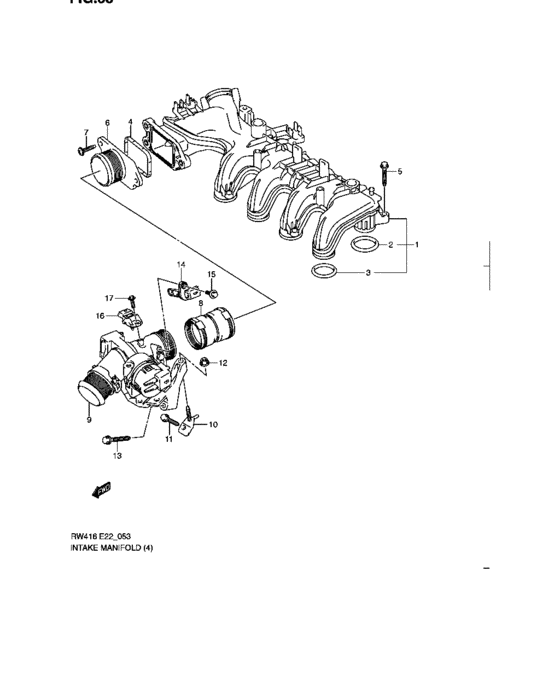

Intake manifold (RW416D) 16
| # | OEM | Part name |
|---|---|---|
| 1 | 13110-69K01-000 | Manifold, intake |
| 2 | 13111-73J00-000 | Gasket, intk manf - D:36 |
| 3 | 13112-73J00-000 | Gasket, intk manf - D:30.5 |
| 4 | 13119-69K00-000 | Gasket, intk manf |
| 5 | 11165-69K00-000 | Bolt, intk manf |
| 6 | 13141-69K00-000 | Pipe, intk manf joint |
| 7 | 13149-69K00-000 | Screw, intk joint pipe |
| 8 | 13430-69K00-000 | Hose assy, intk joint |
| 9 | 13440-69K00-000 | Valve assy, intk throttle |
| 10 | 13445-69K00-000 | Bracket, throttle valve |
| 11 | 13446-69K00-000 | Bolt, throt brkt |
| 12 | 13447-69K00-000 | Nut, throt brkt |
| 13 | 13449-69K00-000 | Bolt, throt valve |
| 14 | 13650-69K01-000 | Sensor, air temp |
| 15 | 13805-69K00-000 | Screw |
| 16 | 18590-69K00-000 | Sensor, map |
| OEM | Part name | Category |
|---|---|---|
| 11165-69K00-000 | Bolt, intk manf | Intake manifold (RW416D) |
| 13110-69K01-000 | Manifold, intake | Intake manifold (RW416D) |
| 13111-73J00-000 | Gasket, intk manf - D:36 | Intake manifold (RW416D) |
| 13112-73J00-000 | Gasket, intk manf - D:30.5 | Intake manifold (RW416D) |
| 13119-69K00-000 | Gasket, intk manf | Intake manifold (RW416D) |
| 13141-69K00-000 | Pipe, intk manf joint | Intake manifold (RW416D) |
| 13149-69K00-000 | Screw, intk joint pipe | Intake manifold (RW416D) |
| 13430-69K00-000 | Hose assy, intk joint | Intake manifold (RW416D) |
| 13440-69K00-000 | Valve assy, intk throttle | Intake manifold (RW416D) |
| 13445-69K00-000 | Bracket, throttle valve | Intake manifold (RW416D) |
| 13446-69K00-000 | Bolt, throt brkt | Intake manifold (RW416D) |
| 13447-69K00-000 | Nut, throt brkt | Intake manifold (RW416D) |
| 13449-69K00-000 | Bolt, throt valve | Intake manifold (RW416D) |
| 13650-69K01-000 | Sensor, air temp | Intake manifold (RW416D) |
| 13805-69K00-000 | Screw | Intake manifold (RW416D) |
| 18590-69K00-000 | Sensor, map | Intake manifold (RW416D) |
