Search › Model › RW419D
RW419D

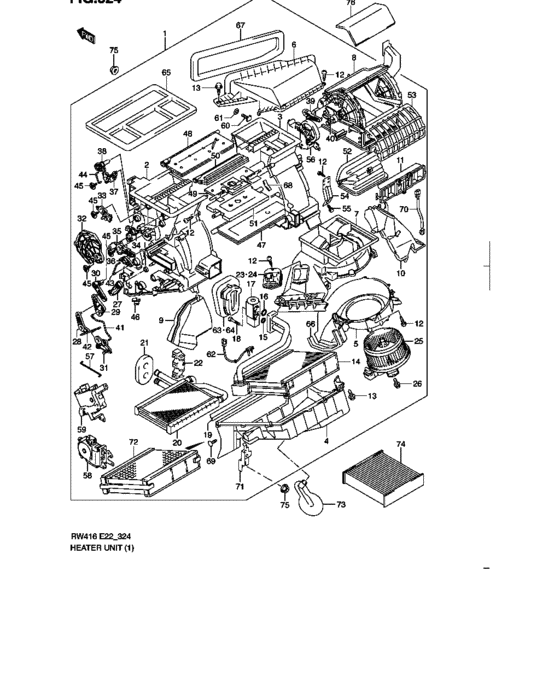

Heater unit (LHD) 94
| # | OEM | Part name |
|---|---|---|
| 1 | 74100-62JA0-000 | HVAC UNIT |
| 1 | 74100-62JC0-000 | Heater unit |
| 1 | 74100-62JE0-000 | HVAC UNIT |
| 1 | 74100-62JH0-000 | Heater unit |
| 1 | 74100-62JG0-000 | Heater unit |
| 1 | 74100-62JQ0-000 | Heater unit |
| 1 | 74100-62JK0-000 | HVAC UNIT |
| 1 | 74100-62JM0-000 | Heater unit |
| 1 | 74100-62JL0-000 | Heater unit |
| 1 | 74100-62JR0-000 | Heater unit |
| 2 | 74111-62JA0-000 | CASE,HEATER DRIVER SIDE |
| 2 | 74111-62JC0-000 | CASE,HEATER DRIVER SIDE |
| 2 | 74111-62JK0-000 | CASE,HEATER DRIVER SIDE |
| 2 | 74111-62JL0-000 | CASE,HEATER DRIVER SIDE |
| 3 | 74112-62JA0-000 | CASE,HEATER ASST SIDE |
| 3 | 74112-62JC0-000 | CASE,HEATER ASST SIDE |
| 3 | 74112-62JK0-000 | CASE,HEATER ASST SIDE |
| 3 | 74112-62JL0-000 | CASE,HEATER ASST SIDE |
| 4 | 74113-62JA0-000 | CASE,EVAPORATOR,UNDER |
| 4 | 74113-62JE0-000 | CASE,EVAPORATOR,UDR |
| 5 | 74212-62JA0-000 | CASE,BLOWER LOWER |
| 6 | 74211-62JA0-000 | CASE,BLOWER AIR INTAKE |
| 7 | 74213-62JA0-000 | Case,blower upper |
| 8 | 74214-62JA0-000 | CASE,BLOWER |
| 9 | 74114-62JA0-000 | DUCT,DRVR SIDE |
| 10 | 74115-62JA0-000 | DUCT,ASST SIDE |
| 11 | 95861-63J01-000 | HOLDER,FLTR |
| 12 | 03111-0416A-000 | SCREW |
| 13 | 03112-0616A-000 | SCREW |
| 14 | 95411-62JE0-000 | EVAPORATOR |
| 15 | 95895-50G00-000 | O-RING,D:2.4 ID:10.8 |
| 16 | 95896-50G00-000 | O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4) |
| 17 | 95431-63J00-000 | VALVE,EXP |
| 17 | 95431-63J10-000 | VALVE,EXPANSION |
| 18 | 74134-58J00-000 | Bolt |
| 19 | 95461-58J00-000 | PACKING,EVAP LWR |
| 20 | 74120-62JA0-000 | CORE,HTR |
| 21 | 74118-63J01-000 | PACKING,HTR PIPE |
| 22 | 74131-63J01-000 | BRACKET,HTR PIPE |
| 23 | 74140-58J00-000 | RESISTOR,BLO |
| 24 | 95626-63J20-000 | POWER TRANSISTOR |
| 25 | 74150-62JA0-000 | MOTOR ASSY,BLO |
| 26 | 74135-82000-000 | SCREW,MOTOR |
| 27 | 74181-62JA0-000 | LEVER,AIR MXT HOT |
| 28 | 74182-62JA0-000 | LEVER,AIR MXT HOT MID |
| 29 | 74183-62JA0-000 | LEVER,AIR MXT COOL MID |
| 30 | 74184-62JA0-000 | LEVER,AIR MXT COOL DR |
| 31 | 74818-62JA0-000 | LEVER,AIR MXT |
| 32 | 74187-62JA0-000 | PLATE,MODE |
| 32 | 74187-62JK0-000 | PLATE,MODE |
| 33 | 74191-63J20-000 | LEVER,FACE MID |
| 34 | 74192-63J20-000 | LEVER,FACE DR |
| 35 | 74193-63J20-000 | LEVER,FOOT MID |
| 36 | 74194-63J20-000 | LEVER,FOOT DR |
| 37 | 74195-63J20-000 | LEVER,DFR MDL |
| 38 | 74196-63J20-000 | LEVER,DFR DR |
| 39 | 74282-63J00-000 | LEVER,FRESH AIR |
| 40 | 74281-63J00-000 | LEVER,FRESH AIR |
| 41 | 74186-62JA0-000 | ROD,AIR MIXTURE COOL |
| 42 | 74185-62JA0-000 | ROD,AIR MIXTURE |
| 43 | 74197-63J00-000 | ROD,FOOT |
| 44 | 74198-63J00-000 | ROD,DFR |
| 45 | 74183-82005-000 | SCREW,LINK |
| 46 | 74151-50F00-000 | CABLE |
| 47 | 74171-63J00-000 | DOOR,AIR MXT HOT |
| 48 | 74175-62JA0-000 | DOOR,AIR MIXTURE COOL |
| 49 | 74172-62JA0-000 | DOOR,FACE |
| 50 | 74173-63J00-000 | DOOR,DFR |
| 51 | 74174-63J00-000 | DOOR,FOOT |
| 52 | 74173-72J00-000 | DOOR,FRESH AIR |
| 53 | 74215-63J00-000 | PLATE |
| 54 | 95675-62JA0-000 | BRACKET |
| 55 | 01560-0620A-000 | Bolt |
| 56 | 95652-62JA0-000 | ACTUATOR,FRESH AIR |
| 57 | 74819-62JK0-000 | ROD |
| 58 | 95651-62JK0-000 | ACTUATOR,AIR MIXTURE |
| 59 | 95653-62JK0-000 | ACTUATOR,MODE |
| 60 | 74115-65D00-000 | Bolt |
| 61 | 74119-78F10-000 | BUSH |
| 62 | 95541-63J21-000 | THERMISTOR |
| 63 | 95465-62JA0-000 | COVER |
| 64 | 95465-62JE0-000 | COVER |
| 65 | 74116-63J00-000 | PACKING,FACE DFR |
| 66 | 74117-63J00-000 | PACKING |
| 67 | 74119-63J00-000 | PACKING,AIR INTK |
| 68 | 74129-63J00-000 | PACKING,LWR |
| 69 | 74119-54G00-000 | BUSH |
| 70 | 95536-62JE0-000 | HARNESS,WIRING |
| 71 | 74216-62JA0-000 | BRACKET |
| 72 | 74240-62J00-000 | PLATE |
| 73 | 95481-62J10-000 | Hose, drain |
| 74 | 95860-62J00-000 | Filter |
| 75 | 08361-2506A-000 | NUT |
| 76 | 73666-79J00-000 | Silencer, duct side |
| OEM | Part name | Category |
|---|---|---|
| 01560-0620A-000 | Bolt | Heater unit (LHD) |
| 03111-0416A-000 | SCREW | Heater unit (LHD) |
| 03112-0616A-000 | SCREW | Heater unit (LHD) |
| 08361-2506A-000 | NUT | Heater unit (LHD) |
| 73666-79J00-000 | Silencer, duct side | Heater unit (LHD) |
| 74100-62JA0-000 | HVAC UNIT | Heater unit (LHD) |
| 74100-62JC0-000 | Heater unit | Heater unit (LHD) |
| 74100-62JE0-000 | HVAC UNIT | Heater unit (LHD) |
| 74100-62JG0-000 | Heater unit | Heater unit (LHD) |
| 74100-62JH0-000 | Heater unit | Heater unit (LHD) |
| 74100-62JK0-000 | HVAC UNIT | Heater unit (LHD) |
| 74100-62JL0-000 | Heater unit | Heater unit (LHD) |
| 74100-62JM0-000 | Heater unit | Heater unit (LHD) |
| 74100-62JQ0-000 | Heater unit | Heater unit (LHD) |
| 74100-62JR0-000 | Heater unit | Heater unit (LHD) |
| 74111-62JA0-000 | CASE,HEATER DRIVER SIDE | Heater unit (LHD) |
| 74111-62JC0-000 | CASE,HEATER DRIVER SIDE | Heater unit (LHD) |
| 74111-62JK0-000 | CASE,HEATER DRIVER SIDE | Heater unit (LHD) |
| 74111-62JL0-000 | CASE,HEATER DRIVER SIDE | Heater unit (LHD) |
| 74112-62JA0-000 | CASE,HEATER ASST SIDE | Heater unit (LHD) |
| 74112-62JC0-000 | CASE,HEATER ASST SIDE | Heater unit (LHD) |
| 74112-62JK0-000 | CASE,HEATER ASST SIDE | Heater unit (LHD) |
| 74112-62JL0-000 | CASE,HEATER ASST SIDE | Heater unit (LHD) |
| 74113-62JA0-000 | CASE,EVAPORATOR,UNDER | Heater unit (LHD) |
| 74113-62JE0-000 | CASE,EVAPORATOR,UDR | Heater unit (LHD) |
| 74114-62JA0-000 | DUCT,DRVR SIDE | Heater unit (LHD) |
| 74115-62JA0-000 | DUCT,ASST SIDE | Heater unit (LHD) |
| 74115-65D00-000 | Bolt | Heater unit (LHD) |
| 74116-63J00-000 | PACKING,FACE DFR | Heater unit (LHD) |
| 74117-63J00-000 | PACKING | Heater unit (LHD) |
| 74118-63J01-000 | PACKING,HTR PIPE | Heater unit (LHD) |
| 74119-54G00-000 | BUSH | Heater unit (LHD) |
| 74119-63J00-000 | PACKING,AIR INTK | Heater unit (LHD) |
| 74119-78F10-000 | BUSH | Heater unit (LHD) |
| 74120-62JA0-000 | CORE,HTR | Heater unit (LHD) |
| 74129-63J00-000 | PACKING,LWR | Heater unit (LHD) |
| 74131-63J01-000 | BRACKET,HTR PIPE | Heater unit (LHD) |
| 74134-58J00-000 | Bolt | Heater unit (LHD) |
| 74135-82000-000 | SCREW,MOTOR | Heater unit (LHD) |
| 74140-58J00-000 | RESISTOR,BLO | Heater unit (LHD) |
| 74150-62JA0-000 | MOTOR ASSY,BLO | Heater unit (LHD) |
| 74151-50F00-000 | CABLE | Heater unit (LHD) |
| 74171-63J00-000 | DOOR,AIR MXT HOT | Heater unit (LHD) |
| 74172-62JA0-000 | DOOR,FACE | Heater unit (LHD) |
| 74173-63J00-000 | DOOR,DFR | Heater unit (LHD) |
| 74173-72J00-000 | DOOR,FRESH AIR | Heater unit (LHD) |
| 74174-63J00-000 | DOOR,FOOT | Heater unit (LHD) |
| 74175-62JA0-000 | DOOR,AIR MIXTURE COOL | Heater unit (LHD) |
| 74181-62JA0-000 | LEVER,AIR MXT HOT | Heater unit (LHD) |
| 74182-62JA0-000 | LEVER,AIR MXT HOT MID | Heater unit (LHD) |
| 74183-62JA0-000 | LEVER,AIR MXT COOL MID | Heater unit (LHD) |
| 74183-82005-000 | SCREW,LINK | Heater unit (LHD) |
| 74184-62JA0-000 | LEVER,AIR MXT COOL DR | Heater unit (LHD) |
| 74185-62JA0-000 | ROD,AIR MIXTURE | Heater unit (LHD) |
| 74186-62JA0-000 | ROD,AIR MIXTURE COOL | Heater unit (LHD) |
| 74187-62JA0-000 | PLATE,MODE | Heater unit (LHD) |
| 74187-62JK0-000 | PLATE,MODE | Heater unit (LHD) |
| 74191-63J20-000 | LEVER,FACE MID | Heater unit (LHD) |
| 74192-63J20-000 | LEVER,FACE DR | Heater unit (LHD) |
| 74193-63J20-000 | LEVER,FOOT MID | Heater unit (LHD) |
| 74194-63J20-000 | LEVER,FOOT DR | Heater unit (LHD) |
| 74195-63J20-000 | LEVER,DFR MDL | Heater unit (LHD) |
| 74196-63J20-000 | LEVER,DFR DR | Heater unit (LHD) |
| 74197-63J00-000 | ROD,FOOT | Heater unit (LHD) |
| 74198-63J00-000 | ROD,DFR | Heater unit (LHD) |
| 74211-62JA0-000 | CASE,BLOWER AIR INTAKE | Heater unit (LHD) |
| 74212-62JA0-000 | CASE,BLOWER LOWER | Heater unit (LHD) |
| 74213-62JA0-000 | Case,blower upper | Heater unit (LHD) |
| 74214-62JA0-000 | CASE,BLOWER | Heater unit (LHD) |
| 74215-63J00-000 | PLATE | Heater unit (LHD) |
| 74216-62JA0-000 | BRACKET | Heater unit (LHD) |
| 74240-62J00-000 | PLATE | Heater unit (LHD) |
| 74281-63J00-000 | LEVER,FRESH AIR | Heater unit (LHD) |
| 74282-63J00-000 | LEVER,FRESH AIR | Heater unit (LHD) |
| 74818-62JA0-000 | LEVER,AIR MXT | Heater unit (LHD) |
| 74819-62JK0-000 | ROD | Heater unit (LHD) |
| 95411-62JE0-000 | EVAPORATOR | Heater unit (LHD) |
| 95431-63J00-000 | VALVE,EXP | Heater unit (LHD) |
| 95431-63J10-000 | VALVE,EXPANSION | Heater unit (LHD) |
| 95461-58J00-000 | PACKING,EVAP LWR | Heater unit (LHD) |
| 95465-62JA0-000 | COVER | Heater unit (LHD) |
| 95465-62JE0-000 | COVER | Heater unit (LHD) |
| 95481-62J10-000 | Hose, drain | Heater unit (LHD) |
| 95536-62JE0-000 | HARNESS,WIRING | Heater unit (LHD) |
| 95541-63J21-000 | THERMISTOR | Heater unit (LHD) |
| 95626-63J20-000 | POWER TRANSISTOR | Heater unit (LHD) |
| 95651-62JK0-000 | ACTUATOR,AIR MIXTURE | Heater unit (LHD) |
| 95652-62JA0-000 | ACTUATOR,FRESH AIR | Heater unit (LHD) |
| 95653-62JK0-000 | ACTUATOR,MODE | Heater unit (LHD) |
| 95675-62JA0-000 | BRACKET | Heater unit (LHD) |
| 95860-62J00-000 | Filter | Heater unit (LHD) |
| 95861-63J01-000 | HOLDER,FLTR | Heater unit (LHD) |
| 95895-50G00-000 | O-RING,D:2.4 ID:10.8 | Heater unit (LHD) |
| 95896-50G00-000 | O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4) | Heater unit (LHD) |
