Search › Model › RW419D
RW419D

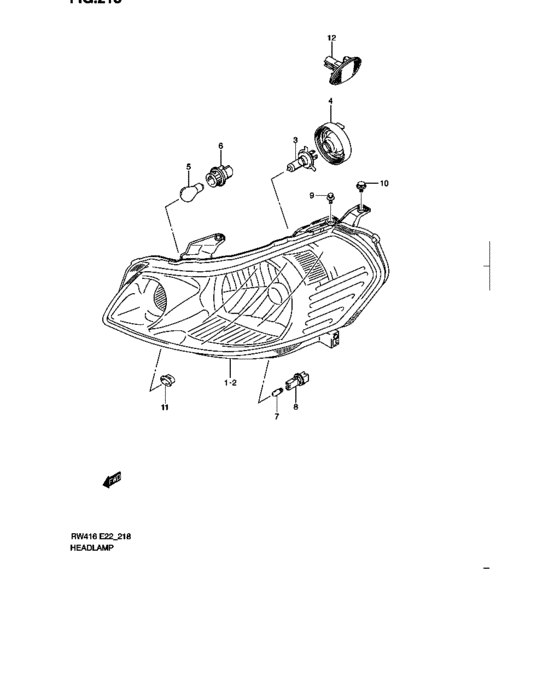

Headlamp (HEADLAMP) 15
| # | OEM | Part name |
|---|---|---|
| 1 | 35120-79J00-000 | Unit, headlamp rh |
| 1 | 35120-79J10-000 | Unit, headlamp rh |
| 2 | 35320-79J00-000 | Unit, headlamp lh |
| 2 | 35320-79J10-000 | Unit, headlamp lh |
| 3 | 09471-12182-000 | BULB(12V60/55W,H4) |
| 4 | 35179-64G00-000 | COVER,SOCKET |
| 5 | 09471-12186-000 | BULB(12V21W,AMBER) |
| 6 | 36118-77A00-000 | SOCKET,TURN LAMP |
| 7 | 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) |
| 7 | 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) |
| 8 | 35118-76F00-000 | SOCKET,POSITION LAMP |
| 9 | 09122-76006-000 | SCREW(6X16) |
| 10 | 09409-08327-000 | CLIP |
| 11 | 35153-75H00-000 | GROMMET,HEADLAMP |
| 12 | 36410-51K00-000 | LAMP ASSY,TURN SIG |
| OEM | Part name | Category |
|---|---|---|
| 09122-76006-000 | SCREW(6X16) | Headlamp (HEADLAMP) |
| 09409-08327-000 | CLIP | Headlamp (HEADLAMP) |
| 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) | Headlamp (HEADLAMP) |
| 09471-12182-000 | BULB(12V60/55W,H4) | Headlamp (HEADLAMP) |
| 09471-12186-000 | BULB(12V21W,AMBER) | Headlamp (HEADLAMP) |
| 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) | Headlamp (HEADLAMP) |
| 35118-76F00-000 | SOCKET,POSITION LAMP | Headlamp (HEADLAMP) |
| 35120-79J00-000 | Unit, headlamp rh | Headlamp (HEADLAMP) |
| 35120-79J10-000 | Unit, headlamp rh | Headlamp (HEADLAMP) |
| 35153-75H00-000 | GROMMET,HEADLAMP | Headlamp (HEADLAMP) |
| 35179-64G00-000 | COVER,SOCKET | Headlamp (HEADLAMP) |
| 35320-79J00-000 | Unit, headlamp lh | Headlamp (HEADLAMP) |
| 35320-79J10-000 | Unit, headlamp lh | Headlamp (HEADLAMP) |
| 36118-77A00-000 | SOCKET,TURN LAMP | Headlamp (HEADLAMP) |
| 36410-51K00-000 | LAMP ASSY,TURN SIG | Headlamp (HEADLAMP) |
