Search › Model › RW419D
RW419D

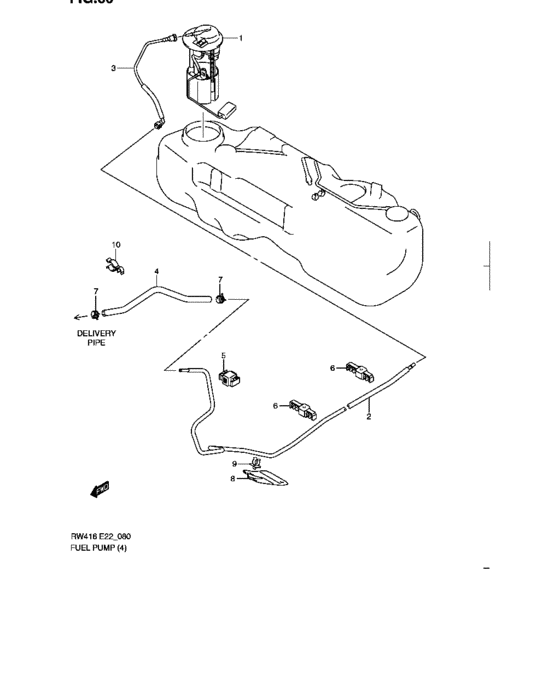

Fuel Pump (TYPE 3:RW415,RW416:RHD) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 15100-79J00-000 | Pump assy, fuel |
| 2 | 15811-79J00-000 | PIPE,FUEL FEED,R |
| 3 | 15812-79J00-000 | Pipe, fuel - Pump to pipe |
| 4 | 15815-55L00-000 | Hose, fuel - Pipe to eng |
| 5 | 15881-54L00-000 | CLAMP ASSY |
| 6 | 15892-65J00-000 | CLAMP,FUEL PIPE |
| 7 | 09401-13419-000 | CLIP |
| 8 | 15873-79J00-000 | COVER,FUEL PIPE |
| 9 | 09403-10324-000 | CLAMP |
| 10 | 09408-00157-000 | CLAMP |
| OEM | Part name | Category |
|---|---|---|
| 09401-13419-000 | CLIP | Fuel Pump (TYPE 3:RW415,RW416:RHD) |
| 09403-10324-000 | CLAMP | Fuel Pump (TYPE 3:RW415,RW416:RHD) |
| 09408-00157-000 | CLAMP | Fuel Pump (TYPE 3:RW415,RW416:RHD) |
| 15100-79J00-000 | Pump assy, fuel | Fuel Pump (TYPE 3:RW415,RW416:RHD) |
| 15811-79J00-000 | PIPE,FUEL FEED,R | Fuel Pump (TYPE 3:RW415,RW416:RHD) |
| 15812-79J00-000 | Pipe, fuel - Pump to pipe | Fuel Pump (TYPE 3:RW415,RW416:RHD) |
| 15815-55L00-000 | Hose, fuel - Pipe to eng | Fuel Pump (TYPE 3:RW415,RW416:RHD) |
| 15873-79J00-000 | COVER,FUEL PIPE | Fuel Pump (TYPE 3:RW415,RW416:RHD) |
| 15881-54L00-000 | CLAMP ASSY | Fuel Pump (TYPE 3:RW415,RW416:RHD) |
| 15892-65J00-000 | CLAMP,FUEL PIPE | Fuel Pump (TYPE 3:RW415,RW416:RHD) |
