Search › Model › RW419D
RW419D

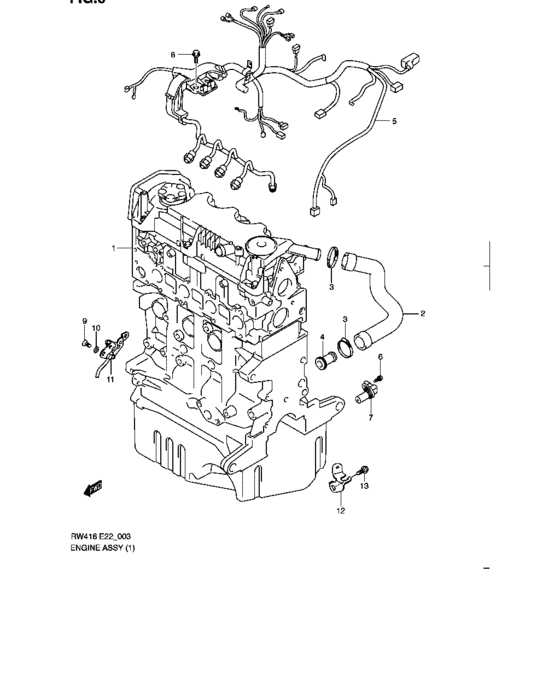

Engine assy (RW419D) 14
| # | OEM | Part name |
|---|---|---|
| 1 | 11000-79J52-000 | Engine assy, stripped |
| 2 | 11193-79J50-000 | Hose, breather |
| 3 | 11194-79J50-000 | Clamp - D:27.5 |
| 4 | 11195-79J50-000 | Union |
| 5 | 36670-79JS1-000 | Harness assy, engine |
| 5 | 36670-79JU0-000 | Harness assy, engine |
| 6 | 11312-79J50-000 | Bolt - 6x16 |
| 7 | 33220-79JR0-000 | Sensor, crank angle |
| 8 | 13912-79J50-000 | Bolt - 8x16 |
| 9 | 33229-79J50-000 | Bolt - 6x12 |
| 10 | 18713-79J50-000 | Washer |
| 11 | 33220-79JU0-000 | Sensor |
| 12 | 33227-79J50-000 | Bracket |
| 13 | 33228-79J50-000 | Bolt - 10x20 |
| OEM | Part name | Category |
|---|---|---|
| 11000-79J52-000 | Engine assy, stripped | Engine assy (RW419D) |
| 11193-79J50-000 | Hose, breather | Engine assy (RW419D) |
| 11194-79J50-000 | Clamp - D:27.5 | Engine assy (RW419D) |
| 11195-79J50-000 | Union | Engine assy (RW419D) |
| 11312-79J50-000 | Bolt - 6x16 | Engine assy (RW419D) |
| 13912-79J50-000 | Bolt - 8x16 | Engine assy (RW419D) |
| 18713-79J50-000 | Washer | Engine assy (RW419D) |
| 33220-79JR0-000 | Sensor, crank angle | Engine assy (RW419D) |
| 33220-79JU0-000 | Sensor | Engine assy (RW419D) |
| 33227-79J50-000 | Bracket | Engine assy (RW419D) |
| 33228-79J50-000 | Bolt - 10x20 | Engine assy (RW419D) |
| 33229-79J50-000 | Bolt - 6x12 | Engine assy (RW419D) |
| 36670-79JS1-000 | Harness assy, engine | Engine assy (RW419D) |
| 36670-79JU0-000 | Harness assy, engine | Engine assy (RW419D) |
