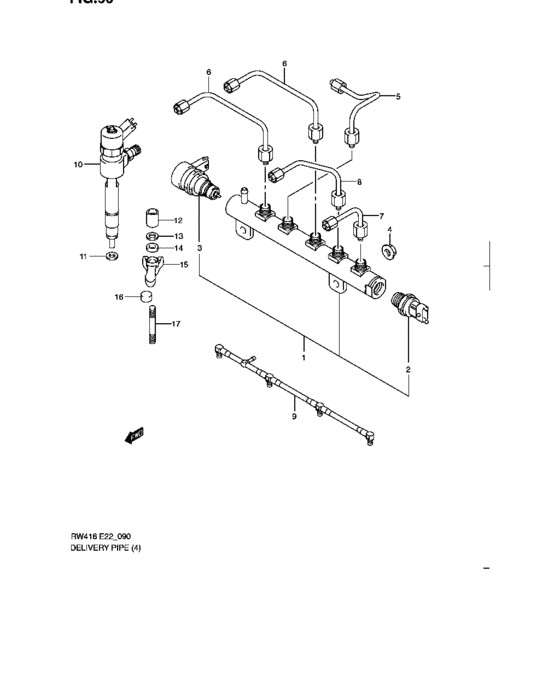

Delivery pipe (RW419D)
22
| # | OEM | Part name |
|---|
| 1 |
15731-79J51-000 |
Pipe assy, fuel delivery |
| 1 |
15731-79J52-000 |
Pipe assy, fuel delivery |
| 2 |
15733-79J51-000 |
Sensor, fuel pressure |
| 3 |
15734-79J50-000 |
Regulator, fuel pressure |
| 4 |
15735-79J50-000 |
Nut - M8 |
| 5 |
15745-79J50-000 |
Pipe, fuel pump to rail |
| 5 |
15745-79J51-000 |
Pipe, fuel pump to rail |
| 6 |
15743-79J50-000 |
Pipe, fuel no.1 |
| 6 |
15743-79J51-000 |
Pipe, fuel no.1 |
| 7 |
15742-79J50-000 |
Pipe, fuel no.2 |
| 7 |
15742-79J51-000 |
Pipe, fuel no.2 |
| 8 |
15741-79J50-000 |
Pipe, fuel no.3 |
| 8 |
15741-79J51-000 |
Pipe, fuel no.3 |
| 9 |
15755-79J50-000 |
Pipe, fuel return |
| 10 |
15710-79J50-000 |
Injector assy, fuel |
| 11 |
15712-79J50-000 |
Gasket, inj |
| 12 |
15717-79J50-000 |
Nut |
| 13 |
15719-79J50-000 |
Washer - 8x16x1.8 |
| 14 |
15718-79J50-000 |
Washer |
| 15 |
15715-79J50-000 |
Bracket, clamp |
| 16 |
15714-79J50-000 |
Pin - 14x8 |
| 17 |
15716-79J50-000 |
Stud bolt |
| OEM |
Part name |
Category |
| 15710-79J50-000 |
Injector assy, fuel |
Delivery pipe (RW419D) |
| 15712-79J50-000 |
Gasket, inj |
Delivery pipe (RW419D) |
| 15714-79J50-000 |
Pin - 14x8 |
Delivery pipe (RW419D) |
| 15715-79J50-000 |
Bracket, clamp |
Delivery pipe (RW419D) |
| 15716-79J50-000 |
Stud bolt |
Delivery pipe (RW419D) |
| 15717-79J50-000 |
Nut |
Delivery pipe (RW419D) |
| 15718-79J50-000 |
Washer |
Delivery pipe (RW419D) |
| 15719-79J50-000 |
Washer - 8x16x1.8 |
Delivery pipe (RW419D) |
| 15731-79J51-000 |
Pipe assy, fuel delivery |
Delivery pipe (RW419D) |
| 15731-79J52-000 |
Pipe assy, fuel delivery |
Delivery pipe (RW419D) |
| 15733-79J51-000 |
Sensor, fuel pressure |
Delivery pipe (RW419D) |
| 15734-79J50-000 |
Regulator, fuel pressure |
Delivery pipe (RW419D) |
| 15735-79J50-000 |
Nut - M8 |
Delivery pipe (RW419D) |
| 15741-79J50-000 |
Pipe, fuel no.3 |
Delivery pipe (RW419D) |
| 15741-79J51-000 |
Pipe, fuel no.3 |
Delivery pipe (RW419D) |
| 15742-79J50-000 |
Pipe, fuel no.2 |
Delivery pipe (RW419D) |
| 15742-79J51-000 |
Pipe, fuel no.2 |
Delivery pipe (RW419D) |
| 15743-79J50-000 |
Pipe, fuel no.1 |
Delivery pipe (RW419D) |
| 15743-79J51-000 |
Pipe, fuel no.1 |
Delivery pipe (RW419D) |
| 15745-79J50-000 |
Pipe, fuel pump to rail |
Delivery pipe (RW419D) |
| 15745-79J51-000 |
Pipe, fuel pump to rail |
Delivery pipe (RW419D) |
| 15755-79J50-000 |
Pipe, fuel return |
Delivery pipe (RW419D) |
