RW416D

Suzuki SX4 · 4,262 parts · 300 categories
RW416D ×

← Back to categories

4,262 items

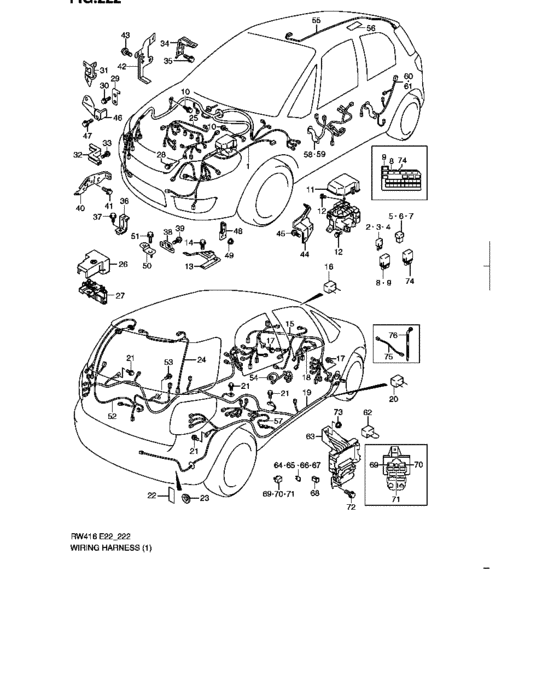

Wiring harness (TYPE 1,2:GASOLINE) 111
#OEMPart name
1 36610-79J20-000 Harness assy, main
1 36610-79J00-000 Harness assy, main
1 36601-79J20-000 Harness assy, main
1 36601-79J00-000 Harness assy, main
2 09481-15501-000 FUSE(15A)
3 09481-20501-000 FUSE(20A)
4 09481-30501-000 FUSE(30A)
5 09481-30401-000 FUSE(30A)
6 09481-40401-000 FUSE(40A)
7 09481-60401-000 FUSE(60A)
8 38860-76F01-000 RELAY ASSY - Relay, starting motor
10 09115-06005-000 BOLT(6X16)
11 36717-79J01-000 Cover, relay box
12 01550-0616A-000 Bolt
13 36614-79J00-000 BRACKET,MAIN HARN
13 36614-79J10-000 BRACKET,ENG HARN
14 01550-0812A-000 Bolt
15 36620-79JP1-000 Harness assy, instrument panel
15 36620-79JS1-000 Harness assy, instrument panel
15 36620-79J81-000 Harness assy, instrument panel
15 36602-79JC1-000 Harness assy, instrument panel
15 36902-79J51-000 Harness assy, instrument panel
15 36602-79J81-000 Harness assy, instrument panel
15 36902-79J81-000 Harness assy, instrument panel
15 36602-79JB1-000 Harness assy, instrument panel
16 36639-74F00-000 DIODE
18 02162-0612A-000 SCREW - Bolt, bracket
19 36630-79JE1-000 Harness assy, floor
19 36630-79JH1-000 Harness assy, floor
19 36630-79JP1-000 Harness assy, floor
19 36903-79JL0-000 Harness assy, floor
19 36903-79JP0-000 Harness assy, floor
19 36903-79JN0-000 Harness assy, floor
19 36903-79JR0-000 Harness assy, floor
19 36603-79JQ1-000 Harness assy, floor
19 36903-79J21-000 Harness assy, floor
19 36603-79JS1-000 Harness assy, floor
19 36903-79J41-000 Harness assy, floor
19 36903-79JA1-000 Harness assy, floor
19 36903-79JG1-000 Harness assy, floor
19 36903-79J11-000 Harness assy, floor
19 36903-79J71-000 Harness assy, floor
19 36903-79JD1-000 Harness assy, floor
19 36903-79JK1-000 Harness assy, floor
19 36603-79J01-000 Harness assy, floor
19 36603-79J21-000 Harness assy, floor
19 36603-79JE1-000 Harness assy, floor
19 36603-79J51-000 Harness assy, floor
19 36603-79JH1-000 Harness assy, floor
22 84761-50X50-000 SEAL,140X190 - Seal, rr defogger wire hole
23 09250-25007-000 CAP(OD:25.0)
24 36690-79J00-000 Harness assy, floor
25 36650-79J00-000 Harness assy, engine
25 36650-79J30-000 Harness assy, engine
26 36694-79J00-000 COVER,BTRY TERMINAL
27 36739-62J00-000 FUSE,BATTERY
28 01550-0612A-000 Bolt
29 36995-77E21-000 BRACKET,ENG HARN
31 36651-79J30-000 BRACKET,ENG HARN
32 36651-63J00-000 BRACKET,ENG HARN T/M
36 36651-85E00-000 Bracket, engine harness block
37 01550-1020A-000 Bolt - Bolt, bal sprocket
38 36652-86G00-000 Bracket, engine harness t/m
40 36651-79J60-000 BRACKET,ENG HARN HOOK
42 36653-80G00-000 BRACKET,O2 CONN
44 36651-79J10-000 BRACKET,ENG HARN
52 36680-79J00-000 Harness assy, back door
52 36680-79J10-000 Harness assy, back door
52 36680-79J20-000 Harness assy, back door
54 36615-79J10-000 Wire, power steering
54 36615-79J00-000 Wire, power steering
55 36820-79J00-000 Wire, room lamp
56 36930-82010-000 COVER,HARNESS - Cover, roof wire
57 36840-79J00-000 Wire, fuel pump
58 36756-79JC0-000 Wire, fr door driver side
58 36756-79JD1-000 Wire, fr door driver side
58 36756-79JA1-000 Wire, fr door driver side
58 36756-79JB1-000 Wire, fr door driver side
58 36756-79J01-000 Wire, fr door driver side
58 36756-79J11-000 Wire, fr door driver side
59 36757-79JC0-000 Wire, fr door passenger side
59 36757-79JD1-000 Wire, fr door passenger side
59 36757-79JA1-000 Wire, fr door passenger side
59 36757-79JB1-000 Wire, fr door passenger side
59 36757-79J01-000 Wire, fr door passenger side
59 36757-79J11-000 Wire, fr door passenger side
60 36751-79J10-000 Wire, rr door rh
60 36751-79J31-000 Wire, rr door rh
60 36751-79J01-000 Wire, rr door rh
60 36751-79J21-000 Wire, rr door rh
61 36751-79JB0-000 Wire, rr door lh
61 36751-79JD1-000 Wire, rr door lh
61 36751-79JA1-000 Wire, rr door lh
61 36751-79JC1-000 Wire, rr door lh
62 36815-79J00-000 Wire, drl short circuit
63 36780-79JB1-000 BOX SET,J/B&BODY CONT MDL
63 36780-79JB2-000 Box set,j/b & body cont
63 36780-79JB3-000 BOX SET,J/B&BCM
63 36780-79JD1-000 Box set,j/b & body cont mdl
63 36780-79JD2-000 BOX SET,J/B&BCM
63 36780-79JH0-000 Box set,j/b
63 36780-79JH1-000 BOX SET,J/B&BCM
63 36780-79J01-000 Box set,j/b & body cont mdl
63 36780-79J02-000 BOX SET,J/B&BCM
63 36780-79J30-000 Box set,j/b
63 36780-79J31-000 BOX SET,J/B&BCM
64 09481-10501-000 FUSE(10A)
72 01550-0816A-000 Bolt - Bolt, rear
73 08316-1008A-000 NUT - Nut, idle gear shaft
75 36691-79J00-000 WIRE,A/B
76 09407-18402-000 CLAMP(L:165) - Clamp (l:165)
