| 02122-0612A-000 |
SCREW |

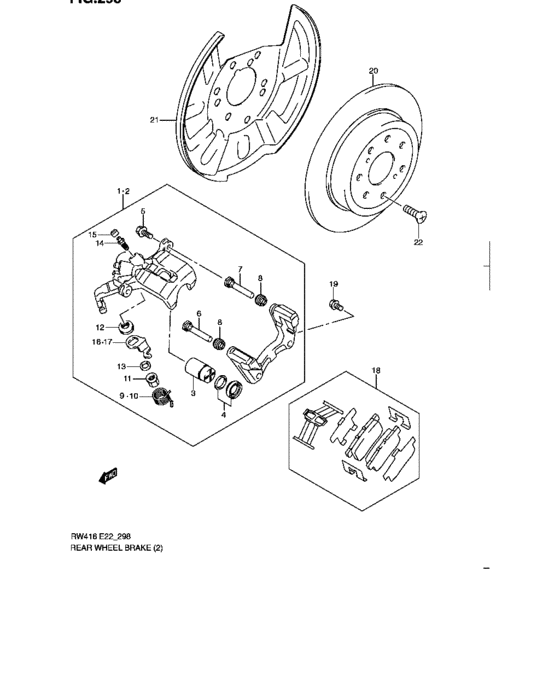

Rear wheel brake (W/REAR DISC BRAKE) |
| 09103-10373-000 |
BOLT(10X25) |
Rear wheel brake (W/REAR DISC BRAKE) |
| 52474-70AA0-000 |
CAP,BLEEDER SCREW |
Rear wheel brake (W/REAR DISC BRAKE) |
| 55151-78G00-000 |
PLUG,BLEEDER |
Rear wheel brake (W/REAR DISC BRAKE) |
| 55401-80J00-999 |
Caliper,rr brake,r |
Rear wheel brake (W/REAR DISC BRAKE) |
| 55401-80J01-999 |
CALIPER,RR BRAKE,R |
Rear wheel brake (W/REAR DISC BRAKE) |
| 55402-80J00-999 |
Caliper,rr brake,l |
Rear wheel brake (W/REAR DISC BRAKE) |
| 55402-80J01-999 |
CALIPER,RR BRAKE,L |
Rear wheel brake (W/REAR DISC BRAKE) |
| 55440-80J00-000 |
PISTON ASSY |
Rear wheel brake (W/REAR DISC BRAKE) |
| 55511-80J00-000 |
LEVER,R |
Rear wheel brake (W/REAR DISC BRAKE) |
| 55512-80J00-000 |
LEVER,L |
Rear wheel brake (W/REAR DISC BRAKE) |
| 55521-80J00-000 |
SPRING,RETURN A |
Rear wheel brake (W/REAR DISC BRAKE) |
| 55522-80J00-000 |
SPRING,RETURN,B |
Rear wheel brake (W/REAR DISC BRAKE) |
| 55532-78G00-000 |
BOLT,8X22 |
Rear wheel brake (W/REAR DISC BRAKE) |
| 55551-78G00-000 |
PIN A |
Rear wheel brake (W/REAR DISC BRAKE) |
| 55552-78G00-000 |
PIN B |
Rear wheel brake (W/REAR DISC BRAKE) |
| 55555-78G00-000 |
COVER,DUST |
Rear wheel brake (W/REAR DISC BRAKE) |
| 55561-78G00-000 |
NUT,PARKING |
Rear wheel brake (W/REAR DISC BRAKE) |
| 55581-78G00-000 |
COVER,SHAFT |
Rear wheel brake (W/REAR DISC BRAKE) |
| 55582-78G00-000 |
WASHER,SPRING |
Rear wheel brake (W/REAR DISC BRAKE) |
| 55611-55L00-000 |
Disc, rear brake |
Rear wheel brake (W/REAR DISC BRAKE) |
| 55621-80J00-000 |
COVER,RR BK DISC DUST |
Rear wheel brake (W/REAR DISC BRAKE) |
| 55800-80J02-000 |
Pad set,fr brake |
Rear wheel brake (W/REAR DISC BRAKE) |
| 55800-80J05-000 |
PAD SET,RR |
Rear wheel brake (W/REAR DISC BRAKE) |
| 55880-80J00-000 |
SEAL SET,PISTON |
Rear wheel brake (W/REAR DISC BRAKE) |
