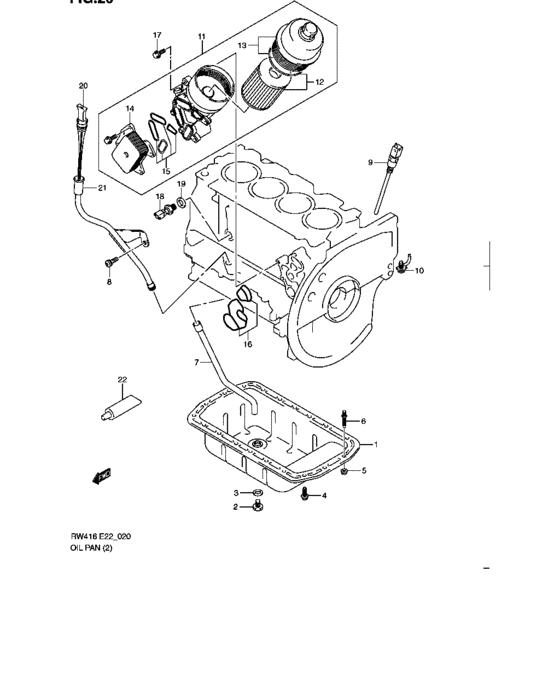

Oil pan (RW416D)
21
| # | OEM | Part name |
|---|
| 1 |
11510-73J01-000 |
Pan, oil |
| 2 |
16590-73J00-000 |
Plug, drain - M10 |
| 3 |
13996-73J00-000 |
Gasket |
| 4 |
16939-69K00-000 |
Bolt - 6x20 |
| 5 |
13966-67G00-000 |
NUT,M6 |
| 6 |
16598-73J00-000 |
Stud bolt - M6 |
| 7 |
16935-73J01-000 |
Guide, level gauge lower |
| 9 |
16940-69K00-000 |
Sensor, oil level |
| 10 |
16591-73J00-000 |
Jet, oil |
| 11 |
16530-73J01-000 |
Case, o/c adapter |
| 12 |
16510-73J02-000 |
Filter assy, oil |
| 13 |
16533-73J00-000 |
Cover, filter |
| 14 |
16600-73J00-000 |
Cooler assy, oil |
| 15 |
16581-73J00-000 |
Gasket, oil cooler |
| 16 |
16539-73J00-000 |
Gasket, adapter case |
| 17 |
15422-73J00-000 |
Bolt - 6x28 |
| 18 |
16582-67G00-000 |
SWITCH,OIL PRESSURE |
| 19 |
37822-73J00-000 |
Gasket |
| 20 |
16910-69K02-000 |
Gauge, oil level |
| 21 |
16930-69K00-000 |
Guide, oil level gauge |
| 22 |
16588-66G00-000 |
Gasket |
| OEM |
Part name |
Category |
| 11510-73J01-000 |
Pan, oil |
Oil pan (RW416D) |
| 13966-67G00-000 |
NUT,M6 |
Oil pan (RW416D) |
| 13996-73J00-000 |
Gasket |
Oil pan (RW416D) |
| 15422-73J00-000 |
Bolt - 6x28 |
Oil pan (RW416D) |
| 16510-73J02-000 |
Filter assy, oil |
Oil pan (RW416D) |
| 16530-73J01-000 |
Case, o/c adapter |
Oil pan (RW416D) |
| 16533-73J00-000 |
Cover, filter |
Oil pan (RW416D) |
| 16539-73J00-000 |
Gasket, adapter case |
Oil pan (RW416D) |
| 16581-73J00-000 |
Gasket, oil cooler |
Oil pan (RW416D) |
| 16582-67G00-000 |
SWITCH,OIL PRESSURE |
Oil pan (RW416D) |
| 16588-66G00-000 |
Gasket |
Oil pan (RW416D) |
| 16590-73J00-000 |
Plug, drain - M10 |
Oil pan (RW416D) |
| 16591-73J00-000 |
Jet, oil |
Oil pan (RW416D) |
| 16598-73J00-000 |
Stud bolt - M6 |
Oil pan (RW416D) |
| 16600-73J00-000 |
Cooler assy, oil |
Oil pan (RW416D) |
| 16910-69K02-000 |
Gauge, oil level |
Oil pan (RW416D) |
| 16930-69K00-000 |
Guide, oil level gauge |
Oil pan (RW416D) |
| 16935-73J01-000 |
Guide, level gauge lower |
Oil pan (RW416D) |
| 16939-69K00-000 |
Bolt - 6x20 |
Oil pan (RW416D) |
| 16940-69K00-000 |
Sensor, oil level |
Oil pan (RW416D) |
| 37822-73J00-000 |
Gasket |
Oil pan (RW416D) |
