RW416D

Suzuki SX4 · 4,262 parts · 300 categories

4,262 items

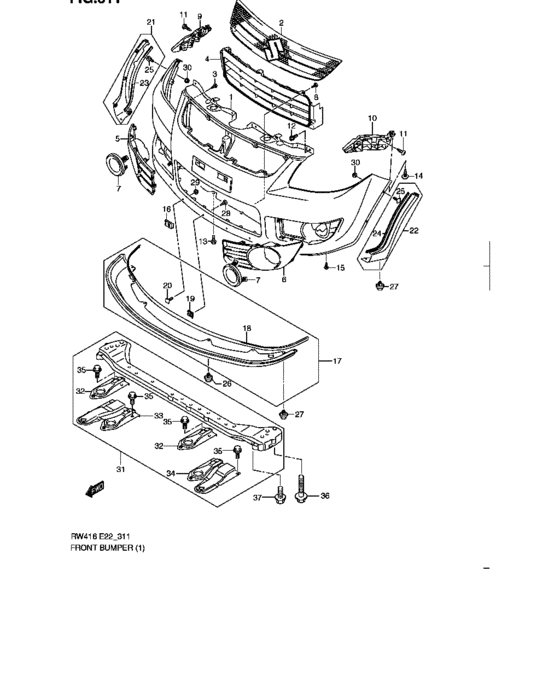

Front bumper (TYPE 1,2) 33

#	OEM	Part name
1	71711-79J10-799	Bumper, front - Primary coat
2	71741-79J00-0CB	Grille, radiator upper - Black
3	03541-0412A-000	SCREW - Screw, speedometer
4	71721-79J00-5PK	Grille, radiator lower - Black
5	71751-79J00-5PK	Bezel, front fog lamp rh - Black
6	71752-79J00-5PK	Bezel, front fog lamp lh - Black
7	71753-79J00-5PK	COVER,FR FOG LAMP
9	71731-79J00-000	Holder, fr bumper side rh
10	71732-79J00-000	Holder, fr bumper side lh
11	03541-0512A-000	SCREW
12	02162-0616B-000	SCREW - Bolt, adjust
14	09136-05057-000	Screw, fr turnsignal (5x20)
14	09136-05068-000	SCREW(5X20)
15	03241-0516A-000	SCREW
16	09148-06021-000	NUT - Nut, air cleaner
17	71760-79J00-5PK	Extension, fr bumper center - Black
18	71762-79J00-5PK	Protector - Black
19	09148-05047-000	NUT
20	77225-78F00-000	BOLT,BUMPER EXT
21	71770-79J00-5PK	Extension, fr bumper side rh - Black
22	71780-79J00-5PK	Extension, fr bumper side lh - Black
23	71772-79J00-5PK	Protector, rh - Black
24	71782-79J00-5PK	Protector, lh - Black
26	09409-07332-000	CLIP
29	08316-1005A-000	NUT
31	71100-79J03-000	Crossmember, front lower
31	71100-79J12-000	Crossmember, front lower
32	71131-79J00-000	BRACKET,RDTR
33	71130-79J00-000	Bracket, radiator rh
34	71140-79J00-000	Bracket, radiator lh
35	01550-0816A-000	Bolt - Bolt, rear
36	09118-10058-000	BOLT(10X50)
37	01551-1025A-000	Bolt

OEM	Part name	Category
01550-0816A-000	Bolt - Bolt, rear	Front bumper (TYPE 1,2)
01551-1025A-000	Bolt	Front bumper (TYPE 1,2)
02162-0616B-000	SCREW - Bolt, adjust	Front bumper (TYPE 1,2)
03241-0516A-000	SCREW	Front bumper (TYPE 1,2)
03541-0412A-000	SCREW - Screw, speedometer	Front bumper (TYPE 1,2)
03541-0512A-000	SCREW	Front bumper (TYPE 1,2)
08316-1005A-000	NUT	Front bumper (TYPE 1,2)
09118-10058-000	BOLT(10X50)	Front bumper (TYPE 1,2)
09136-05057-000	Screw, fr turnsignal (5x20)	Front bumper (TYPE 1,2)
09136-05068-000	SCREW(5X20)	Front bumper (TYPE 1,2)
09148-05047-000	NUT	Front bumper (TYPE 1,2)
09148-06021-000	NUT - Nut, air cleaner	Front bumper (TYPE 1,2)
09409-07332-000	CLIP	Front bumper (TYPE 1,2)
71100-79J03-000	Crossmember, front lower	Front bumper (TYPE 1,2)
71100-79J12-000	Crossmember, front lower	Front bumper (TYPE 1,2)
71130-79J00-000	Bracket, radiator rh	Front bumper (TYPE 1,2)
71131-79J00-000	BRACKET,RDTR	Front bumper (TYPE 1,2)
71140-79J00-000	Bracket, radiator lh	Front bumper (TYPE 1,2)
71711-79J10-799	Bumper, front - Primary coat	Front bumper (TYPE 1,2)
71721-79J00-5PK	Grille, radiator lower - Black	Front bumper (TYPE 1,2)
71731-79J00-000	Holder, fr bumper side rh	Front bumper (TYPE 1,2)
71732-79J00-000	Holder, fr bumper side lh	Front bumper (TYPE 1,2)
71741-79J00-0CB	Grille, radiator upper - Black	Front bumper (TYPE 1,2)
71751-79J00-5PK	Bezel, front fog lamp rh - Black	Front bumper (TYPE 1,2)
71752-79J00-5PK	Bezel, front fog lamp lh - Black	Front bumper (TYPE 1,2)
71753-79J00-5PK	COVER,FR FOG LAMP	Front bumper (TYPE 1,2)
71760-79J00-5PK	Extension, fr bumper center - Black	Front bumper (TYPE 1,2)
71762-79J00-5PK	Protector - Black	Front bumper (TYPE 1,2)
71770-79J00-5PK	Extension, fr bumper side rh - Black	Front bumper (TYPE 1,2)
71772-79J00-5PK	Protector, rh - Black	Front bumper (TYPE 1,2)
71780-79J00-5PK	Extension, fr bumper side lh - Black	Front bumper (TYPE 1,2)
71782-79J00-5PK	Protector, lh - Black	Front bumper (TYPE 1,2)
77225-78F00-000	BOLT,BUMPER EXT	Front bumper (TYPE 1,2)
